Introduction

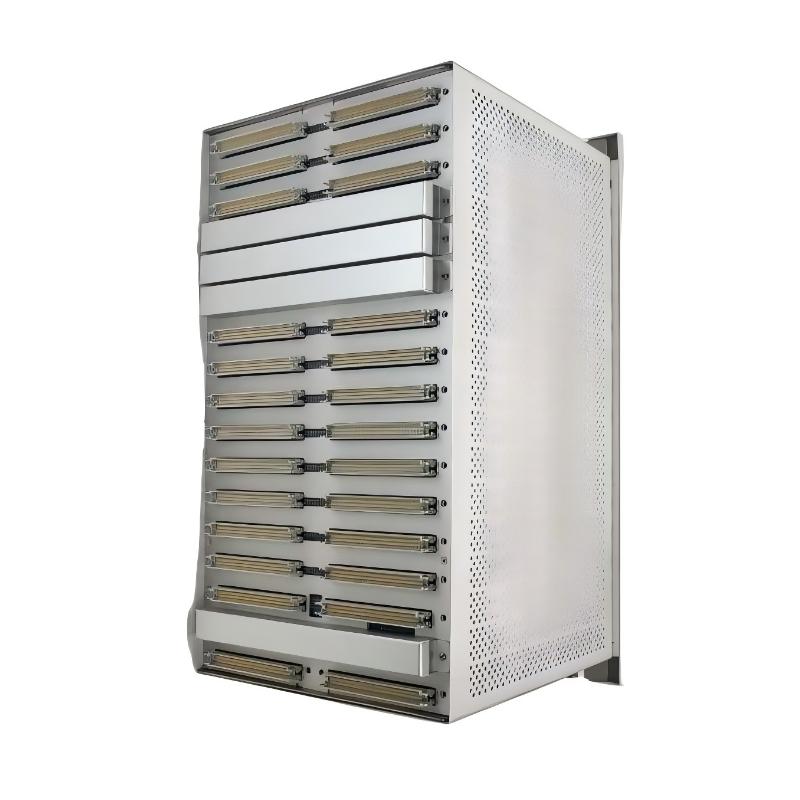

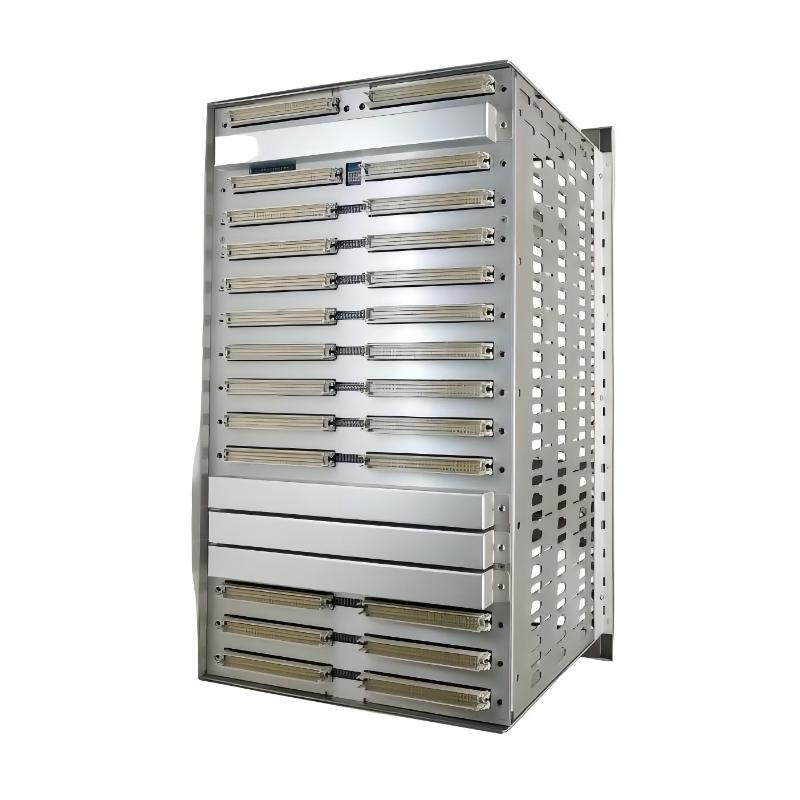

The Bently Nevada 3500/05-01-02-RU-00-01 System Rack is a high-capacity, industrial-grade solution for comprehensive machinery monitoring. Its 14-module configuration and durable design ensure that operators can integrate multiple monitoring modules efficiently while maintaining system reliability. Ideal for critical industrial processes, this rack safeguards equipment, improves operational awareness, and supports long-term maintenance strategies.

Technical Specifications

Specification	Details
Rack Size	19-inch standard
Module Slots	14
Weight	4.5 kg
Compatibility	3500/05 series modules
Mounting Type	Rack or cabinet mountable
Operating Temperature	-20°C to 70°C
LED Indicators	Module status, power, fault
Construction	Industrial-grade metal, vibration-resistant
Redundancy Support	Compatible with redundant configurations
Compliance	CE and industry standards

Recommended Related Models

Bently Nevada 3500/22-01-01-00-00-01 Vibration Monitor Module
Bently Nevada 3500/33-01-00-00-00-01 Proximity Probe Interface
Bently Nevada 3500/05-01-02-R1-00-01 Extended System Rack

Popular Related Models

Bently Nevada 3500/25-01-01-00-00-01 Process Monitoring Module
Bently Nevada 3500/15-01-01-00-00-01 High-Speed Shaft Monitor
Bently Nevada 3500/05-01-02-R0-00-02 System Rack (alternate configuration)

Applications

The Bently Nevada 3500/05 System Rack is designed for advanced machinery protection and monitoring. Its robust 14-slot configuration makes it ideal for:

Large-scale turbines, compressors, and pumps
Critical rotating equipment in power plants
Petrochemical and refinery machinery monitoring
Industrial plants requiring multi-module integration
Systems needing continuous condition monitoring and fault prevention

Advantages

High Module Capacity: 14 module slots accommodate a wide range of monitoring and control modules.
Durable Construction: Built to endure industrial vibration, temperature swings, and electrical interference.
19-Inch Standard Rack: Fits industry-standard enclosures for easy integration.
Front-Accessible Modules: Simplifies maintenance, inspection, and replacement.
Reliable System Monitoring: Provides stable support for real-time machinery protection.

Technical FAQs

Q: How many modules does the rack support?
A: It supports up to 14 modules.
Q: Is this rack compatible with all 3500/05 modules?
A: Yes, it is fully compatible with the entire 3500/05 series.
Q: Can it operate in harsh industrial conditions?
A: Yes, the rack is designed for vibration and temperature tolerance typical of industrial environments.
Q: What is the weight of this system rack?
A: The rack weighs 4.5 kg.
Q: What are the physical dimensions?
A: Designed for a 19-inch standard rack; height and depth follow 3500/05 modular specifications.
Q: Does it support redundant configurations?
A: Yes, it can be used in systems designed for redundancy and critical operation.
Q: Are indicators included on the rack?
A: Yes, it supports LED status indicators for modules and power conditions.
Q: How is maintenance performed?
A: Front-access design allows quick module replacement and routine inspections.
Q: Can it be expanded in the future?
A: Yes, modular design allows future expansions by adding compatible modules.
Q: What is the expected service life?
A: Typically exceeds 15 years with proper environmental maintenance.
