Introduction

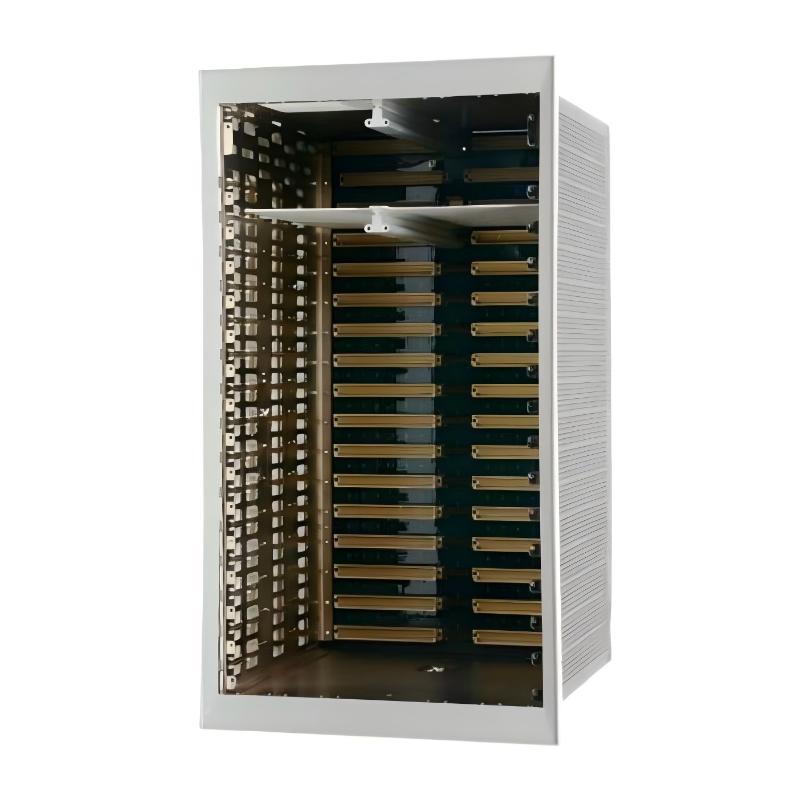

The Bently Nevada 3500/05-01-03-05-00-01 System Rack is a high-capacity, industrial-grade solution designed for reliable machinery monitoring. Its 14-module 19-inch configuration provides flexibility for multiple monitoring modules, enabling precise real-time data acquisition and predictive maintenance. Engineered for demanding industrial environments, this rack enhances system reliability, reduces unplanned downtime, and simplifies long-term maintenance strategies.

Technical Specifications

Specification	Details
Rack Size	19-inch standard
Module Slots	14
Weight	4.5 kg
Compatibility	3500/05 series modules
Mounting Type	Rack or cabinet mountable
Operating Temperature	-20°C to 70°C
LED Indicators	Module status, power, fault
Construction	Industrial-grade metal, vibration-resistant
Redundancy Support	Compatible with redundant configurations
Compliance	CE and industrial standards

Recommended Related Models

Bently Nevada 3500/22-01-01-00-00-01 Vibration Monitor Module
Bently Nevada 3500/33-01-00-00-00-01 Proximity Probe Interface
Bently Nevada 3500/05-01-02-RU-00-01 System Rack

Popular Related Models

Bently Nevada 3500/25-01-01-00-00-01 Process Monitoring Module
Bently Nevada 3500/15-01-01-00-00-01 High-Speed Shaft Monitor
Bently Nevada 3500/05-01-02-R0-00-02 System Rack (alternate configuration)

Applications

The Bently Nevada 3500/05 System Rack is purpose-built for comprehensive machinery protection and monitoring. Its 14-slot 19-inch configuration makes it ideal for:

Turbines, compressors, and pumps in power and industrial plants
Petrochemical, refinery, and process industry equipment
Large-scale rotating machinery requiring multi-module monitoring
Continuous machinery condition monitoring for predictive maintenance
Critical systems demanding high reliability and uptime

Advantages

High Module Capacity: 14 slots provide flexibility for various monitoring modules.
Industrial-Grade Durability: Designed to withstand vibration, temperature variations, and electrical interference.
Standard 19-Inch Rack: Easy integration into conventional control cabinets.
Front-Accessible Modules: Simplifies maintenance, inspection, and replacement.
Reliable Performance: Supports real-time monitoring to prevent equipment failures and reduce downtime.

Technical FAQs

Q: How many modules can the rack support?
A: It supports up to 14 modules.
Q: Is this system rack compatible with all 3500/05 modules?
A: Yes, it fully supports the 3500/05 series.
Q: What are the rack’s dimensions and weight?
A: Standard 19-inch rack with 14 module slots; weight: 4.5 kg.
Q: Can it operate in harsh industrial environments?
A: Yes, designed for vibration and temperature tolerance typical of industrial operations.
Q: Are diagnostic indicators included?
A: Yes, the rack supports LED indicators for module status and power conditions.
Q: Can it be used in redundant system configurations?
A: Yes, compatible with dual-redundant setups for critical operations.
Q: How is maintenance performed?
A: Front-access design allows easy module replacement and inspection.
Q: Is future expansion possible?
A: Yes, modular design enables adding additional compatible modules.
Q: What is the expected service life?
A: Typically exceeds 15 years with proper maintenance.
Q: Can this rack be installed in standard control cabinets?
A: Yes, its 19-inch configuration fits industry-standard cabinets.
