Introduction

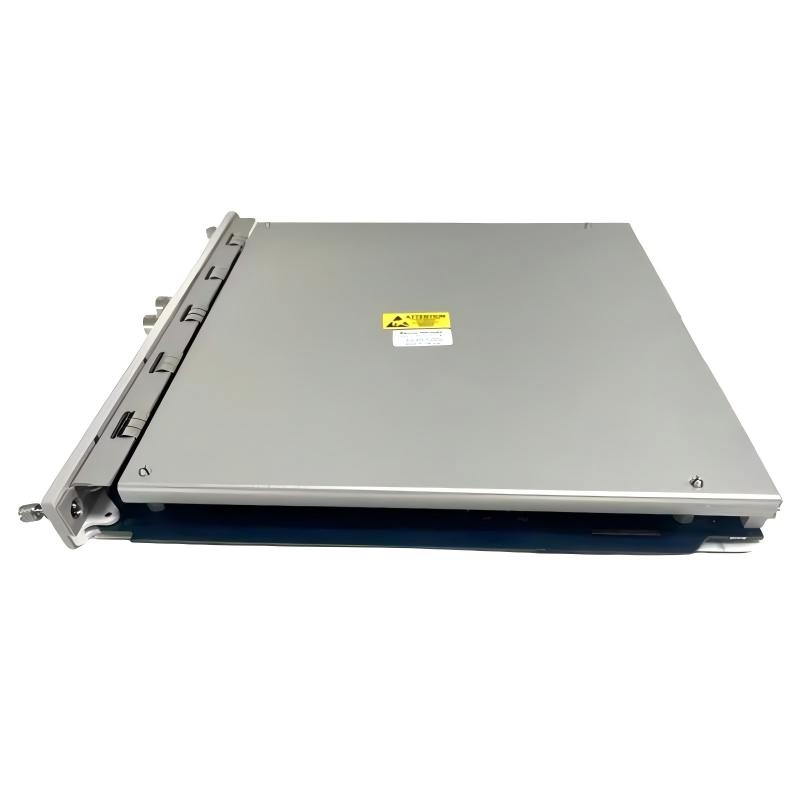

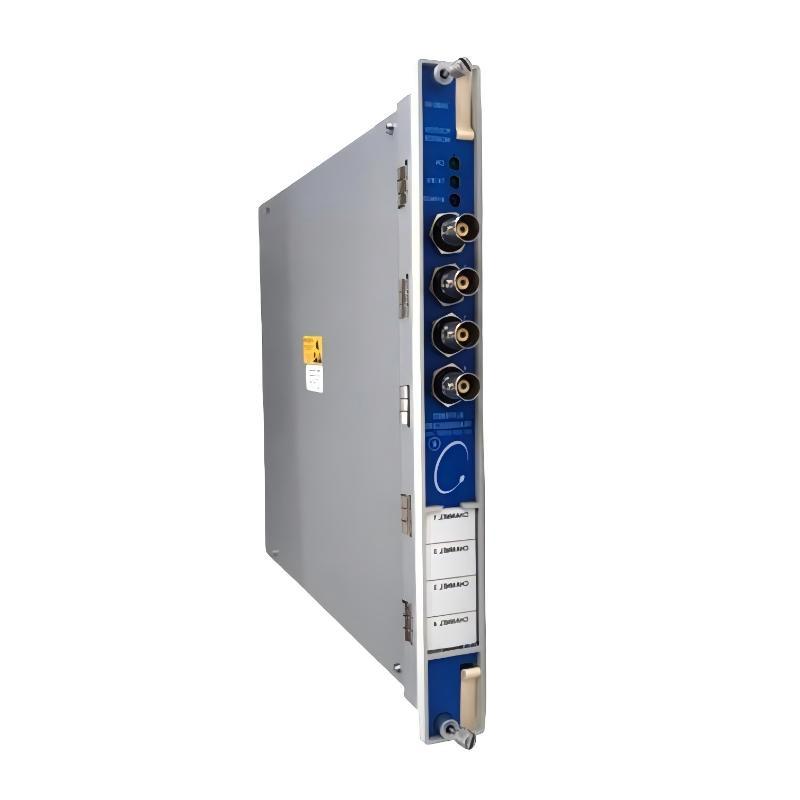

The Bently Nevada 3500/50 288062-02 Tachometer Module is engineered for precise rotational speed measurement in industrial machinery. With a compact form factor and robust design, it integrates seamlessly into the 3500/50 monitoring system. Ideal for turbines, compressors, and high-speed motors, this module provides reliable RPM data, enabling predictive maintenance, enhancing machinery safety, and reducing downtime.

Technical Specifications

Specification	Details
Dimensions	241.3 × 24.4 × 241.8 mm
Weight	0.82 kg
Module Type	Tachometer Module
Compatible System	Bently Nevada 3500/50
Operating Temperature	-20°C to 70°C
Mounting Type	3500/50 standard rack mount
Signal Output	Pulse-based tachometer signals
Construction	Industrial-grade metal
Redundancy Support	Supports redundant configurations
Compliance	CE and industrial standards

Recommended Related Models

Bently Nevada 3500/22-01-01-00-00-01 Vibration Monitor Module
Bently Nevada 3500/33-01-00-00-00-01 Proximity Probe Interface
Bently Nevada 3500/50 System Rack

Popular Related Models

Bently Nevada 3500/25-01-01-00-00-01 Process Monitoring Module
Bently Nevada 3500/15-01-01-00-00-01 High-Speed Shaft Monitor
Bently Nevada 3500/50 Tachometer Expansion Modules

Applications

The Bently Nevada 3500/50 288062-02 Tachometer Module is designed for precise rotational speed measurement in demanding industrial environments. Typical applications include:

Steam and gas turbines
High-speed compressors and pumps
Large motors and generators
Critical rotating machinery in power and petrochemical plants
Systems requiring real-time RPM feedback for predictive maintenance

Advantages

Precision Speed Monitoring: Provides accurate and reliable RPM measurements for critical machinery.
Enhanced Signal Integrity: Robust design ensures stable tachometer signals even in electrically noisy environments.
Compact Yet High-Performance: Slim 24.4 mm profile fits standard system racks, saving space without compromising functionality.
Durable Construction: Industrial-grade materials resist vibration, temperature variations, and other harsh conditions.
Improves Operational Reliability: Supports early detection of rotational issues, minimizing downtime and maintenance costs.

Technical FAQs

Q: What are the module’s dimensions and weight?
A: 241.3 × 24.4 × 241.8 mm; weight: 0.82 kg.
Q: Is it compatible with all Bently Nevada 3500/50 systems?
A: Yes, fully compatible with the 3500/50 monitoring system series.
Q: What type of signal output does the module provide?
A: Pulse-based tachometer signals suitable for real-time RPM monitoring.
Q: Can it operate in harsh industrial environments?
A: Yes, designed to tolerate vibration, temperature fluctuations, and electrical interference.
Q: Does it support redundant configurations?
A: Yes, it can be integrated into dual-redundant systems for critical machinery monitoring.
Q: How is maintenance performed?
A: Front-access installation allows easy inspection, replacement, and servicing.
Q: Can it be installed in standard 3500/50 racks?
A: Yes, its compact profile and standard mounting dimensions ensure seamless installation.
Q: What is the expected service life?
A: Typically exceeds 10 years with proper maintenance.
Q: Are diagnostic indicators included?
A: Yes, module status can be monitored via system rack indicators.
Q: What types of machinery are best suited for this module?
A: High-speed rotating equipment like turbines, compressors, and generators where accurate RPM monitoring is critical.
