Introduction

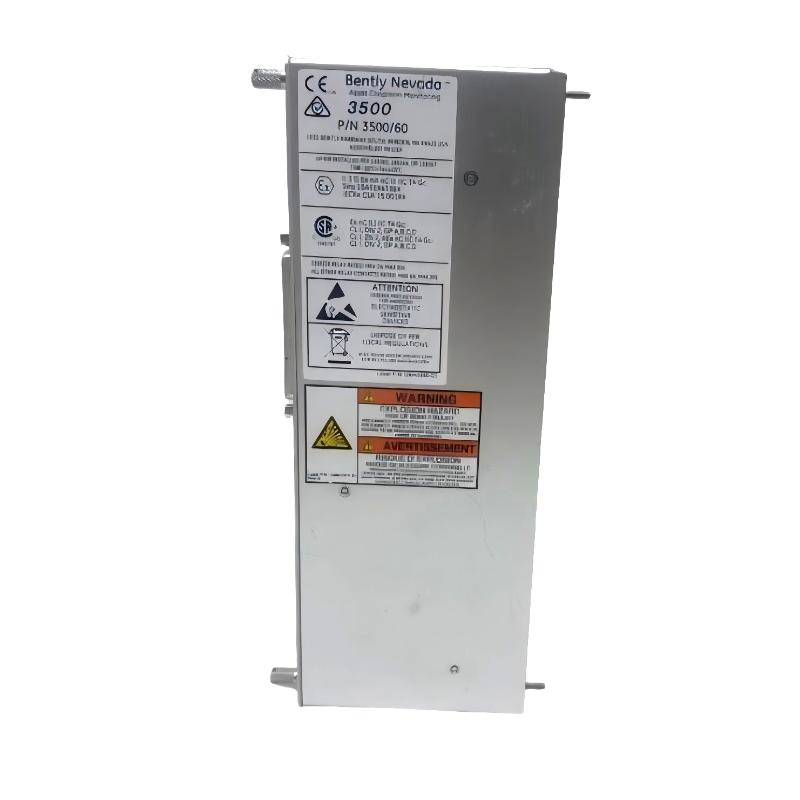

The Bently Nevada 3500/60 133827-01 RTD/TC Non-isolated I/O Module is engineered for precise temperature and process monitoring in industrial applications. Compact and robust, it integrates seamlessly into 3500/60 monitoring systems, delivering accurate RTD and thermocouple data for predictive maintenance, machinery protection, and operational efficiency. Ideal for turbines, compressors, and critical motors, this module supports early detection of temperature anomalies, safeguarding equipment and ensuring continuous operation.

Technical Specifications

Specification	Details
Dimensions	241.3 × 24.4 × 99.1 mm
Weight	0.45 kg
Module Type	RTD/TC Non-isolated I/O Module
Compatible System	Bently Nevada 3500/60
Operating Temperature	-20°C to 70°C
Mounting Type	3500/60 standard rack mount
Input Type	RTD and Thermocouple (TC)
Signal Isolation	Non-isolated
Construction	Industrial-grade metal
Redundancy Support	Supports redundant configurations
Compliance	CE and industrial standards

Recommended Related Models

Bently Nevada 3500/62-01-01-00-00-01 Temperature Monitor Module
Bently Nevada 3500/60 System Rack
Bently Nevada 3500/22 Vibration Monitor Module

Popular Related Models

Bently Nevada 3500/25 Process Monitoring Module
Bently Nevada 3500/33 Proximity Probe Interface
Bently Nevada 3500/60 RTD/TC Expansion Modules

Applications

The Bently Nevada 3500/60 133827-01 RTD/TC Non-isolated I/O Module is designed for precise temperature and process monitoring in industrial systems. Typical applications include:

Turbine and generator monitoring in power plants
Industrial process control in petrochemical and chemical facilities
Temperature measurement for motors, compressors, and pumps
Systems requiring integration of RTD and thermocouple inputs for predictive maintenance
Continuous machinery condition monitoring in demanding industrial environments

Advantages

Flexible I/O Capability: Supports both RTD and thermocouple inputs for versatile temperature monitoring.
Compact and Lightweight: Slim form factor allows easy integration into standard 3500/60 racks.
Reliable Data Acquisition: Non-isolated design ensures fast response and high-accuracy measurements.
Durable Construction: Industrial-grade materials withstand vibration, temperature fluctuations, and electrical noise.
Enhanced Operational Safety: Real-time monitoring supports predictive maintenance and reduces unplanned downtime.

Technical FAQs

Q: What are the module’s dimensions and weight?
A: 241.3 × 24.4 × 99.1 mm; weight: 0.45 kg.
Q: What types of inputs does the module support?
A: RTD (Resistance Temperature Detectors) and Thermocouple (TC) inputs.
Q: Is this module compatible with all 3500/60 systems?
A: Yes, fully compatible with Bently Nevada 3500/60 monitoring systems.
Q: Can it operate in harsh industrial environments?
A: Yes, designed to handle vibration, temperature fluctuations, and electrical interference.
Q: Does it support redundant configurations?
A: Yes, it can be used in systems designed for redundancy for critical monitoring.
Q: How is maintenance performed?
A: Front-access design allows easy inspection, replacement, and servicing.
Q: What is the expected service life?
A: Typically exceeds 10 years with proper maintenance.
Q: Can it be installed in standard 3500/60 racks?
A: Yes, its slim dimensions ensure easy integration.
Q: Are diagnostic indicators included?
A: Yes, status indicators can be monitored through the system rack’s LED panel.
Q: What types of machinery are best suited for this module?
A: Turbines, compressors, pumps, and other industrial equipment requiring accurate temperature monitoring.
