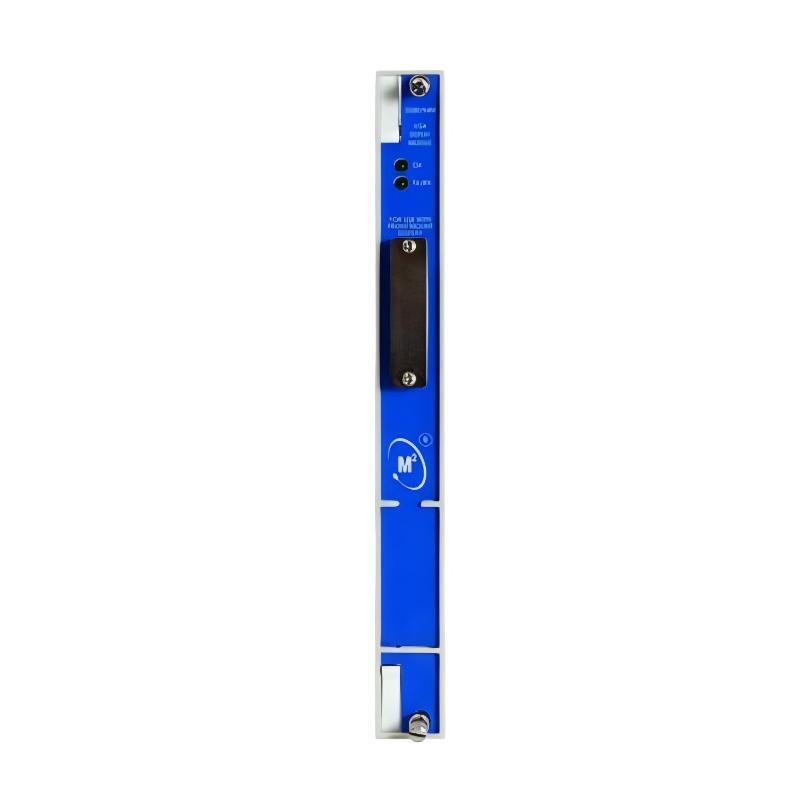

The Bently Nevada 3500/94 145988-01 VGA Display Module is a precision-engineered component that delivers clear, real-time visualization of machinery condition data. Compact, robust, and reliable, it integrates seamlessly into 3500/94 monitoring systems, providing operators with actionable insights for predictive maintenance and operational efficiency. Ideal for turbines, compressors, and other critical rotating equipment, this module enhances situational awareness and supports proactive maintenance strategies.

Technical Specifications

Specification	Details
Dimensions	241.3 × 24.4 × 241.8 mm
Weight	0.73 kg
Module Type	VGA Display Module
Compatible System	Bently Nevada 3500/94
Operating Temperature	-20°C to 70°C
Mounting Type	3500/94 standard rack mount
Interface Type	VGA Display
Construction	Industrial-grade metal
Redundancy Support	Supports redundant configurations
Compliance	CE and industrial standards
