Introduction

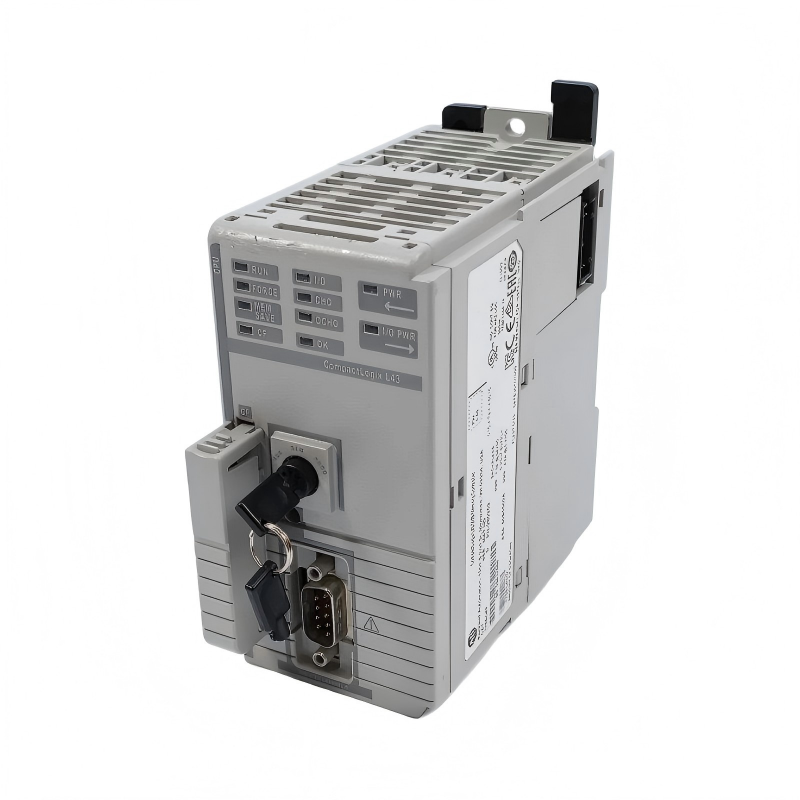

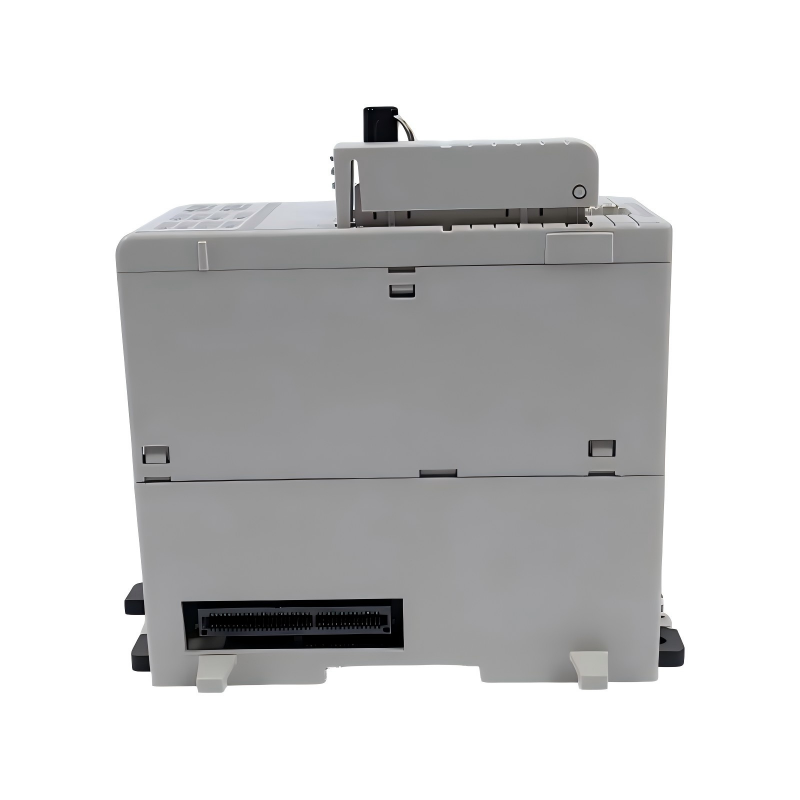

The Allen-Bradley 1768-L43 CompactLogix L45 Processor delivers reliable, medium-performance automation control for industrial applications. Its compact size, flexible communication options, and robust construction make it ideal for machine control, process automation, and supervisory monitoring. The processor ensures efficient performance while enabling scalable and flexible system expansion.

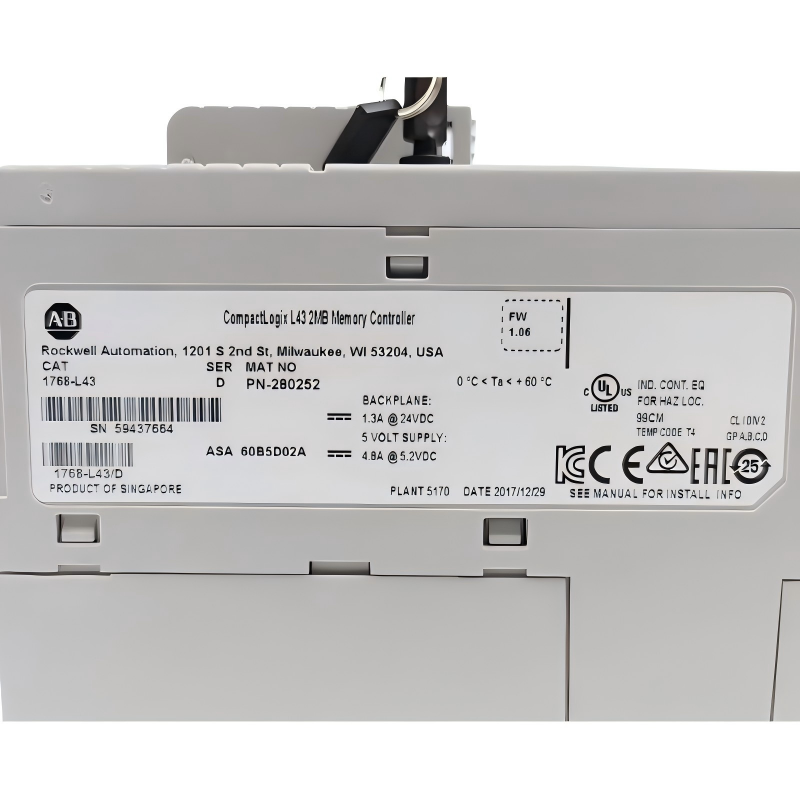

Technical Specifications

Feature	Specification
Model Number	1768-L43
Module Type	CompactLogix L45 Processor
Dimensions (L x W x H)	131.6 × 67.4 × 121.8 mm
Weight	0.35 kg (0.77 lb)
Operating Temperature	0°C to 60°C
Communication Ports	EtherNet/IP, Serial
Memory	Onboard non-volatile storage
I/O Expansion	Local and remote I/O modules

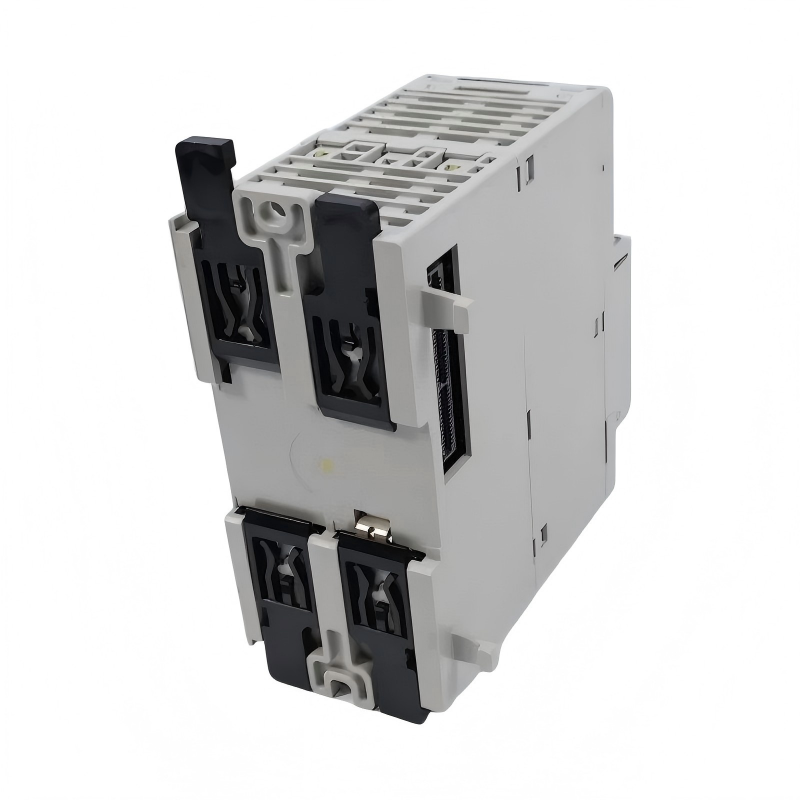

Mounting	DIN rail or panel mounting

Applications

The Allen-Bradley 1768-L43 CompactLogix L45 Processor is designed for medium-complexity industrial automation tasks. Its key applications include:

Real-time control of machines and manufacturing processes
Integration with local and remote I/O modules for scalable automation
Data collection and supervisory control in industrial plants
Communication with HMIs, SCADA, and networked controllers via EtherNet/IP

This processor is ideal for engineers seeking reliable performance in compact automation systems.

Advantages

High-Performance Processing: Efficiently handles medium-complexity control applications.
Flexible Communication: Supports EtherNet/IP and serial connections for seamless networking.
Compact and Lightweight: Small footprint makes it ideal for space-constrained control panels.
Scalable I/O: Compatible with a wide range of local and remote I/O modules.
Industrial Reliability: Designed for continuous operation in demanding industrial environments.

Technical FAQs

Which programming software is required?
Studio 5000 Logix Designer is used to program the L43 processor.
Does it support EtherNet/IP?
Yes, it includes an integrated EtherNet/IP port for networked applications.
Can it interface with remote I/O modules?
Yes, it supports both local and remote I/O for scalable automation solutions.
What is the operating temperature range?
0°C to 60°C (32°F to 140°F).
Does it include onboard memory?
Yes, it has non-volatile memory for program and data storage.
Is it suitable for continuous industrial operation?
Yes, it is rated for 24/7 operation in industrial environments.
Can it handle analog and digital signals?
Yes, with appropriate I/O modules, it supports both analog and digital I/O.
Does it provide diagnostic indicators?
Yes, LEDs indicate CPU status, I/O activity, and communication status.
Is it compatible with other CompactLogix devices?
Yes, it integrates seamlessly with other 1768-series modules.
Can it be used in high-availability systems?
Yes, it can be deployed with redundant network architectures for increased reliability.
