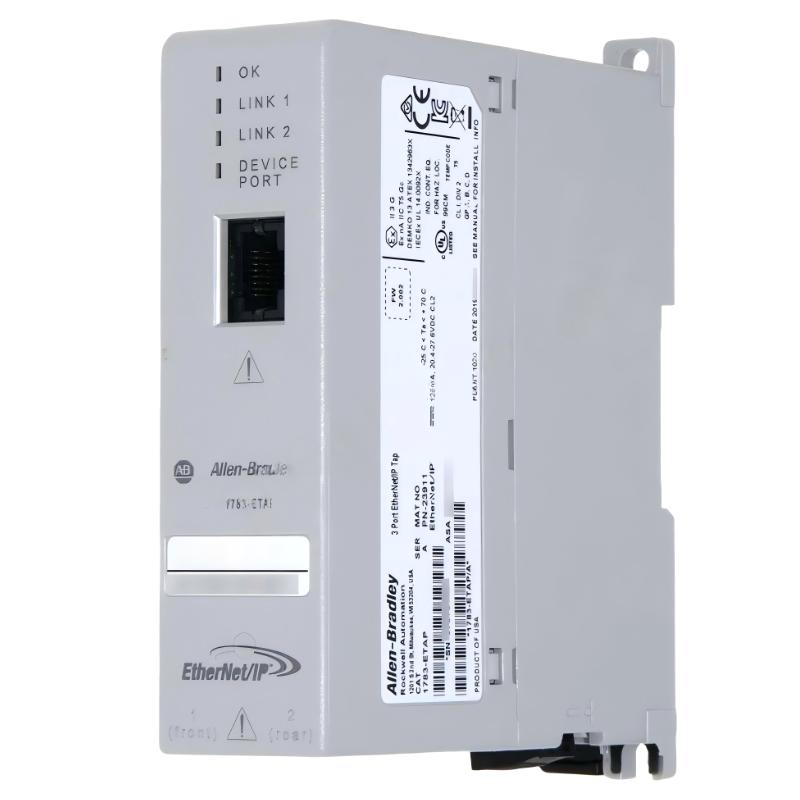

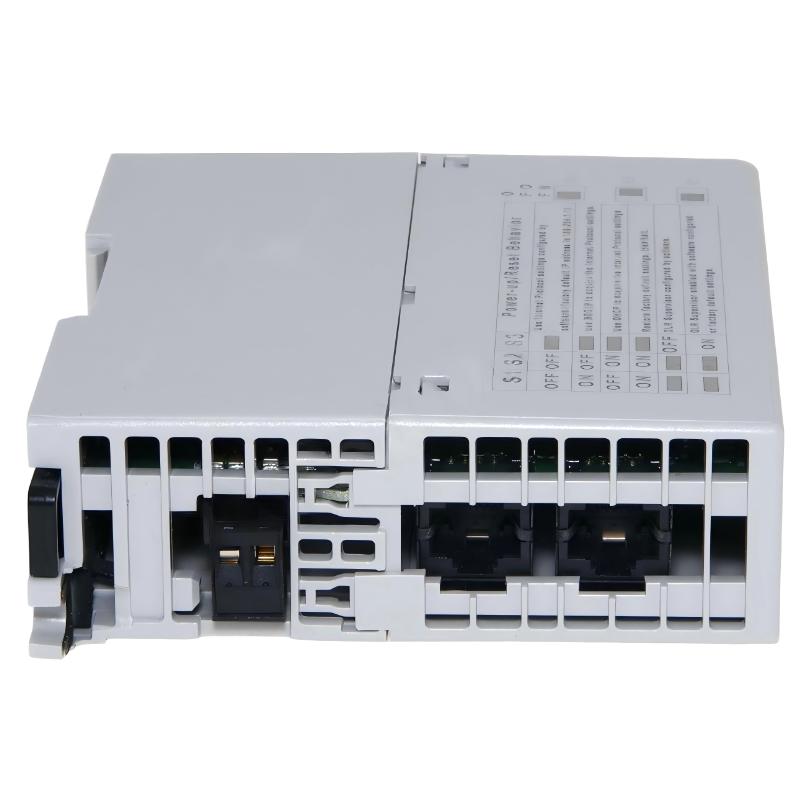

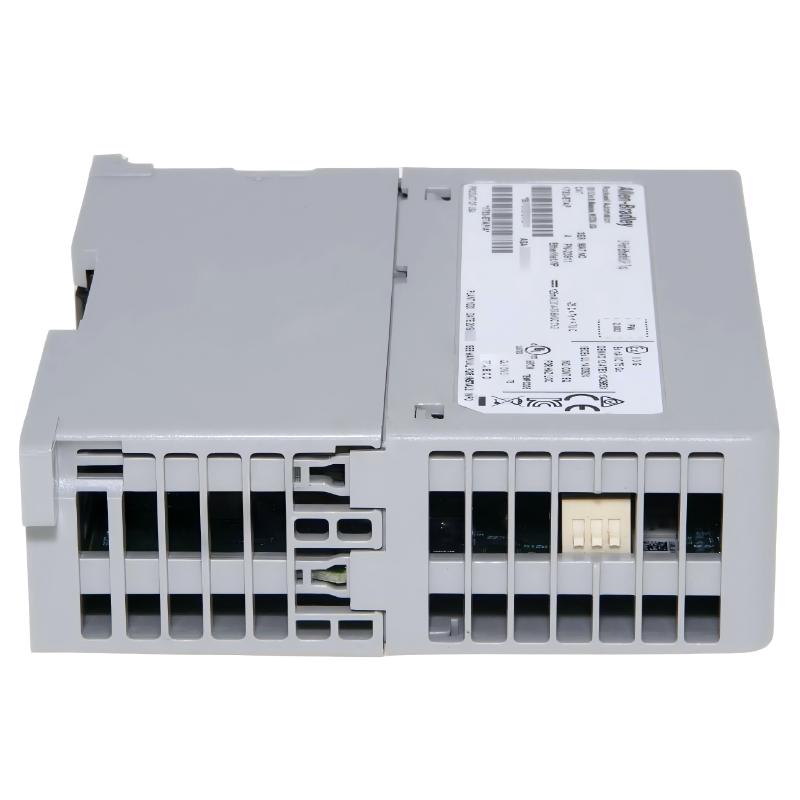

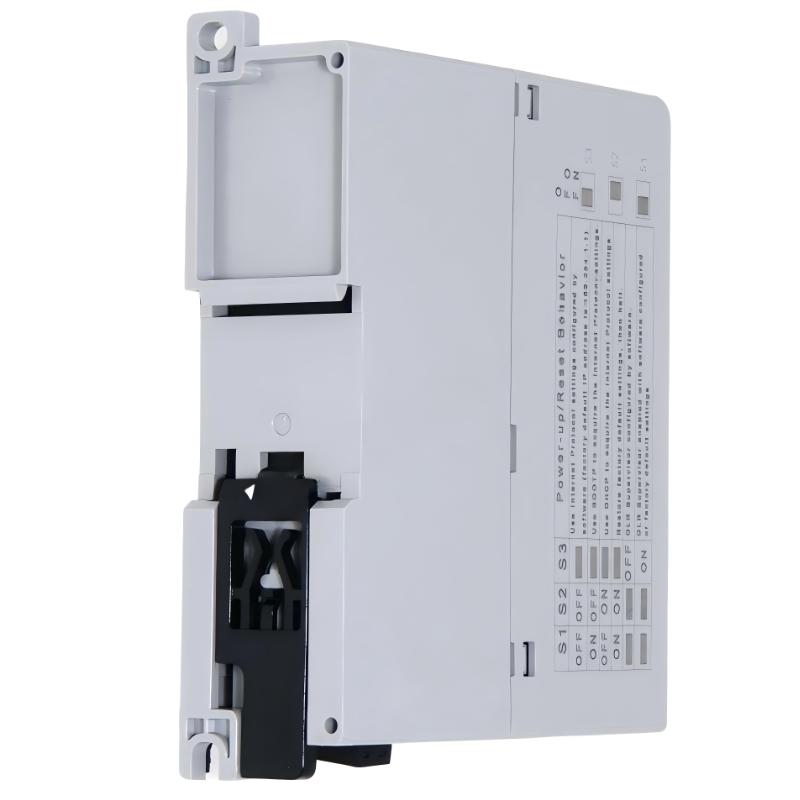

The Allen Bradley 1783-ETAP is an industrial EtherNet/IP tap module designed to integrate single-port Ethernet devices into industrial network architectures. It enables seamless communication within Device Level Ring (DLR) and linear topologies by providing a three-port embedded switch interface.
This module is widely used in Rockwell Automation architectures to simplify network expansion, improve connectivity flexibility, and maintain reliable EtherNet/IP communication in distributed automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Catalog Number | 1783-ETAP |
| Module Type | EtherNet/IP Tap |
| Network Type | Industrial Ethernet / EtherNet/IP |
| Total Ports | 3 × RJ45 copper ports |
| Port Speed | 10/100 Mbps |
| Power Supply | 24V DC (20.4–27.6V DC) |
| Power Consumption | ~3 W |
| Current Consumption | up to 125 mA @ 24V DC |
| Network Topology | Linear and Device Level Ring (DLR) |
| Cable Type | Cat5e or higher (industrial Ethernet) |
| Isolation Voltage | up to 1250V tested |
| Protection Class | Industrial open-style (IP20) |
| Mounting Method | DIN rail mounting |
| Alarm Output | Not standard |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | ~1.0–2.0 kg (depending on revision) |
| Dimensions (L×W×H) | 157 mm × 142 mm × 110 mm |
System Role Overview
The 1783-ETAP acts as a network interface bridge for EtherNet/IP devices, particularly in architectures where:
- A single Ethernet device must join a DLR ring
- Linear and ring topologies need flexible device insertion
- Industrial communication redundancy is required
- Machine-level networks require embedded switching capability
Unlike a standard switch, the ETAP is designed specifically for control-system-aware networking, ensuring deterministic EtherNet/IP communication.
Key functions include:
- Enabling single-port devices to join DLR networks
- Providing embedded 3-port switching capability
- Supporting linear and ring Ethernet topologies
- Maintaining EtherNet/IP communication integrity
- Simplifying industrial network architecture
