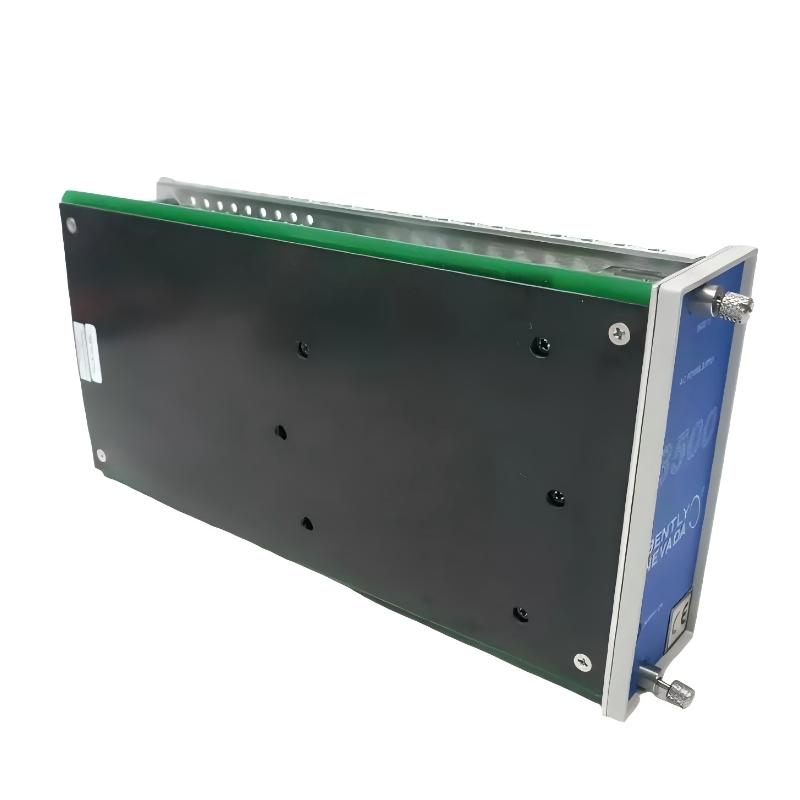

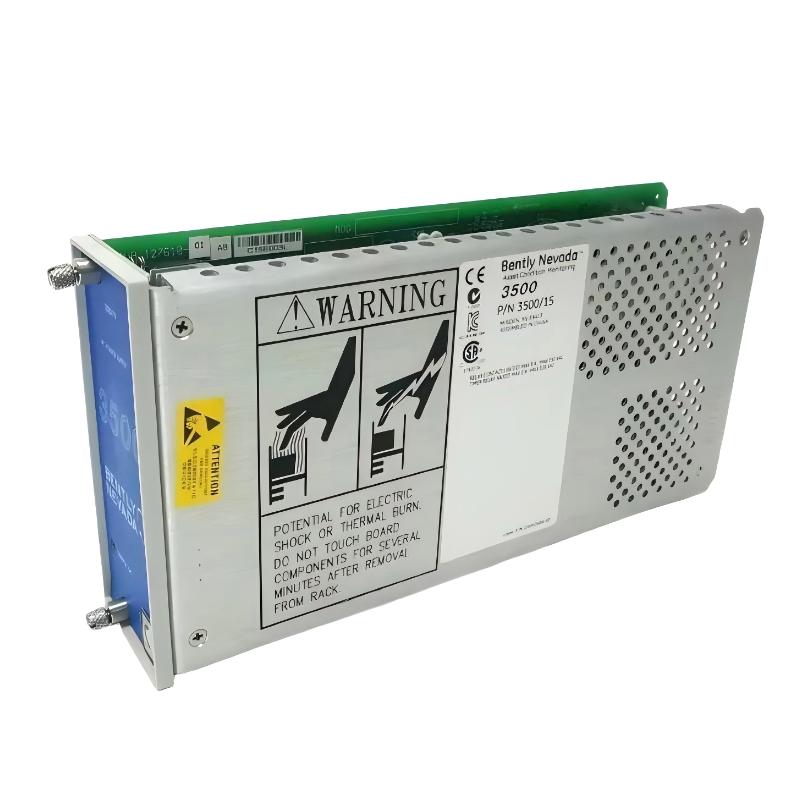

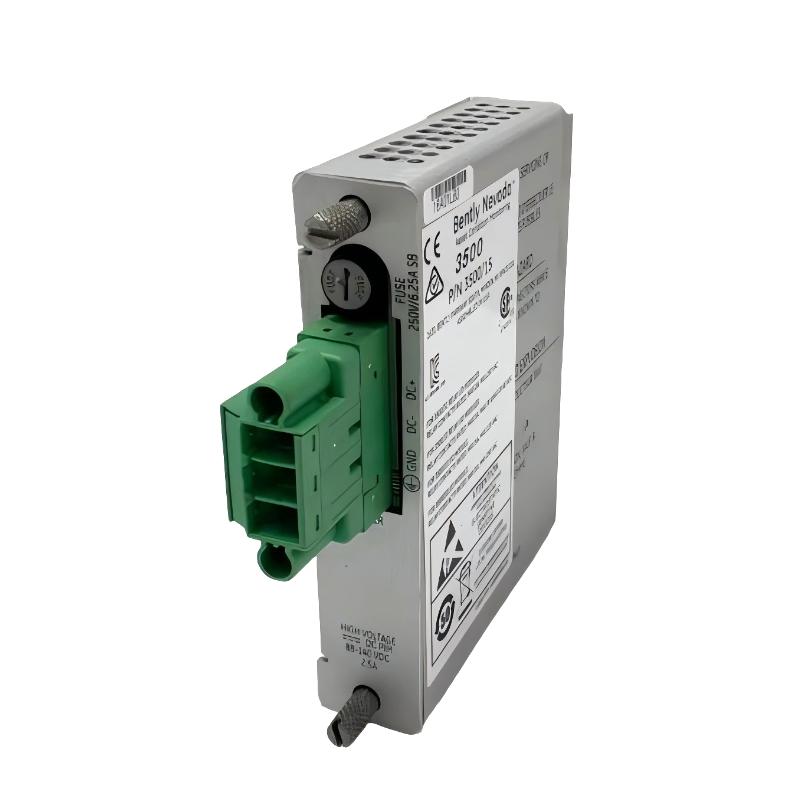

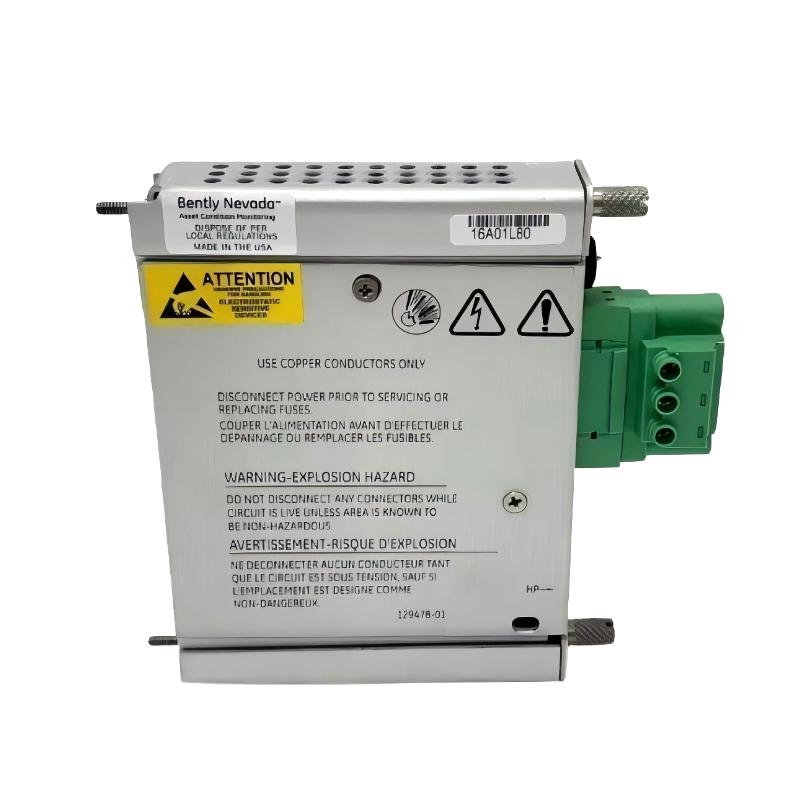

Bently Nevada 3500/15 106M2686-00+127610-01 AC/DC Power Supply Module
Bently Nevada 3500/15 106M2686-00+127610-01 AC/DC Power Supply Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/15 Product Origin:USA Product Dimensions:120.7 x 50.8 x 251.5 mm Product Weight:1.39 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/15 106M2686-00+127610-01 AC/DC Power Supply Module is a high-performance component for the 3500 Series Machinery Protection System. It delivers stable dual AC/DC power to maintain uninterrupted operation of monitors, transducers, and I/O modules, protecting critical rotating machinery.
Its compact and robust design, combined with full compatibility with 3500 Series modules, makes it ideal for new installations, replacements, and system expansions. The module ensures reliable power delivery, enhances uptime, and supports scalable machinery protection architectures.
Technical Specifications
Item
Description
Product Type
AC/DC Power Supply Module
Function
Regulated AC and DC power for 3500 Series modules
System Compatibility
Bently Nevada 3500 Series Machinery Protection System
Installation
3500/15 chassis
Application Environment
Industrial machinery monitoring
Dimensions (W × H × D)
120.7 × 50.8 × 251.5 mm
Weight
1.39 kg
Recommended Related Models
Model
Module Type
Application Focus
Bently Nevada 3500/15 106M1081-01
AC/DC Power Supply Module
Complementary power supply for 3500 system
Bently Nevada 3500/15 106M1079-01
AC/DC Power Supply Module
Standard AC/DC supply for 3500 modules
Bently Nevada 3500/15 106M1066-01
Monitor Module
Machinery vibration monitoring
Bently Nevada 3500/15 106M1070-01
Monitor Module
Bearing and shaft vibration monitoring
Bently Nevada 3500/15 106M1074-01
Transducer Module
Signal conditioning and acquisition
Popular Related Models
Model
Module Type
Typical Application
Bently Nevada 3500/15 106M1079-01
Power Supply Module
Standard AC/DC power delivery for 3500 system
Bently Nevada 3500/15 106M1081-01
Power Supply Module
Complementary AC/DC supply module
Bently Nevada 3500/15 106M1073-01
Monitor Module
Turbine and compressor vibration monitoring
Bently Nevada 3500/15 106M1069-01
Monitor Module
High-speed machinery monitoring
Bently Nevada 3500/15 106M1075-01
Monitor Module
Rotating machinery protection
Applications
The Bently Nevada 3500/15 106M2686-00+127610-01 AC/DC Power Supply Module is designed to provide reliable and continuous power to the 3500 Series Machinery Protection System. It delivers stable AC and DC voltages to monitors, transducers, and I/O modules, ensuring uninterrupted machinery protection and precise condition monitoring.
This module is commonly used in turbines, compressors, generators, pumps, and other critical rotating machinery in power generation, petrochemical, oil & gas, and industrial process facilities. It is essential in environments where uninterrupted power and high system reliability are critical for asset protection.
Advantages
The 3500/15 AC/DC Power Supply Module provides dual regulated power outputs with low ripple, high stability, and integrated protection features. Its robust design ensures continuous, reliable operation for sensitive monitoring electronics, minimizing downtime risk.
Fully compatible with 3500 Series modules, it simplifies installation, system expansion, and replacement. Its industrial-grade construction delivers long-term performance even in harsh plant environments, making it ideal for mission-critical machinery monitoring.
Technical FAQs
1. What is the main function of this module?
It provides regulated AC and DC power to Bently Nevada 3500/15 monitors, transducers, and I/O modules.
2. Which input power types does it support?
The module supports both AC and DC input for flexible deployment.
3. How does it maintain stable voltage output?
It uses regulated circuitry to ensure consistent voltage with minimal ripple to connected devices.
4. Can it operate continuously in industrial conditions?
Yes, it is designed for continuous-duty operation in demanding environments.
5. Does it include protection features?
Yes, it provides overload, short-circuit, and overvoltage protection for connected components.
6. Is it compatible with all 3500 Series modules?
Yes, it works seamlessly with monitors, transducers, and I/O modules within the 3500 Series system.
7. How is the module installed?
It is installed inside the 3500/15 chassis and connected according to standard wiring practices.
8. Can it support system expansion?
Yes, it reliably powers additional 3500 Series modules during upgrades or expansions.
9. How does it handle voltage fluctuations?
The module regulates incoming AC or DC power to maintain steady output for sensitive electronics.
10. Why is this module suitable for critical machinery protection?
Its dual AC/DC regulated outputs, protective features, and 3500 Series compatibility ensure continuous, safe operation of machinery monitoring systems.
