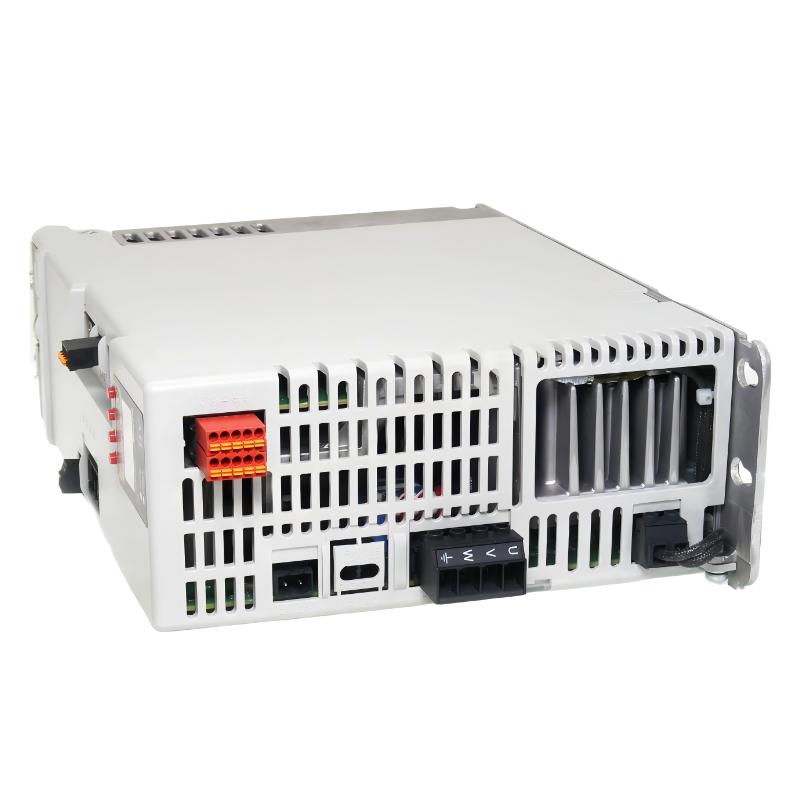

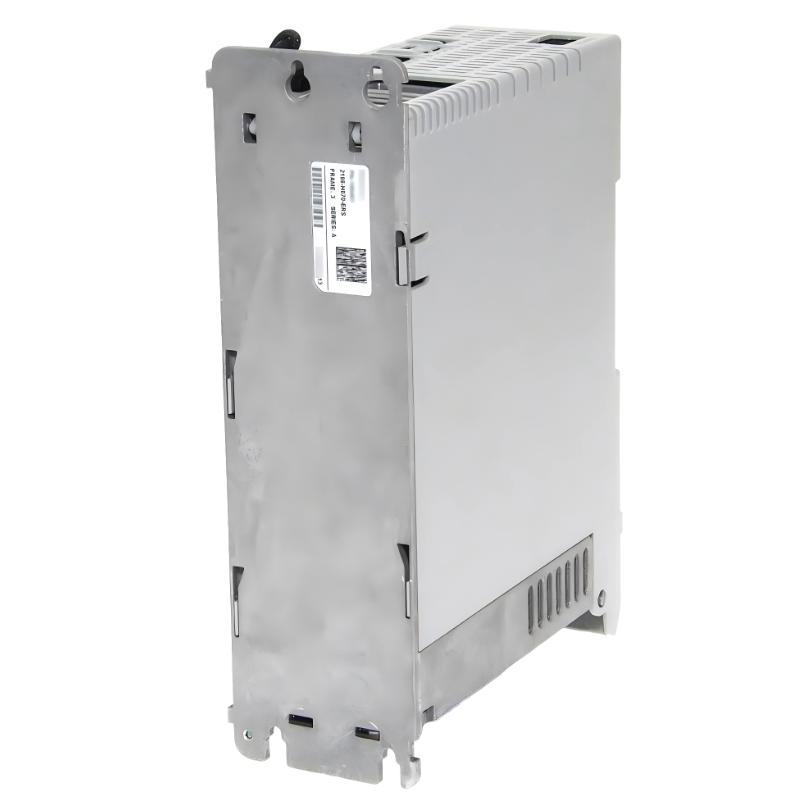

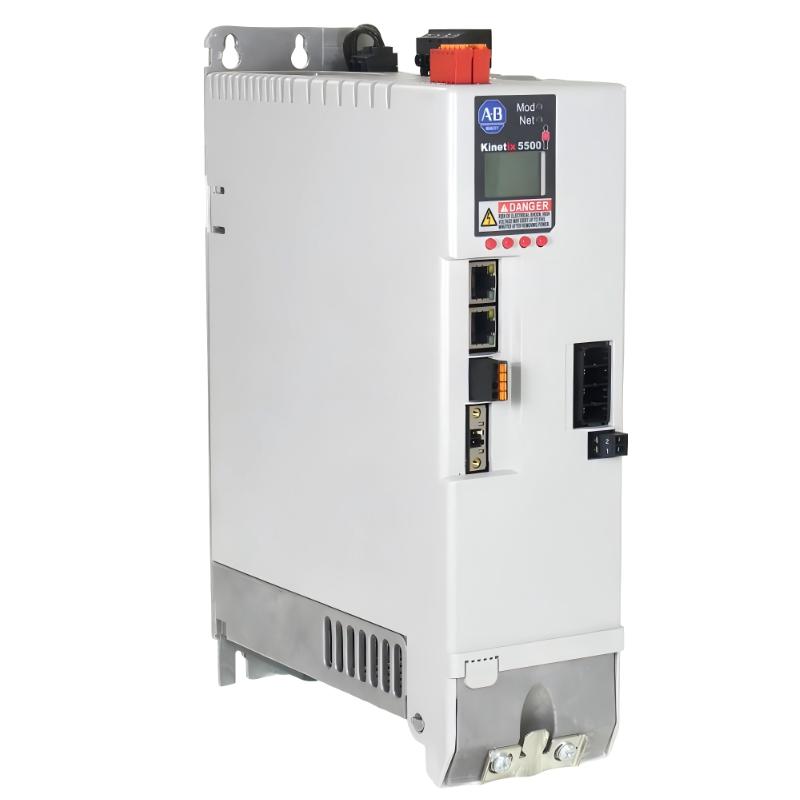

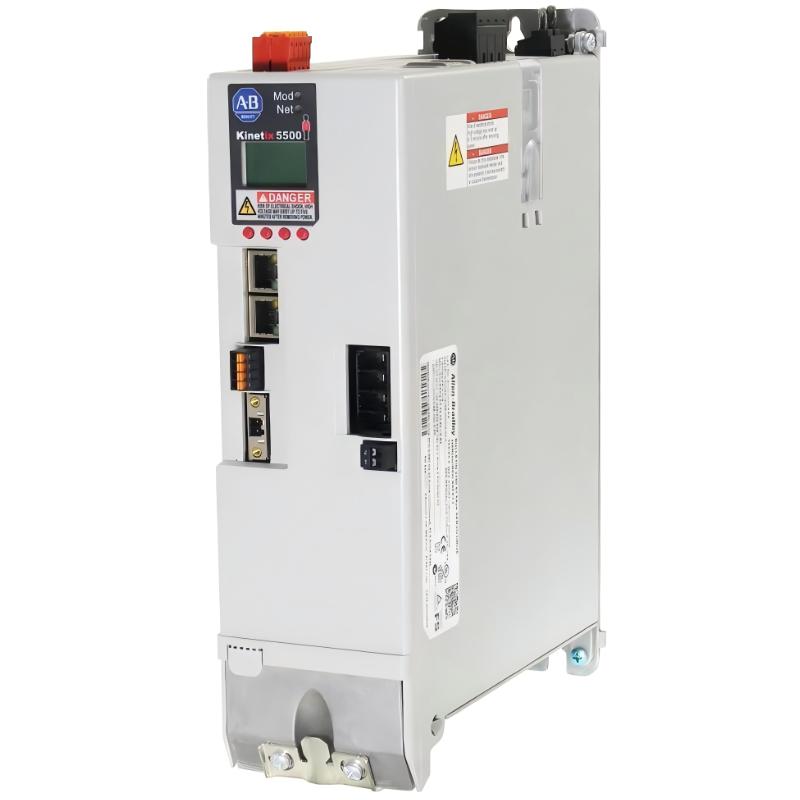

The Allen-Bradley 2198-H070-ERS is a powerful Kinetix 5500 servo drive module engineered for demanding industrial automation environments requiring high current capacity, precise motion synchronization, and seamless integration with Logix-based control systems. Designed as part of Rockwell Automation’s Integrated Architecture platform, this drive supports deterministic EtherNet/IP motion communication for high-speed multi-axis machine control.
Built for heavy-duty servo applications, the 2198-H070-ERS delivers exceptional motion accuracy and rapid dynamic response, making it ideal for robotics, packaging systems, converting machinery, material handling equipment, and high-speed automated production lines. Its integrated motion capabilities reduce commissioning complexity while improving machine scalability and diagnostics.
With high power density and industrial-grade durability, this model is well suited for continuous-duty operation in modern manufacturing facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Kinetix 5500 |
| Product Type | Servo Drive Module |
| Input Voltage | 324–528V AC, 3-Phase |
| Nominal Voltage Class | 480V AC |
| Input Frequency | 47–63 Hz |
| Continuous Output Current | 23 A RMS |
| Peak Output Current | 57.5 A RMS |
| Continuous Output Power | Up to 15 kW |
| Communication | Dual-Port EtherNet/IP (CIP Motion) |
| Safety Function | Integrated Safe Torque-Off (STO) |
| Dynamic Brake | Internal brake transistor |
| Feedback Support | High-resolution encoder feedback |
| Control Modes | Position / Velocity / Torque |
| Efficiency | Up to 97% |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 / Open Type |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 350 × 85 × 245 mm |
| Weight | ~5.8 kg |
Its robust thermal chassis supports high-load continuous operation while maintaining stable cabinet airflow performance.
