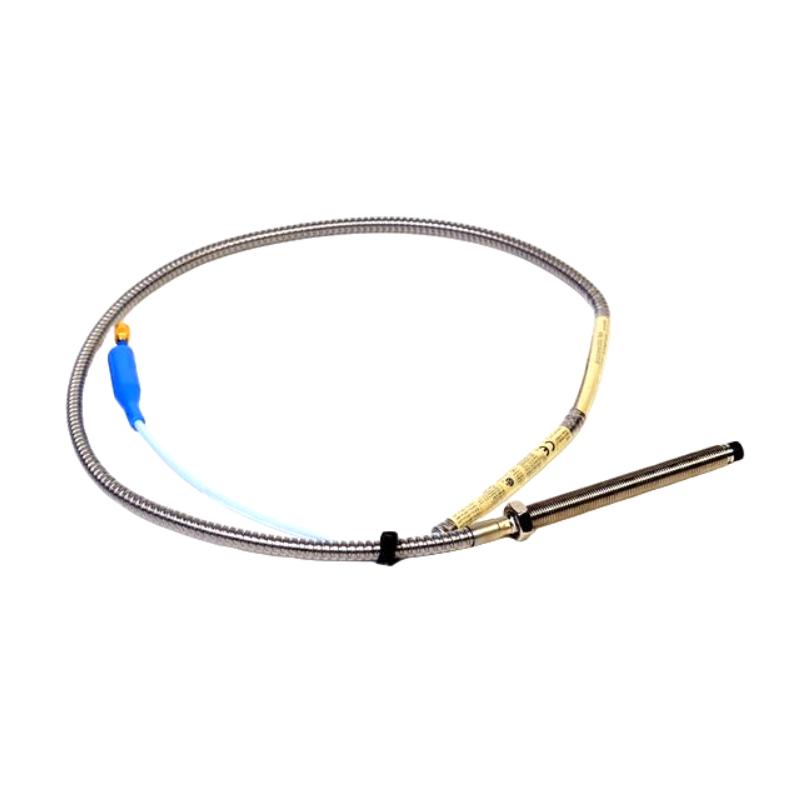

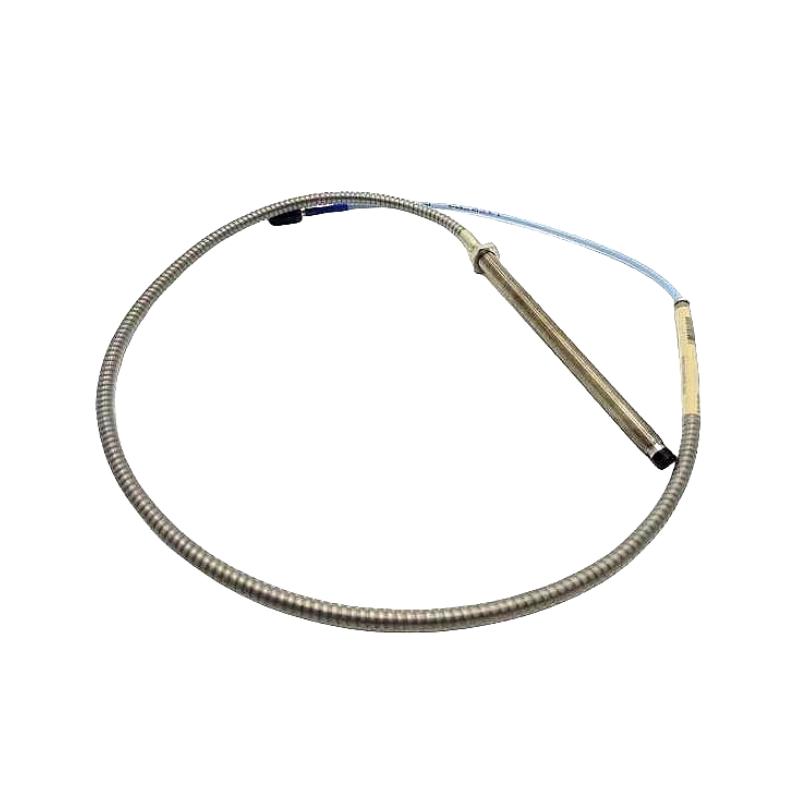

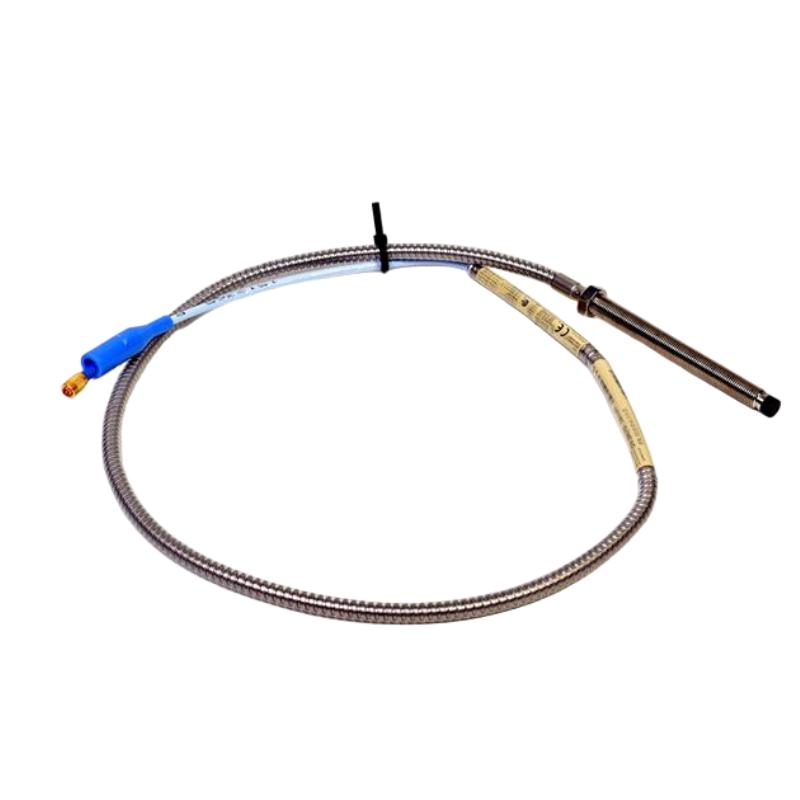

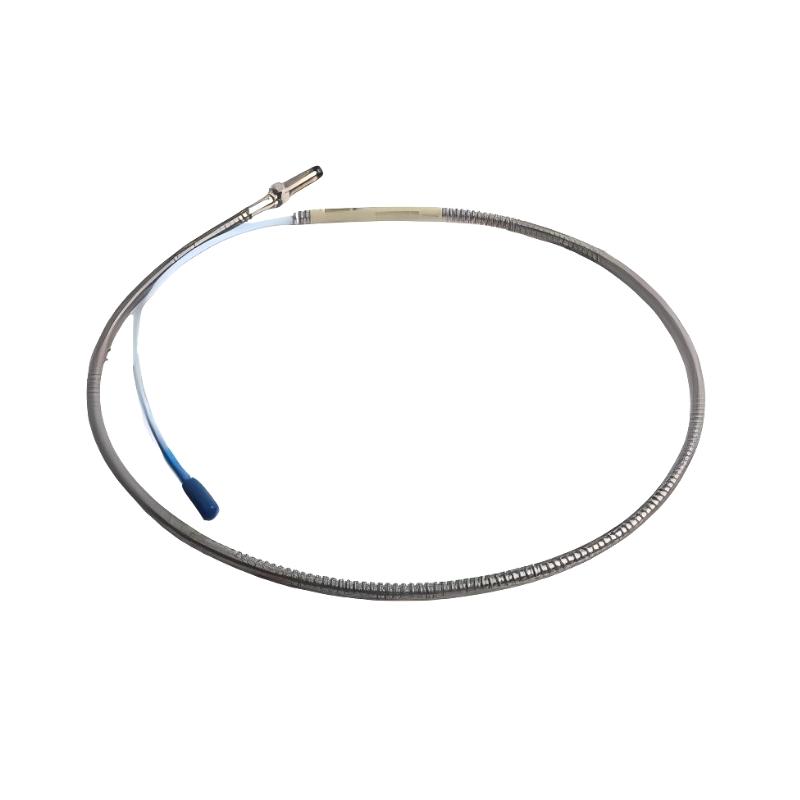

Bently Nevada 330102-00-70-10-02-00 3300 XL 8 mm Proximity Probe

Applications

The Bentley 330102-00-70-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current displacement sensor designed for continuous machinery condition monitoring and vibration measurement applications. As part of the 3300 XL proximity measurement system, this probe is widely used for monitoring critical rotating equipment where accurate shaft position and vibration data are essential for operational safety and predictive maintenance.

The 330102-00-70-10-02-00 proximity probe is commonly applied in industrial environments such as power generation, oil and gas processing, petrochemical facilities, marine systems, and heavy manufacturing plants. Typical equipment monitored with this type of sensor includes turbines, compressors, pumps, gearboxes, and large rotating machinery.

The 8 mm sensing design provides a practical measurement solution for applications requiring reliable non-contact displacement monitoring. Unlike contact-based sensors, the proximity probe measures shaft movement without physical contact, helping reduce wear and improving long-term measurement stability.

For maintenance teams and system integrators, the 330102-00-70-10-02-00 offers a dependable replacement option for existing 3300 XL monitoring installations. Its standardized configuration allows it to be integrated into established machinery protection systems where accurate vibration and position monitoring are required.

Advantages

The Bentley 330102-00-70-10-02-00 3300 XL 8 mm Proximity Probe provides several advantages for industrial machinery protection and condition monitoring applications.

One of its primary benefits is high measurement reliability. Eddy current sensing technology enables non-contact measurement of shaft displacement, making it suitable for high-speed rotating equipment where mechanical contact sensors would experience wear or reduced accuracy.

The probe is designed for use in demanding industrial environments where continuous monitoring is required. Accurate vibration and position feedback allows operators and maintenance engineers to identify abnormal operating conditions earlier, helping reduce unexpected equipment downtime.

Another advantage is compatibility with the established 3300 XL proximity measurement system architecture. Plants already using Bentley machinery monitoring equipment can benefit from maintaining consistent sensor technology across critical assets.

The compact design and 1-meter total length provide installation flexibility for various machine configurations. This makes the probe suitable for applications where sensor placement and cable routing need to accommodate specific mechanical layouts.

For industrial users seeking reliable machinery protection components, the 330102-00-70-10-02-00 represents a professional-grade sensing solution designed for long-term monitoring performance and system stability.

Technical FAQs

1. What measurement principle does the 330102-00-70-10-02-00 proximity probe use?

The probe uses eddy current measurement technology. It generates an electromagnetic field to detect changes in the distance between the probe tip and the conductive target surface, typically a rotating machine shaft.

2. What type of machinery is suitable for this proximity probe?

The probe is commonly used for monitoring rotating machinery such as turbines, compressors, pumps, and other critical assets where shaft vibration and displacement measurements are required.

3. Why is non-contact measurement important in rotating equipment monitoring?

Non-contact measurement eliminates physical wear between the sensor and the rotating shaft. This allows continuous monitoring at high speeds while maintaining measurement consistency.

4. What should be checked if the proximity signal is unstable?

Check probe installation condition, cable connections, target surface condition, system calibration, electrical interference, and the condition of the connected monitoring module.

5. How does the probe detect shaft vibration?

The probe continuously measures the changing gap between the probe tip and the rotating shaft. Variations in this gap represent shaft movement, which can be analyzed as vibration or displacement data.

6. Can the probe be used for machinery protection systems?

Yes. When installed with compatible monitoring hardware, proximity probes can provide essential vibration and position information for machinery protection and condition monitoring systems.

7. What factors can affect measurement accuracy?

Measurement accuracy can be influenced by installation gap, target material properties, probe alignment, cable condition, electrical noise, and correct system configuration.

8. What causes incorrect proximity readings during operation?

Possible causes include incorrect probe gap, damaged extension cable, loose connections, contamination near the probe tip, improper calibration, or problems with the monitoring electronics.

9. Why is correct probe installation critical?

Proper installation ensures that the probe operates within its designed measurement range. Incorrect positioning can lead to inaccurate vibration data and unreliable machinery condition assessment.

10. How can a faulty proximity probe be diagnosed?

Diagnosis typically involves checking signal output, verifying installation parameters, inspecting cables and connectors, comparing readings with known operating conditions, and testing the associated monitoring channel.
