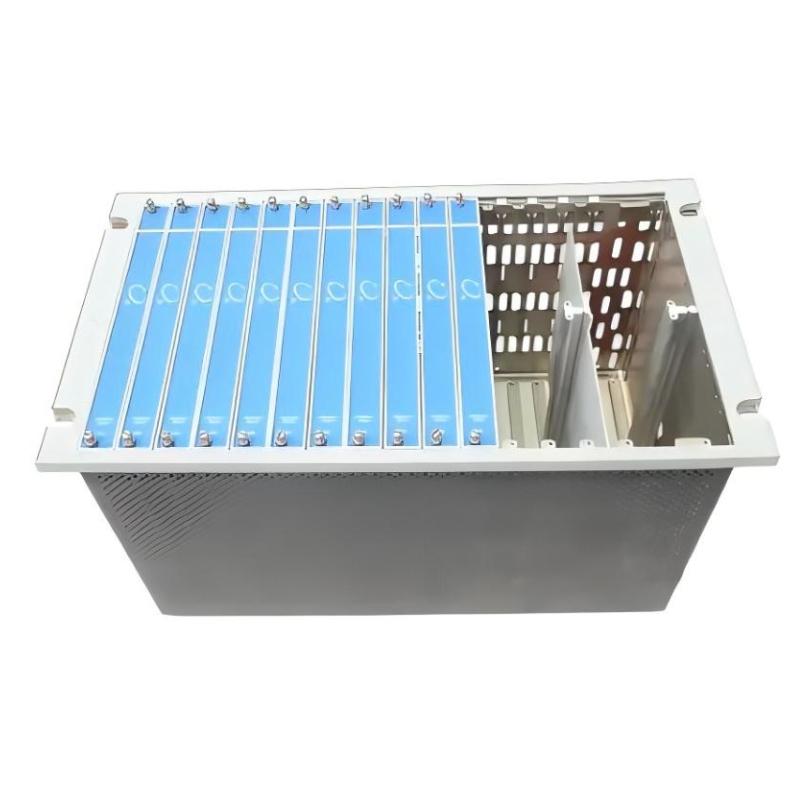

Bently Nevada 3500/05-02-04-02-00-01 3500/05 System Rack

Applications

The Bently Nevada 3500/05-02-04-02-00-01 System Rack is designed to provide a stable and compact mounting platform for the 3500 Machinery Protection System. With a 12-inch configuration supporting up to seven modules, this rack is ideal for installations requiring high reliability in limited cabinet space, including:

• Machinery protection and condition monitoring systems

• Compact control cabinet installations

• Skid-mounted and packaged equipment

• Turbine, compressor, and motor monitoring applications

• Industrial environments such as oil & gas, power generation, petrochemical, and manufacturing

Advantages

• Space-Efficient Design: 12-inch rack minimizes cabinet footprint while maintaining full system functionality.

• Industrial-Grade Construction: Engineered for continuous operation in demanding environments.

• Seamless Module Integration: Fully compatible with Bently Nevada 3500 series modules.

• Easy Installation and Maintenance: Clear module layout simplifies system assembly and servicing.

• Proven Reliability: Trusted worldwide for critical rotating machinery protection.

Technical FAQs

1. What rack size does this system support?
   It supports a 12-inch rack configuration with 7 module slots.

2. What is the weight of this system rack?
   The rack weighs 4.5 kg.

3. What is the function of the 3500/05 System Rack?
   It provides mechanical mounting and backplane connectivity for 3500 series modules.

4. Is this rack compatible with all 3500 monitoring modules?
   Yes, it is fully compatible with standard Bently Nevada 3500 series modules.

5. Can this rack be used for continuous industrial operation?
   Yes, it is designed for 24/7 industrial service.

6. How is the rack typically installed?
   It is mounted inside industrial control cabinets or monitoring enclosures.

7. Does this rack support redundant system configurations?
   Yes, it supports redundant power supply configurations when required.

8. What type of environments is this rack suitable for?
   It is suitable for industrial environments with vibration, temperature variation, and long operating hours.

9. Which industries commonly use this system rack?
   Oil & gas, power generation, petrochemical, and heavy industrial sectors.

10. Does this rack meet industrial quality standards?
    Yes, it meets Bently Nevada and international industrial quality standards.
