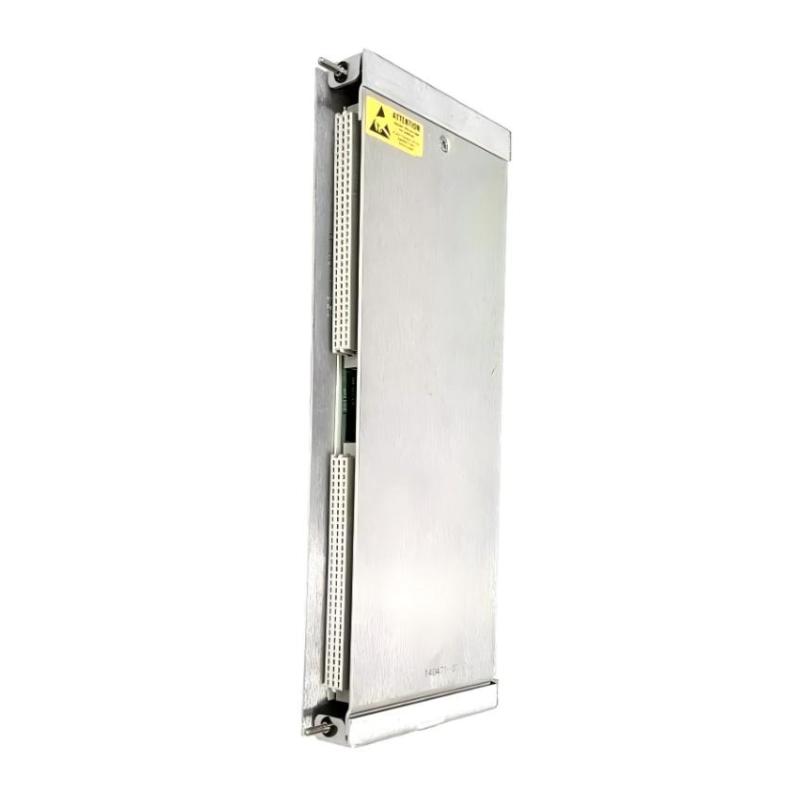

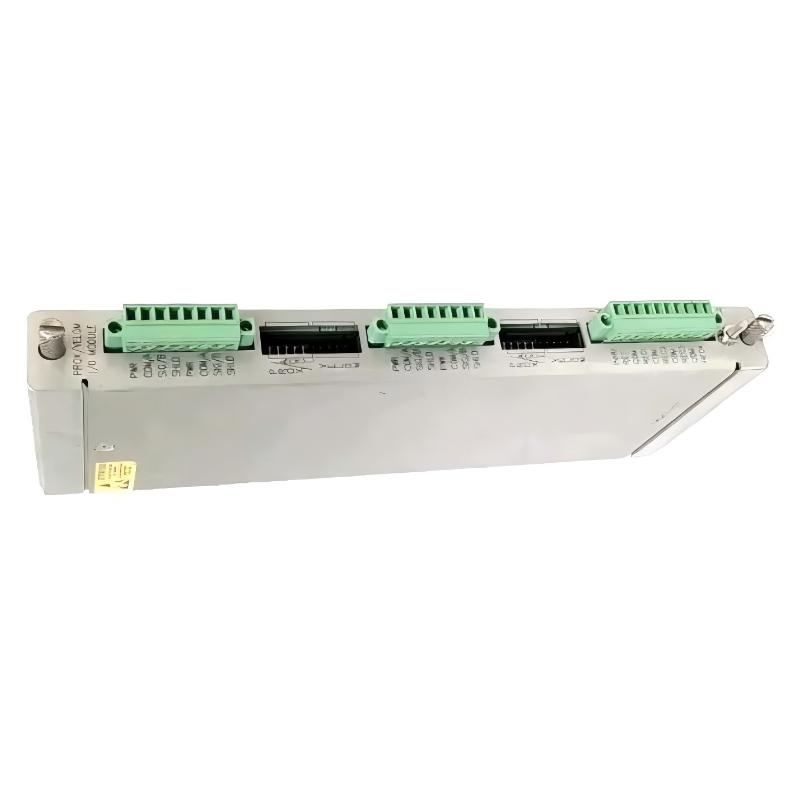

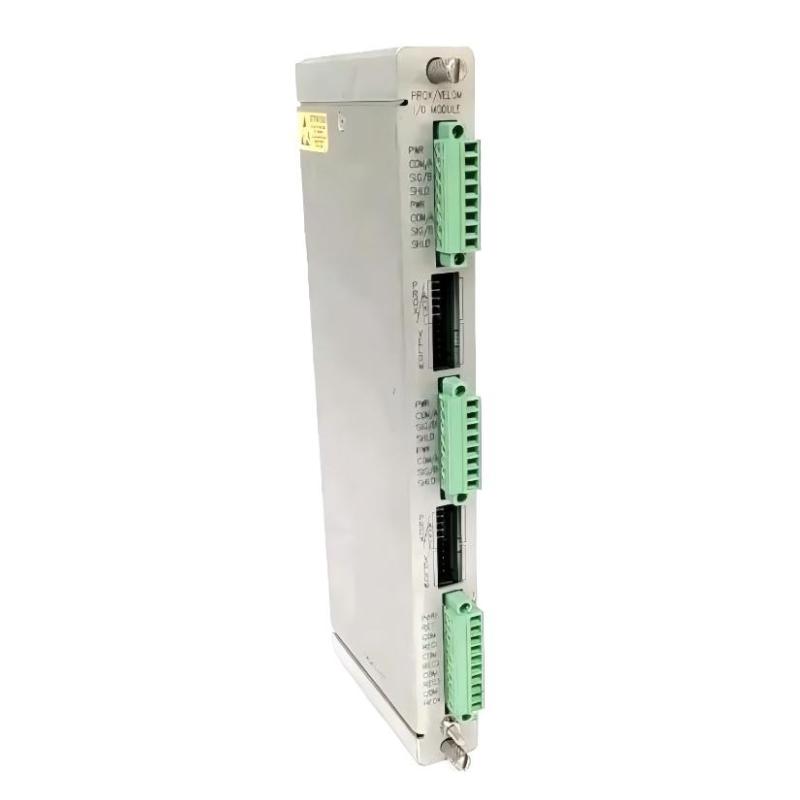

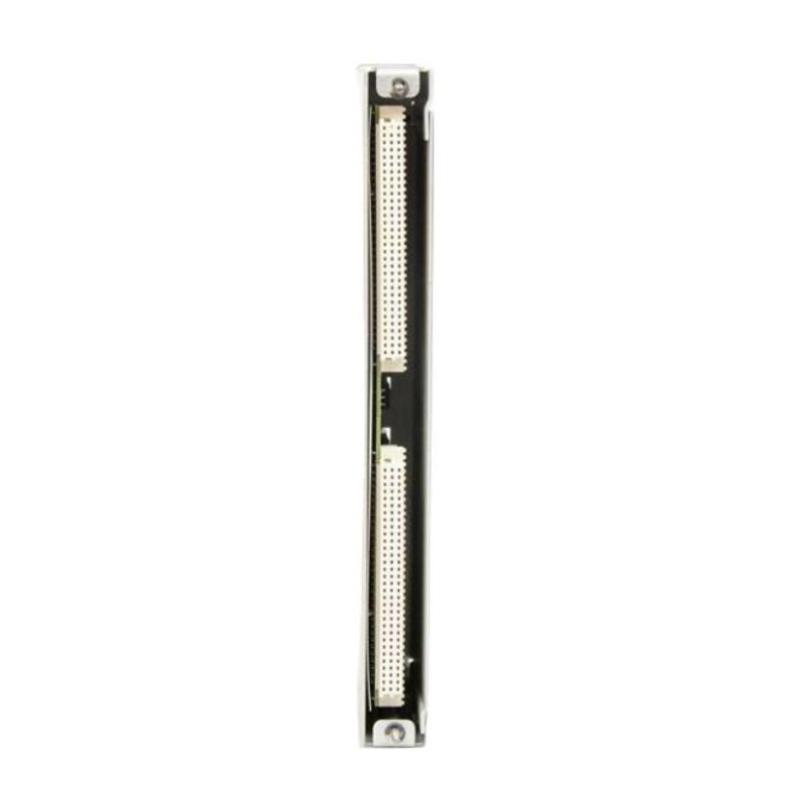

Bently Nevada 3500/72M 140471-01 Reciprocating Rod Position Monitor

Typical Use Scenarios

The Bently Nevada 3500/72M Reciprocating Rod Position Monitor is specifically engineered for accurate measurement and protection of reciprocating machinery. It is widely applied in industries where precise rod position monitoring is critical to equipment health and operational safety, including:

• Reciprocating compressors and engines

• Crosshead and piston rod position monitoring

• Machinery protection systems for critical assets

• Oil & gas production and processing facilities

• Power generation and heavy industrial plants

Distinct Performance Benefits

• High-Precision Measurement: Delivers reliable rod position data for reciprocating machinery protection.

• Compact Module Design: Slim profile allows efficient use of rack space within 3500 systems.

• Seamless System Compatibility: Fully integrates with Bently Nevada 3500 series racks and infrastructure.

• Industrial Reliability: Designed for continuous operation in demanding industrial environments.

• Maintenance-Friendly Architecture: Simplifies diagnostics, calibration, and module replacement.

Technical FAQs

1. What is the primary function of the 3500/72M module?
   It monitors reciprocating rod position to protect and analyze reciprocating machinery.

2. What are the dimensions and weight of this module?
   Dimensions are 241.3 x 24.4 x 99.1 mm, with a weight of 0.2 kg.

3. Is this module designed for continuous operation?
   Yes, it is designed for 24/7 industrial operation.

4. Which systems is the 3500/72M compatible with?
   It is compatible with Bently Nevada 3500 series system racks and accessories.

5. What type of machinery uses this monitor most frequently?
   Reciprocating compressors, engines, and similar machinery.

6. Does this module support real-time monitoring?
   Yes, it provides real-time rod position data for protection and diagnostics.

7. Is it suitable for harsh industrial environments?
   Yes, it is built to withstand vibration, temperature variation, and industrial electrical noise.

8. How is the module installed?
   It is installed directly into a Bently Nevada 3500 system rack slot.

9. Can it be integrated into existing 3500 systems?
   Yes, it is designed for seamless integration into existing 3500 monitoring systems.

10. What industries typically deploy this module?
    Oil & gas, power generation, petrochemical, and heavy industrial sectors.
