Introduction

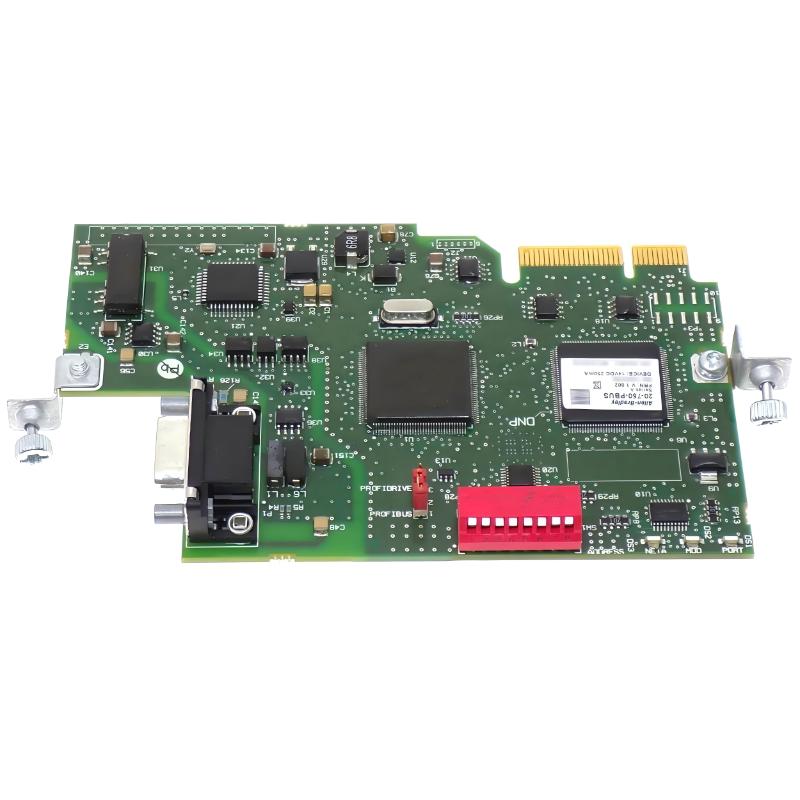

The Allen-Bradley 20-750-PBUS PowerFlex 750 Profibus DPV1 Option Module provides a reliable solution for connecting PowerFlex 750 drives to Profibus DPV1 networks. Its compact, durable design allows for seamless integration into distributed control systems, delivering real-time communication, precise motor feedback, and robust diagnostics. This module is ideal for industrial automation engineers seeking a flexible, high-performance networked drive solution.

Technical Specifications

Parameter	Specification
Dimensions (L × W × H)	130 × 15.76 × 83 mm
Weight	0.057 kg (0.126 lb)
Network Protocol	Profibus DPV1
Compatible Drives	PowerFlex 750 Series
Operating Temperature	0°C to 55°C
Installation	Drive-mounted Option Module
Diagnostics	LED Indicators for Network & Drive Status
Configuration	Studio 5000, RSLinx

Applications

The Allen-Bradley 20-750-PBUS PowerFlex 750 Profibus DPV1 Option Module enables seamless integration of PowerFlex 750 drives into Profibus DPV1 networks, making it ideal for distributed industrial automation systems. It is commonly used in packaging machinery, conveyor systems, material handling equipment, and process automation where reliable communication and real-time monitoring of drive parameters are essential. This module allows engineers to implement precise motor control with efficient network connectivity.

Advantages

Profibus DPV1 Compatibility: Provides robust communication for industrial Profibus networks.
Compact Design: Small footprint enables easy installation inside the PowerFlex 750 drive enclosure.
Real-Time Monitoring: Facilitates fast feedback and status monitoring from the drive.
Seamless Integration: Compatible with Studio 5000, RSLinx, and Rockwell Automation configuration tools.
Diagnostics & Troubleshooting: Enables quick identification of faults and network issues.
Flexible Network Architecture: Supports multi-node configurations for scalable system designs.

Technical FAQs

Q: Which drives are compatible with this module?
A: Compatible with all PowerFlex 750 drives supporting Profibus DPV1 communication.
Q: What network protocol does the module support?
A: Profibus DPV1 (standardized for industrial automation networks).
Q: Can the module be installed while the drive is powered?
A: No, the drive must be powered down before installation.
Q: Does the module provide diagnostics?
A: Yes, LED indicators provide network and communication status.
Q: How many nodes can be supported on a Profibus network?
A: Supports standard Profibus DPV1 multi-node configurations according to network design.
Q: What is the operating temperature range?
A: Rated for 0°C to 55°C.
Q: How is the module configured?
A: Configuration is performed using Rockwell Automation tools such as RSLinx or Studio 5000.
Q: Can the module provide real-time motor control data?
A: Yes, it transmits operational and diagnostic data in real time over the Profibus network.
Q: Is hot-swappable installation supported?
A: No, the module must be installed with the drive powered off.
Q: Does the module require additional cabling?
A: Uses standard Profibus DP cables for network connection, no additional interface is needed.
