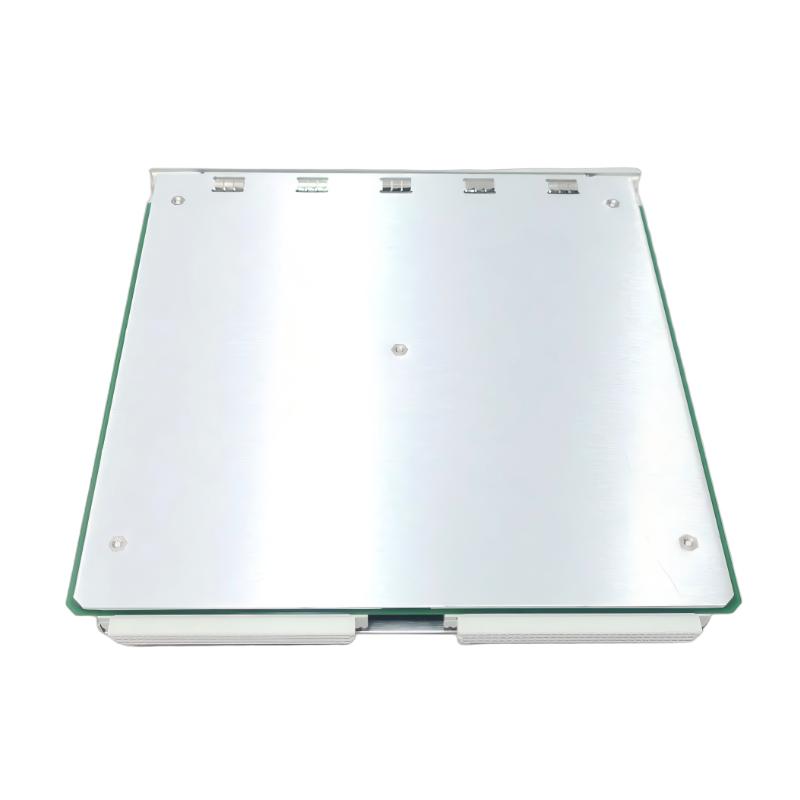

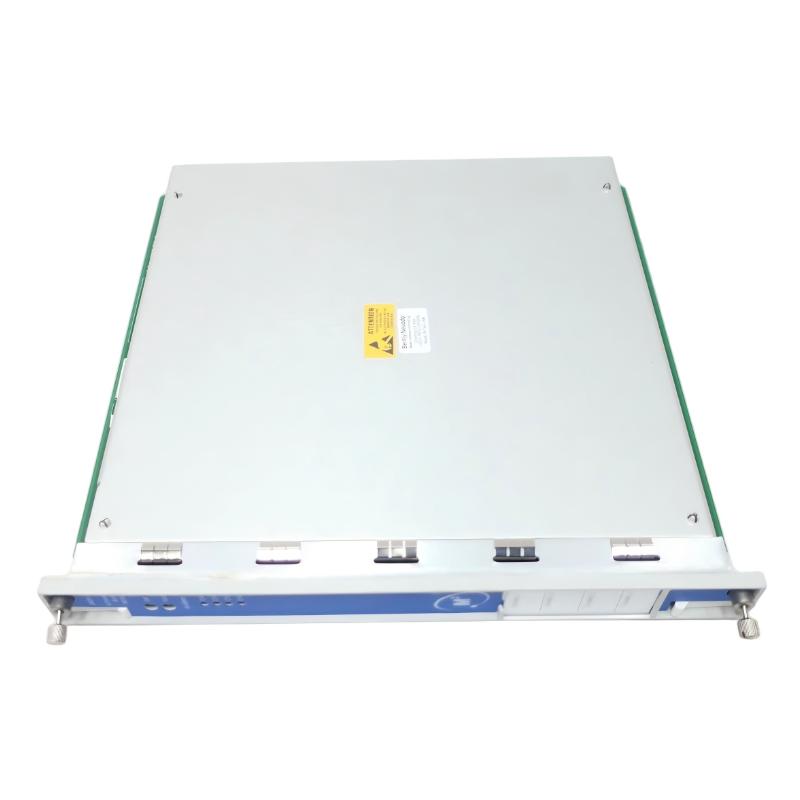

Bently Nevada 3500/32M 149986-02 Relay Control Module

Applications

The Bently Nevada 3500/32M Relay Control Module is engineered to manage alarm and trip outputs in machinery protection systems. It is typically installed in turbines, compressors, generators, and other critical rotating equipment to provide reliable multi-channel signaling. Designed for integration with the 3500 Series monitoring system, this module supports new installations as well as upgrades, ensuring timely response to abnormal machinery conditions in industrial, power generation, and petrochemical environments.

Advantages

This relay control module delivers dependable and precise operation for four independent channels. It is built to withstand harsh industrial conditions including vibration, electrical noise, and temperature fluctuations. The module’s modular construction simplifies installation and maintenance, while providing flexible channel configuration to accommodate a variety of machinery protection strategies. By enabling accurate alarm and trip outputs, it enhances system safety and reliability, helping prevent equipment damage and downtime.

Technical FAQs

1. What is the main purpose of the 3500/32M Relay Control Module?
It provides four independent relay outputs for alarms and trips in machinery monitoring systems.

2. Can this module be used with existing 3500 Series racks?
Yes, it is fully compatible with 3500 Series monitoring systems for both upgrades and new deployments.

3. How are relay channels triggered?
Channels are triggered by signals from Keyphasor, vibration, or other monitored parameters within the system.

4. Is the module suitable for high-vibration industrial environments?
Yes, it is designed to operate reliably in environments with mechanical vibration and electrical interference.

5. Can the four relay channels be configured independently?
Yes, each channel can be set up separately to trigger different alarms or trips as required.

6. How does this module contribute to machinery protection?
It provides timely alarm and trip outputs that help prevent machinery damage and operational downtime.

7. What type of relays are used in this module?
Electromechanical relays suitable for industrial alarm and trip applications are used.

8. How is the module installed in the system?
It mounts directly into standard 3500 Series rack slots for organized and secure system integration.

9. Can the module interface with other 3500 Series modules?
Yes, it integrates seamlessly with I/O, Keyphasor, and analog modules in the 3500 Series.

10. Which applications benefit most from this relay control module?
Rotating machinery monitoring in turbines, compressors, and generators benefits most, especially where multi-channel alarm/trip signaling is required.
