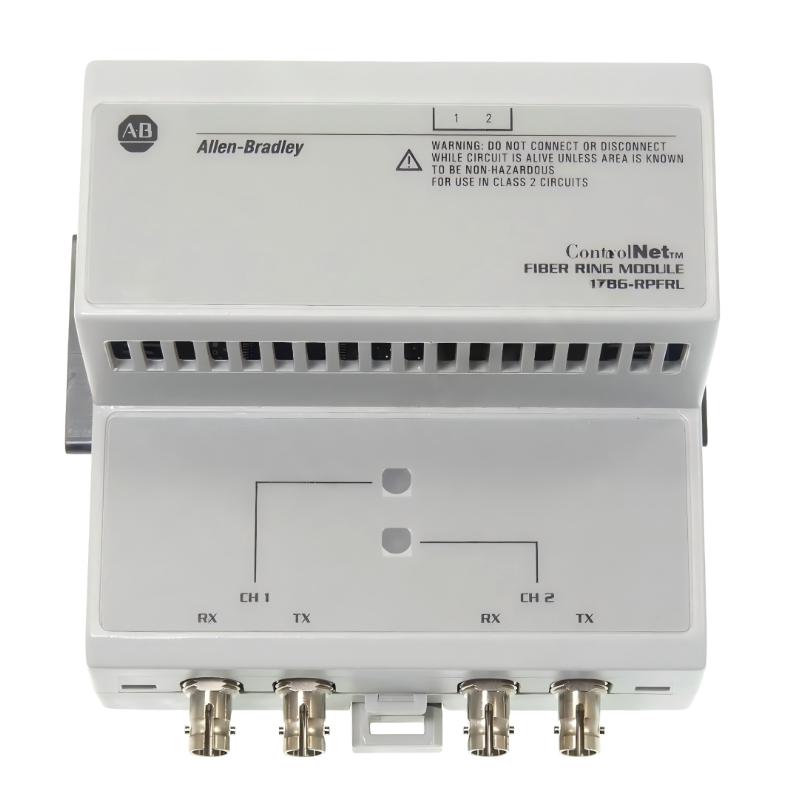

Allen Bradley 1786-RPFRL ControlNet Long-Distance Fiber Optic Ring Repeater Module

Applications

• Long-distance ControlNet fiber network extension
Used to extend ControlNet communication across large industrial sites where copper cabling is not sufficient for stable signal transmission.

• Industrial automation systems requiring EMI immunity
Ideal for environments with heavy electrical noise such as steel plants, mining operations, and power facilities.

• Redundant fiber ring network architectures
Supports ring topology configurations to maintain communication continuity even if a fiber segment fails.

• Distributed factory and plant-wide control systems
Connects geographically separated control cabinets and production areas under a unified network.

• Critical infrastructure communication networks
Applied in utilities such as water treatment, energy distribution, and transportation control systems.

Key Advantages

• High immunity to electromagnetic and radio frequency interference
Fiber optic transmission ensures stable communication in electrically harsh environments.

• Long-distance transmission capability
Supports extended network reach across large industrial facilities and campuses.

• Redundant ring topology support
Maintains continuous operation through automatic rerouting when a link failure occurs.

• Dual-channel fiber architecture with diagnostics
Provides real-time status monitoring for fast fault detection and maintenance.

• Electrical isolation between network nodes
Eliminates ground loop issues and improves overall system safety and stability.

Technical FAQs

Q1: What network protocol does the 1786-RPFRL support?
It supports ControlNet fiber optic communication networks.

Q2: Does it support redundancy?
Yes, it supports fiber ring topology for network redundancy.

Q3: What type of fiber is used?
It typically uses 62.5/125 µm multimode fiber with ST connectors.

Q4: What is the typical transmission rate?
It operates at a fixed ControlNet rate of 5 Mbps.

Q5: Can it be used in harsh industrial environments?
Yes, it is designed for high EMI and industrial noise environments.

Q6: Does it provide diagnostics?
Yes, it includes LED indicators and relay-based status signaling.

Q7: Is it compatible with copper ControlNet modules?
Yes, it can be integrated within hybrid ControlNet architectures.

Q8: What is its installation requirement?
It must be installed with a compatible 1786-RPA/B repeater adapter.

Q9: Does it support hot swap operation?
It can be replaced in modular systems depending on installation design.

Q10: What happens if a fiber link fails?
In ring topology, the system automatically reroutes communication through the alternate path.
