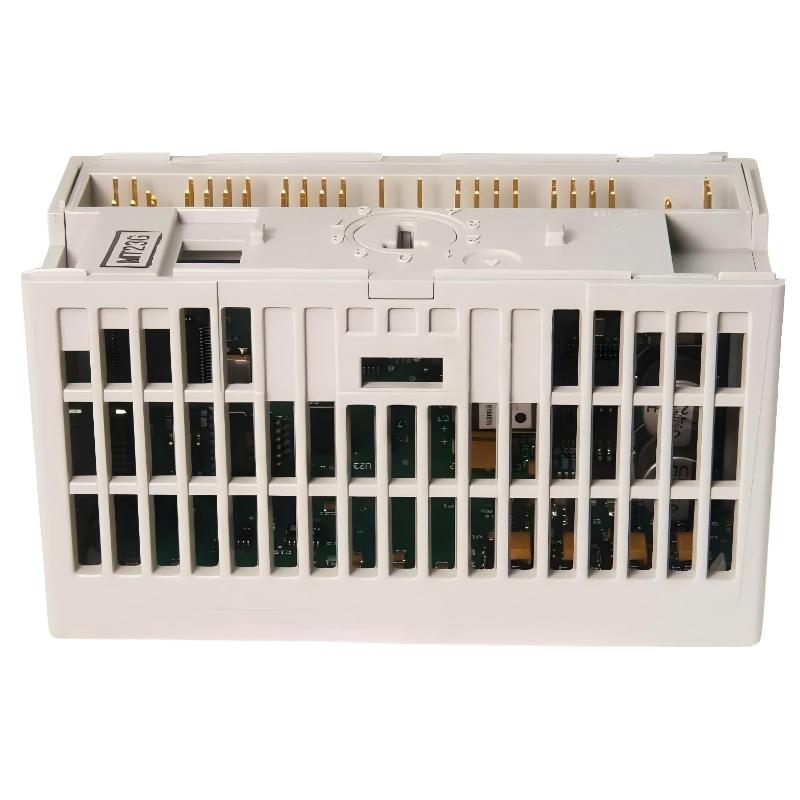

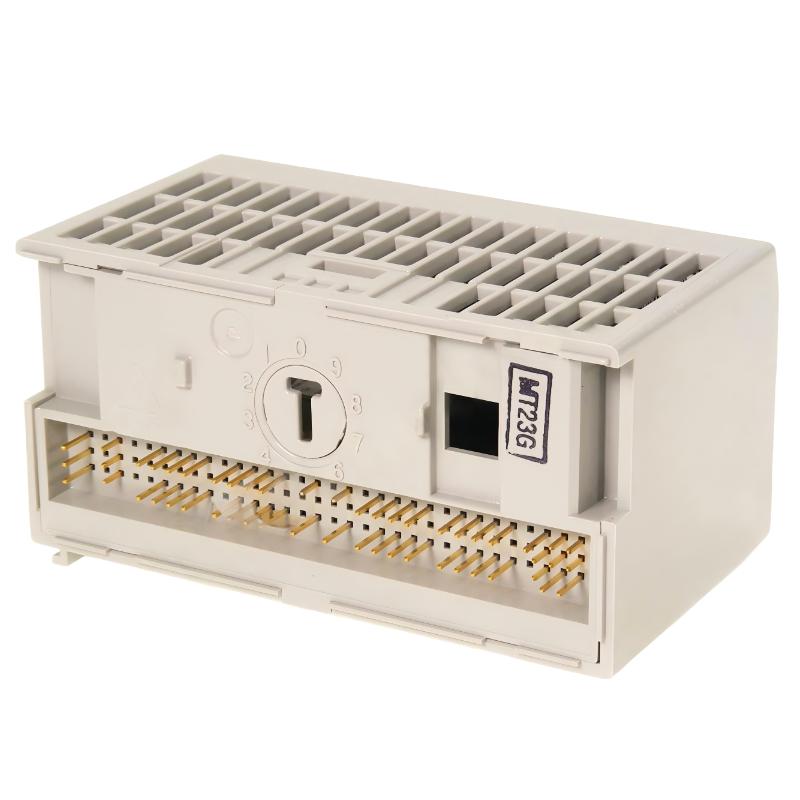

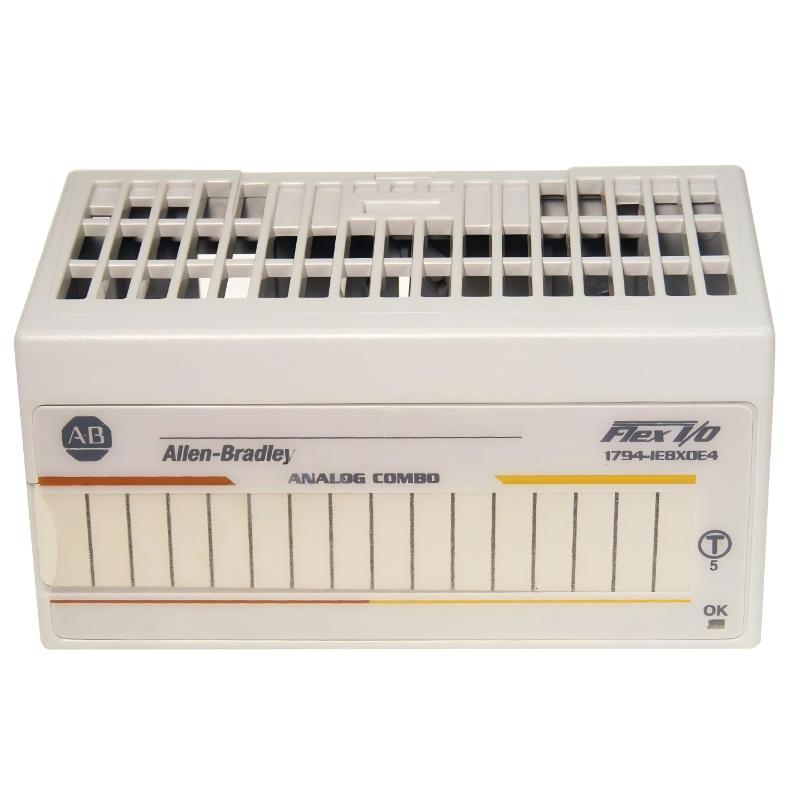

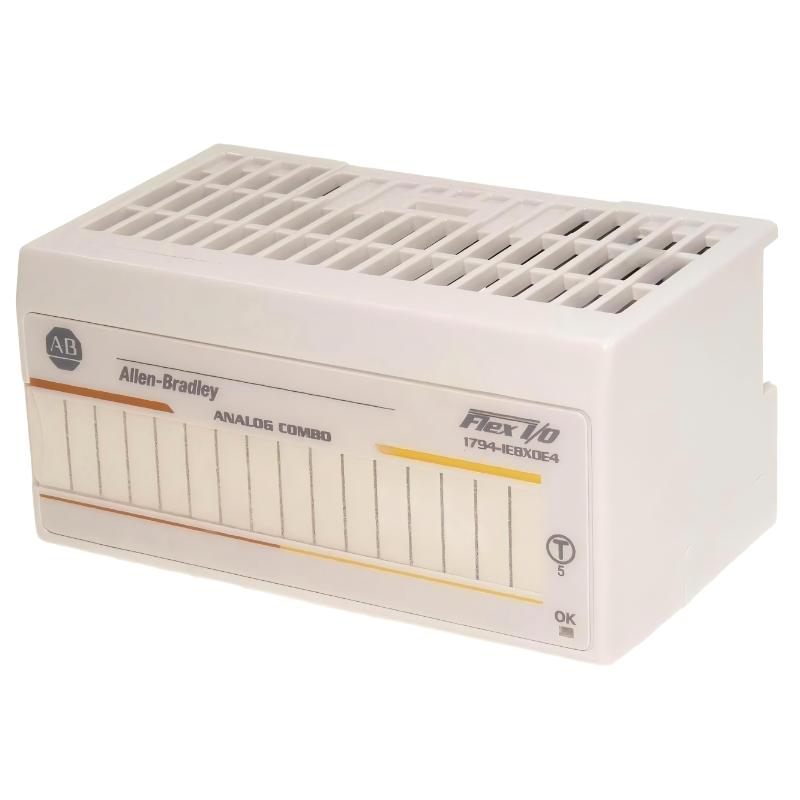

Allen Bradley 1794-IE8XOE4 Flex I/O Analog Combination Module

Applications

• Distributed analog signal acquisition in Flex I/O systems
Used to collect and process multiple analog input and output signals in modular industrial control architectures.

• Process automation and continuous control systems
Common in chemical, water treatment, and energy applications where stable analog control is required.

• Machine-level analog monitoring and control
Supports signal handling for pressure, flow, temperature transmitters, and actuator control devices.

• Industrial system expansion and retrofit projects
Ideal for upgrading existing Flex I/O installations without redesigning the full control architecture.

• Mixed-signal control in compact automation panels
Enables both analog input monitoring and analog output control within a single module.

Key Advantages

• Combined analog input and output functionality
Integrates 8 input channels and 4 output channels in one module, reducing hardware footprint.

• High-resolution signal processing
Supports precise analog data acquisition and control for stable industrial performance.

• Flexible integration with Flex I/O architecture
Seamlessly connects with Rockwell Automation Flex adapters and PLC systems.

• Industrial-grade reliability
Designed to maintain accuracy and stability in electrically noisy and harsh environments.

• Efficient system design and reduced wiring complexity
Consolidates multiple analog functions into a single compact module.

Technical FAQs

Q1: What type of signals does the 1794-IE8XOE4 handle?
It supports both analog input and analog output signals.

Q2: How many channels does it provide?
It provides 8 analog inputs and 4 analog outputs.

Q3: What type of control systems is it used with?
It is used in Allen-Bradley Flex I/O distributed control systems.

Q4: Can it be used for process control applications?
Yes, it is commonly used in process automation systems.

Q5: Does it support current and voltage signals?
Yes, it supports standard industrial analog signal types.

Q6: Is it suitable for standalone use?
No, it must operate within a Flex I/O system.

Q7: Can it be used in harsh environments?
Yes, it is designed for industrial noise and temperature conditions.

Q8: Does it require configuration in PLC software?
Yes, module parameters must be configured in the control system.

Q9: Can it be replaced during operation?
It depends on system setup and maintenance procedures.

Q10: Is it compatible with modern Ethernet/IP systems?
It is primarily used in Flex I/O architectures, not as a standalone Ethernet device.
