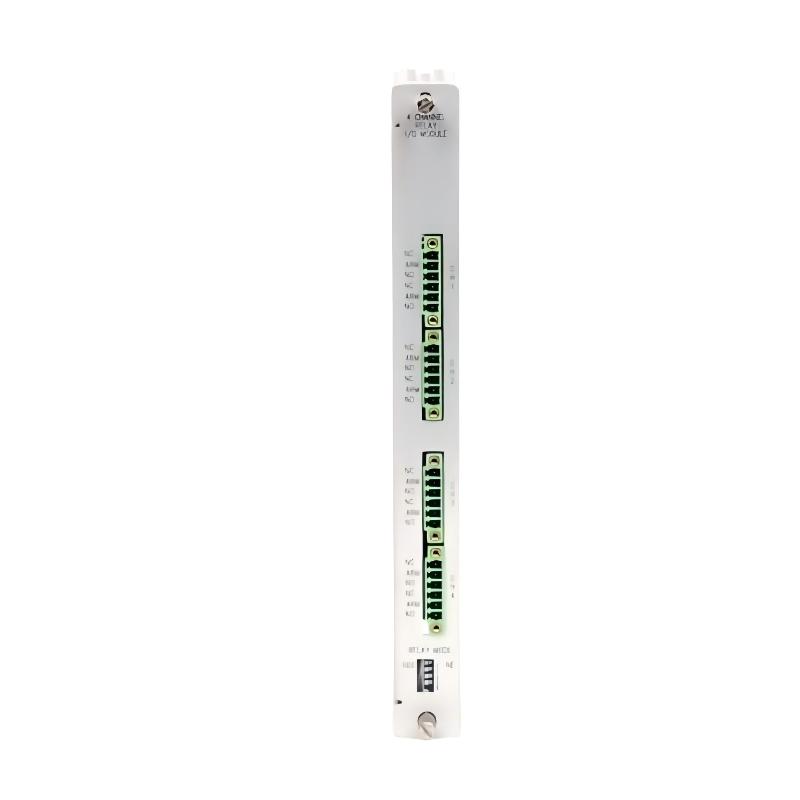

Bently Nevada 3500/32 125712-01+125720-01 4 Channel Relay Module

Applications

The Bently Nevada 3500/32 4 Channel Relay Module is used in industrial machinery monitoring systems to provide reliable alarm and trip signaling. It is typically installed in turbines, compressors, generators, and other critical rotating equipment where automated response to vibration, speed, or position faults is essential. The module supports both new 3500 Series installations and retrofits, enabling coordinated safety and protection actions across multiple monitored channels.

Advantages

This relay module delivers dependable and precise switching of alarms and trips in response to system events. It features four channels for independent control, offering flexibility in system configuration. Designed for robust industrial performance, it operates reliably in high-vibration and electrically noisy environments. The modular design simplifies installation and maintenance while enhancing the safety and operational reliability of the machinery monitoring system.

Technical FAQs

1. What is the main function of the 3500/32 Relay Module?
It provides four independent channels for alarm and trip signaling in machinery monitoring systems.

2. Can this module be used with existing Bently Nevada 3500 Series racks?
Yes, it is fully compatible with 3500 Series systems for both new installations and retrofits.

3. How are the relays triggered?
Relays are activated by signals from monitored parameters such as vibration, speed, or Keyphasor inputs.

4. Is the module suitable for high-vibration industrial environments?
Yes, it is designed to maintain reliable operation under mechanical vibration and electrical noise.

5. Can each relay channel be configured independently?
Yes, each of the four channels can be configured separately to trigger different alarms or trips.

6. How does the module contribute to machinery protection?
It enables automatic alarm and trip actions, helping prevent equipment damage and unplanned downtime.

7. What types of relays are used in this module?
The module uses electromechanical relays suitable for industrial control applications.

8. Can the module interface with other 3500 Series monitoring modules?
Yes, it communicates directly with 3500 Series modules for coordinated protection actions.

9. How is the module mounted in a control system?
It is installed in standard 3500 Series rack slots, supporting organized system integration.

10. What applications benefit most from this 4 Channel Relay Module?
Applications requiring multi-channel alarm and trip signaling in rotating machinery monitoring systems benefit most.
