Brand:Bently Nevada PLC Item No.:3500/32 Product Origin:USA Product Dimensions:241 x 24.4 x 242 mm Product Weight:0.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

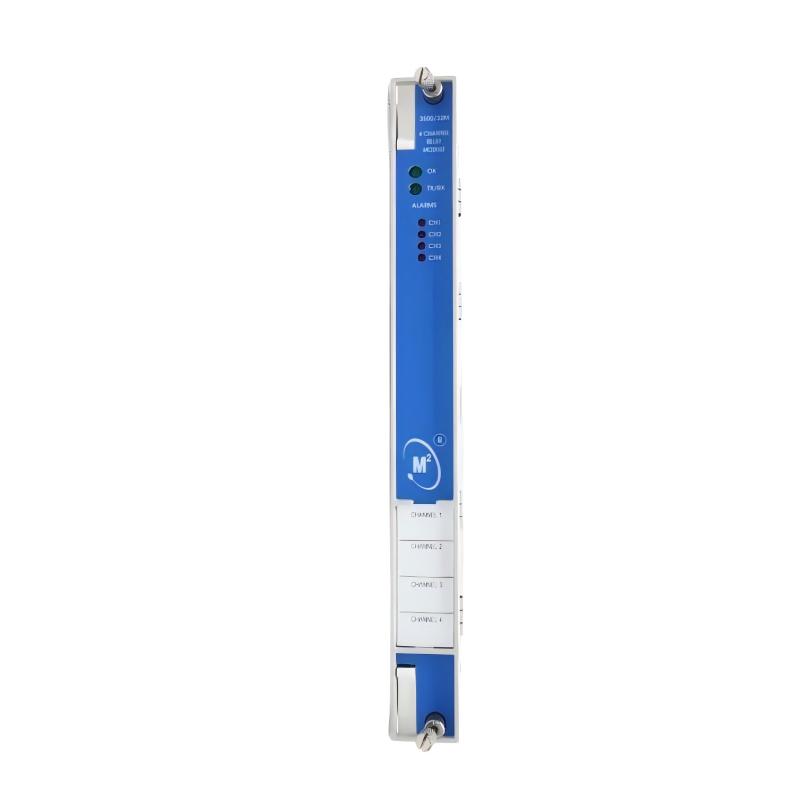

The Bently Nevada 4 Channel Relay Module is a critical component for reliable machinery protection. Designed for the 3500 Series monitoring system, it provides precise, independent relay outputs for alarms and trips. Its durable industrial construction, combined with flexible configuration, ensures dependable operation in harsh environments, safeguarding critical rotating equipment and enhancing system reliability.
Technical Specifications
Parameter
Description
Product Type
4 Channel Relay Module
Brand
Bently Nevada
Model
3500/32
Order Numbers
149986-02 + 125720-01
Function
Multi-channel alarm and trip signaling
System Compatibility
3500 Series Machinery Monitoring
Installation
Rack or control cabinet mounting
Operating Environment
Industrial machinery monitoring
Dimensions (W × H × D)
241 × 24.4 × 242 mm
Weight
0.7 kg
Recommended Related Models
Model
Module Type
Application Focus
Bently Nevada 3500/25
Keyphasor I/O Module
Shaft speed and phase detection
Bently Nevada 3500/20
Vibration Input Module
Continuous machinery monitoring
Bently Nevada 3500/10
Analog Input Module
Signal acquisition for vibration analysis
Bently Nevada 3500/45
Transient Capture Module
Event waveform recording
Bently Nevada 3500/55
Keyphasor Module
High-speed rotating equipment monitoring
Popular Related Models
Model
Category
Typical Application
Bently Nevada 3500/32M
Relay Module
Multi-channel alarm/trip control
Bently Nevada 3500/10
Analog Input Module
Vibration and speed acquisition
Bently Nevada 3500/25
Keyphasor I/O
Shaft phase detection
Bently Nevada 3500/40
Relay Output Module
General alarm/trip outputs
Bently Nevada 3500/05
Power Supply Module
Monitoring system power
Applications
The Bently Nevada 3500/32 4 Channel Relay Module is engineered for critical machinery monitoring systems, providing precise alarm and trip outputs for rotating equipment. It is widely used in turbines, compressors, and generators where multi-channel protection is required. The module supports integration in 3500 Series monitoring systems, facilitating system upgrades or new installations in power generation, petrochemical, and industrial automation applications.
Advantages
This relay module ensures reliable and fast activation of alarms and trips across four independent channels. Its rugged design withstands vibration, temperature variation, and electrical noise typical of industrial environments. The modular construction and external terminations simplify installation and maintenance, while the flexible channel configuration supports a wide range of protection strategies. By providing accurate and dependable relay outputs, it enhances equipment safety and operational reliability.
Technical FAQs
1. What is the primary function of the 3500/32 Relay Module?
It provides four independent channels for alarm and trip signaling in machinery monitoring systems.
2. Are the 149986-02 and 125720-01 components interchangeable?
They function together as a complete 4-channel relay module and are compatible within the 3500 Series system.
3. How are the relay channels triggered?
Relays are activated by monitored signals such as vibration, speed, Keyphasor, or other alarm conditions.
4. Can the module operate reliably in high-vibration environments?
Yes, it is designed to maintain consistent operation under industrial vibration and electrical interference.
5. Is each relay channel configurable independently?
Yes, all four channels can be configured for different alarms or trip thresholds.
6. How does the module support machinery protection?
It delivers timely alarm and trip outputs, helping prevent equipment damage and unplanned downtime.
7. What type of relays does the module use?
Electromechanical relays suitable for industrial control and protection applications are used.
8. Can the module interface with other Bently Nevada 3500 Series modules?
Yes, it integrates seamlessly with 3500 Series I/O, Keyphasor, and monitoring modules.
9. How is the module mounted within a system?
It is installed in standard 3500 Series rack slots for organized and secure integration.
10. What applications benefit most from this 4-channel relay module?
Rotating machinery monitoring in turbines, compressors, and generators benefits most, particularly where multi-channel alarm and trip outputs are required.
