Introduction

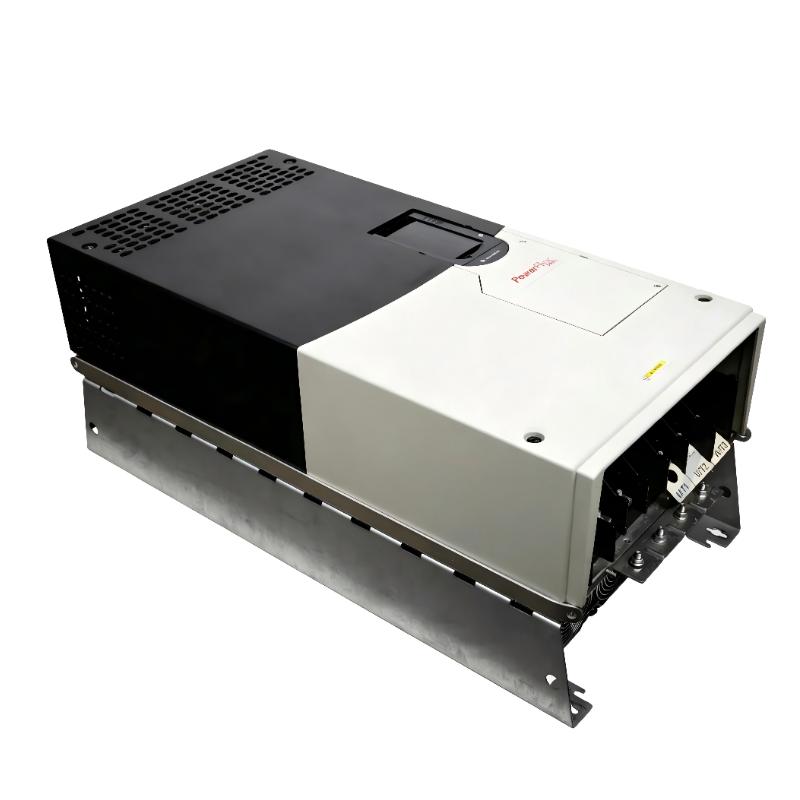

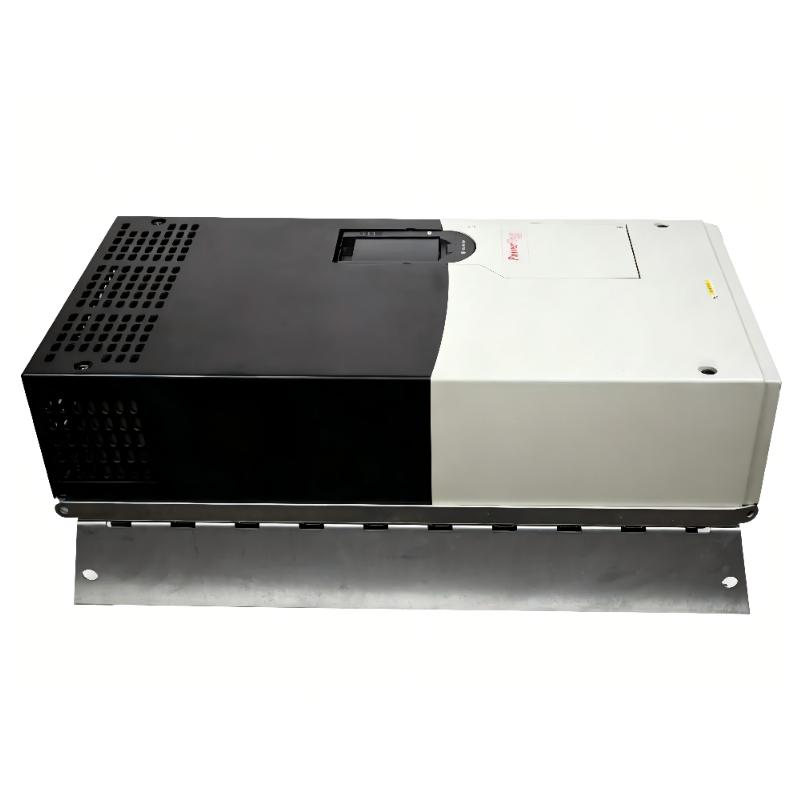

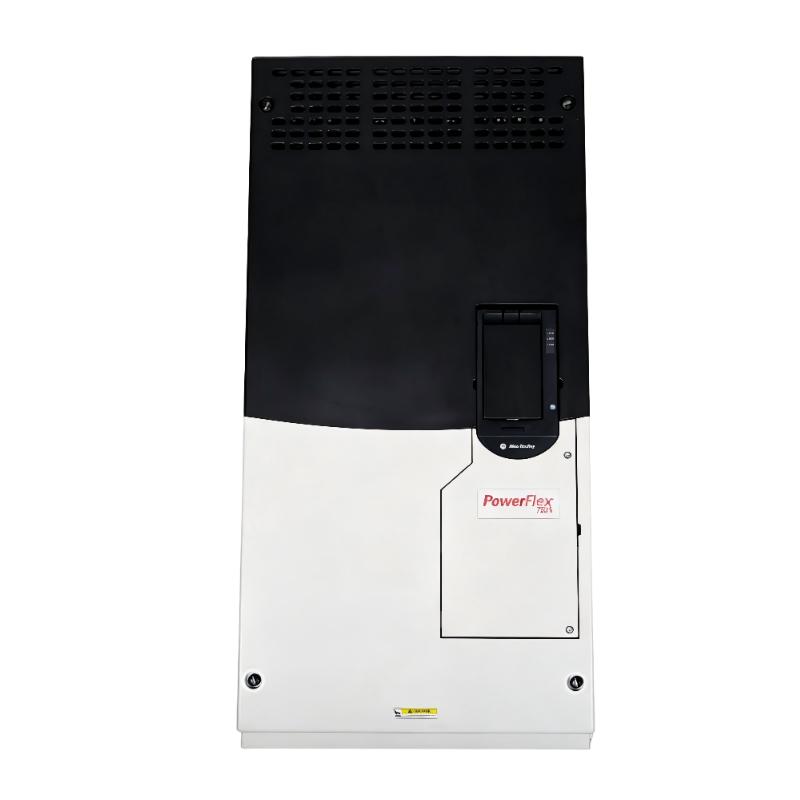

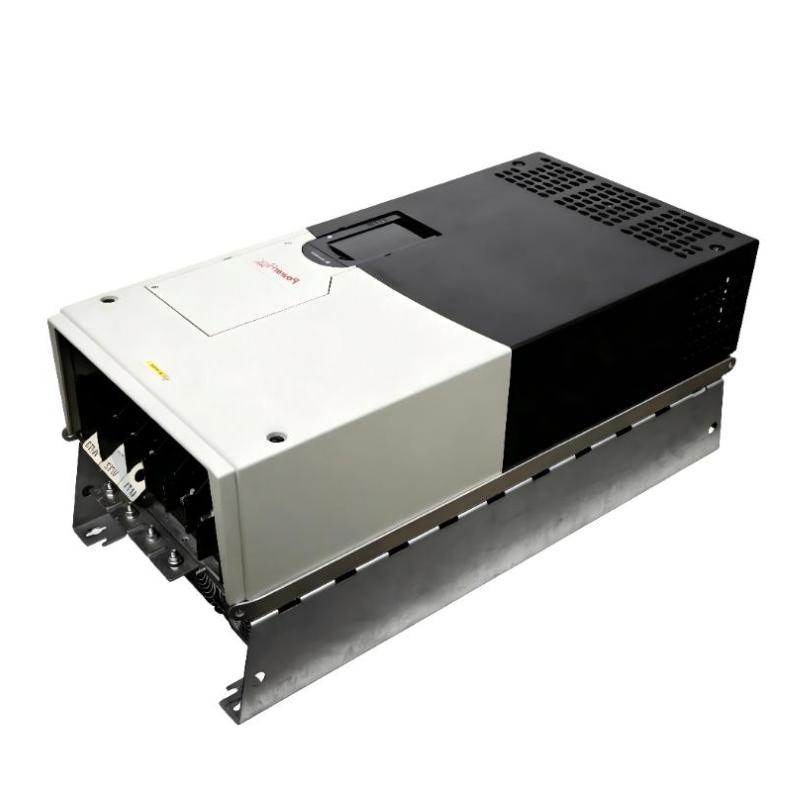

The 20F1ANC302JA0NNNNN PowerFlex 753 AC Drive is a high-power, industrial-grade drive engineered for large-scale automation systems requiring precise motor control. Its modular architecture allows integration with communication, safety, and monitoring modules to meet complex industrial requirements.

This drive ensures stable operation under high-load conditions and continuous use. Its energy-efficient design reduces operating costs, while the robust construction guarantees reliability and longevity in demanding industrial environments.

Technical Specifications

Parameter	Specification
Product Model	20F1ANC302JA0NNNNN
Drive Series	PowerFlex 753
Drive Type	AC Variable Frequency Drive
Dimensions	881.5 × 349.6 × 430 mm
Weight	79 kg (174.2 lb)
Input Type	Industrial AC Supply
Output Capacity	High-current industrial motor control
Installation Type	Panel-mounted system

Applications

The Allen-Bradley PowerFlex 753 AC Drive (20F1ANC302JA0NNNNN) is built for large-scale industrial motor control applications requiring high power, precise speed regulation, and reliable torque performance. It is ideal for operations that demand consistent performance under heavy loads and continuous duty cycles.

Typical applications include:

Large conveyors and material handling systems
High-capacity pumps and fans in process industries
Compressors and ventilation systems for energy and chemical plants
Heavy machinery in metals, mining, and manufacturing
Automation systems in large-scale production lines

This drive is designed for environments where uptime, reliability, and energy efficiency are critical for operational success.

Advantages

The 20F1ANC302JA0NNNNN drive combines robust design, high-power capability, and advanced motor control:

High-current output for demanding industrial applications
Advanced motor control for smooth acceleration and precise torque
Modular architecture supporting communication and safety modules
Integrated diagnostics to reduce downtime and facilitate predictive maintenance
Energy-efficient operation for cost-effective industrial performance
Rugged construction suitable for harsh industrial environments
Simplified integration with industrial automation and PLC systems

Its design ensures operational reliability even in high-demand, continuous-duty environments.

Technical FAQ (10 Questions)

Q1: What motors can this drive control?
A1: It supports three-phase AC induction motors and can be configured for synchronous motors in certain setups.

Q2: Can it handle high-torque applications?
A2: Yes, it is optimized for high-torque loads such as conveyors, pumps, and compressors.

Q3: Does it support industrial communication networks?
A3: Yes, with optional modules, it can connect to EtherNet/IP, PROFIBUS, Modbus RTU, and other industrial protocols.

Q4: Is it suitable for continuous operation?
A4: Yes, it is designed for continuous industrial duty cycles with high reliability.

Q5: Are there built-in protection features?
A5: Yes, it provides protection against overload, overvoltage, undervoltage, and thermal events.

Q6: Can it integrate with PLC systems?
A6: Yes, it is fully compatible with PLC-based automation systems.

Q7: Does it support parameter backup and restoration?
A7: Yes, parameters can be saved and restored using authorized configuration tools.

Q8: Is firmware upgrade supported?
A8: Yes, firmware can be updated through compatible engineering software.

Q9: Can it operate in harsh industrial environments?
A9: Yes, it is designed to handle vibration, temperature fluctuations, and electrical noise.

Q10: What installation method is recommended?
A10: Panel-mounted installation is recommended, with modular options for communication and safety modules.
