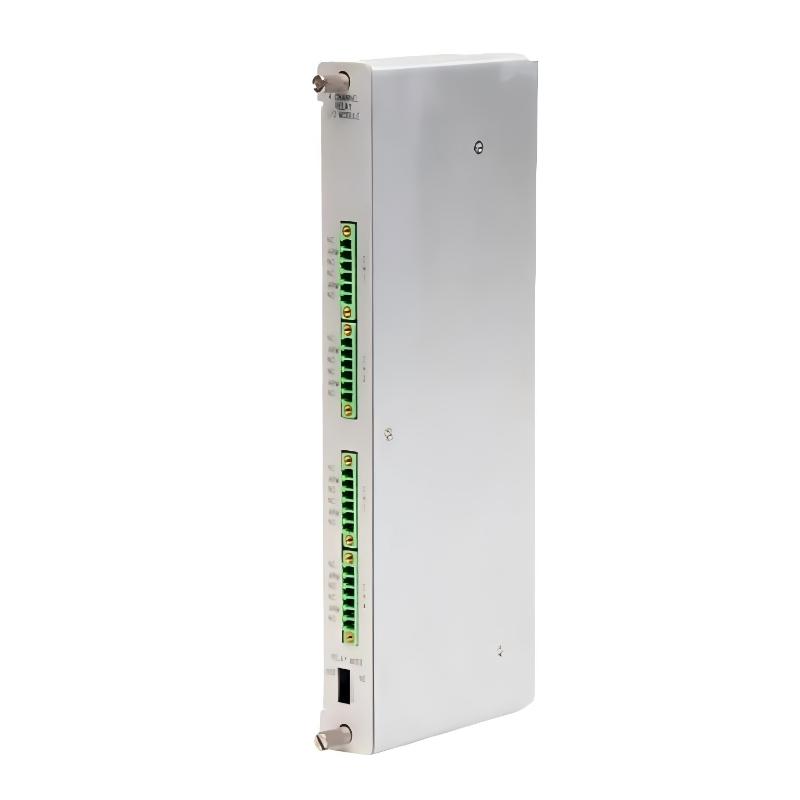

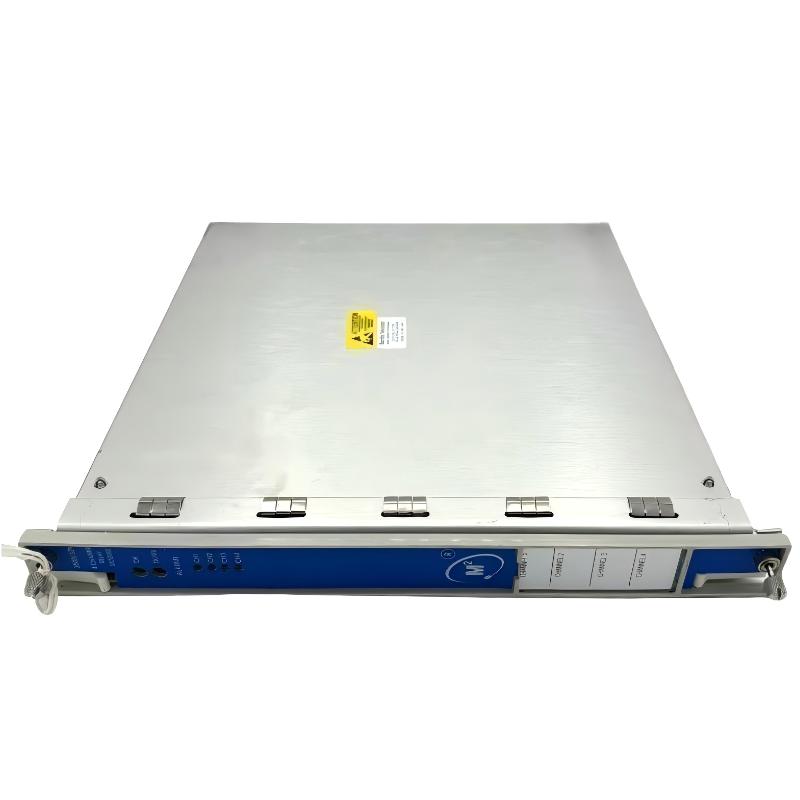

Bently Nevada 3500/32 149986-02+125720-02 4 Channel Relay Module

Applications

The Bently Nevada 3500/32 4 Channel Relay Module is designed for high-reliability alarm and trip signaling in machinery monitoring systems. It is primarily used with turbines, compressors, and generators, providing protection for critical rotating equipment. The module integrates with 3500 Series systems, supporting both retrofits and new installations, and is ideal for industrial environments such as power generation, petrochemical plants, and heavy manufacturing where multi-channel protection is essential.

Advantages

This relay module provides dependable activation of alarms and trips across four independent channels. It is engineered to operate reliably under harsh industrial conditions including vibration, temperature fluctuations, and electrical noise. The flexible channel configuration allows customized protection strategies, while the modular design with external terminations simplifies installation and maintenance. The module ensures timely response to abnormal machinery conditions, enhancing operational safety and reliability.

Technical FAQs

1. What is the primary function of the 3500/32 Relay Module?
It delivers four independent channels for alarm and trip outputs in machinery monitoring systems.

2. What do the part numbers 149986-02 and 125720-02 represent?
These numbers identify the relay module components, including the relay board and associated hardware for proper installation in 3500 Series racks.

3. Can the module be integrated into existing 3500 Series systems?
Yes, it is fully compatible with Bently Nevada 3500 Series monitoring systems for both upgrades and new setups.

4. How are the relays triggered?
Relays are activated by signals from monitored parameters such as vibration, shaft speed, or Keyphasor inputs.

5. Is the module suitable for high-vibration environments?
Yes, it is designed for industrial environments with mechanical vibration and electrical noise.

6. Can each relay channel be configured independently?
Yes, all four channels can be configured separately for different alarms or trips.

7. How does the module contribute to machinery protection?
By delivering reliable alarm and trip outputs, it helps prevent equipment damage and unplanned downtime.

8. What type of relays are used?
Electromechanical relays suitable for industrial alarm and trip applications.

9. How is the module mounted in the system?
It is installed in standard 3500 Series rack slots for organized and secure integration.

10. Which applications benefit most from this module?
Rotating machinery monitoring in turbines, compressors, and generators benefits most, especially where multi-channel alarm/trip outputs are required.
