Brand:Bently Nevada PLC Item No.:3500/42 Product Origin:USA Product Dimensions:241.3 x 24.4 x 241.8 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

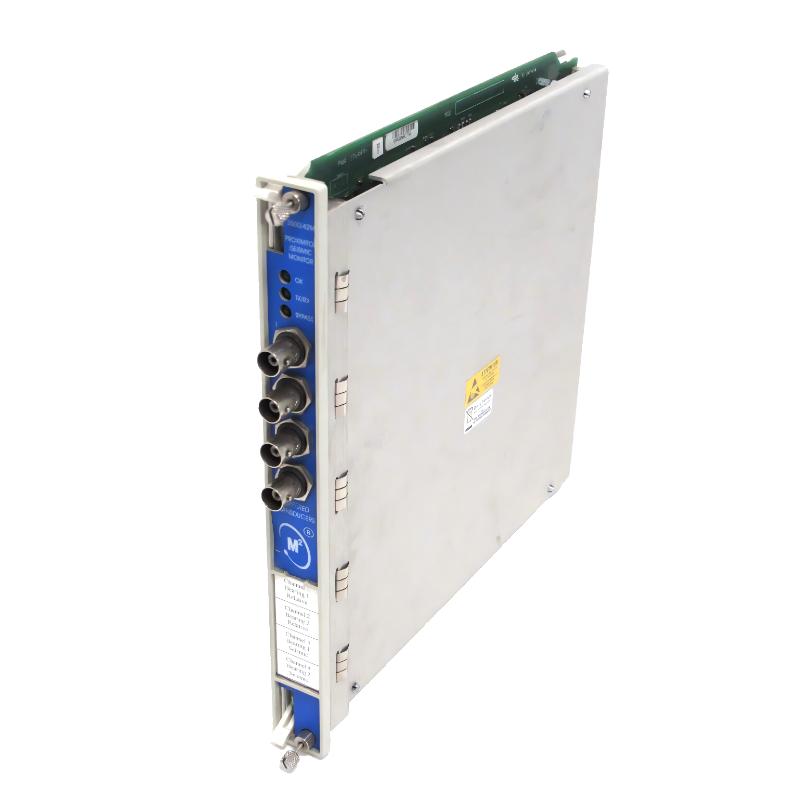

The Bently Nevada 3500/40M 176449-01+135489-04 Proximitor Monitor is a high-precision module for monitoring shaft displacement and vibration in industrial machinery. Compatible with 3500 Series monitoring systems, it provides real-time, reliable data for machinery protection and predictive maintenance. Its rugged design, modular construction, and accurate performance make it essential for turbines, compressors, generators, and other critical rotating equipment.
Technical Specifications
Parameter
Description
Product Type
Proximitor Monitor
Brand
Bently Nevada
Model
3500/40M
Order Numbers
176449-01 + 135489-04
Function
Shaft displacement and vibration monitoring
System Compatibility
3500 Series Machinery Monitoring
Installation
Rack or control cabinet mounting
Operating Environment
Industrial machinery monitoring
Dimensions (W × H × D)
241.3 × 24.4 × 241.8 mm
Weight
0.91 kg
Recommended Related Models
Model
Module Type
Application Focus
Bently Nevada 3500/25
Keyphasor I/O Module
Shaft speed and phase detection
Bently Nevada 3500/20
Vibration Input Module
Continuous machinery monitoring
Bently Nevada 3500/10
Analog Input Module
Signal acquisition for vibration analysis
Bently Nevada 3500/32
Relay Module
Alarm and trip signaling
Bently Nevada 3500/55
Keyphasor Module
High-speed rotating equipment monitoring
Popular Related Models
Model
Category
Typical Application
Bently Nevada 3500/40
Proximitor Monitor
Shaft vibration and displacement measurement
Bently Nevada 3500/32M
Relay Control Module
Multi-channel alarm/trip outputs
Bently Nevada 3500/25
Keyphasor I/O
Shaft phase detection
Bently Nevada 3500/10
Analog Input Module
Machinery signal acquisition
Bently Nevada 3500/05
Power Supply Module
Monitoring system power
Applications
The Bently Nevada 3500/40M Proximitor Monitor is designed for precise shaft displacement and vibration monitoring in critical rotating machinery. It is widely used in turbines, compressors, and generators across power generation, petrochemical, and industrial facilities. The module integrates with 3500 Series systems, providing essential data for machinery protection, diagnostics, and predictive maintenance, ensuring reliable operation of high-value equipment.
Advantages
This Proximitor monitor delivers highly accurate and stable measurements of shaft position and vibration. Its robust industrial design ensures reliable operation in harsh environments with vibration, electrical noise, and temperature variations. The modular configuration allows for easy installation and maintenance, while the external connectivity simplifies wiring. By providing real-time data for machinery protection, the module enhances predictive maintenance, reduces unplanned downtime, and improves overall system reliability.
Technical FAQs
1. What is the primary function of the 3500/40M Proximitor Monitor?
It measures shaft displacement and vibration to provide critical data for machinery monitoring and protection.
2. Can this module be integrated into existing 3500 Series systems?
Yes, it is fully compatible with Bently Nevada 3500 Series monitoring racks and modules.
3. What sensors are supported by the module?
It supports Proximitor probes for precise shaft position and vibration detection.
4. How does the module perform in high-vibration industrial environments?
It is engineered to maintain accurate measurements despite mechanical vibration and electrical interference.
5. Does the module provide real-time monitoring?
Yes, it delivers continuous real-time displacement and vibration data for diagnostics and protection.
6. How is the module mounted in a monitoring system?
It installs in standard 3500 Series rack slots for secure and organized integration.
7. How many channels can the module monitor?
It monitors multiple Proximitor probe inputs depending on system configuration.
8. How does this module support predictive maintenance?
By supplying accurate shaft vibration and position data, it helps detect early signs of wear or misalignment.
9. Is the module suitable for industrial temperature ranges?
Yes, it is designed to operate reliably under typical industrial temperature variations.
10. Which applications benefit most from this Proximitor monitor?
Rotating machinery in turbines, compressors, and generators benefits most, especially where accurate real-time shaft position and vibration monitoring is required.
