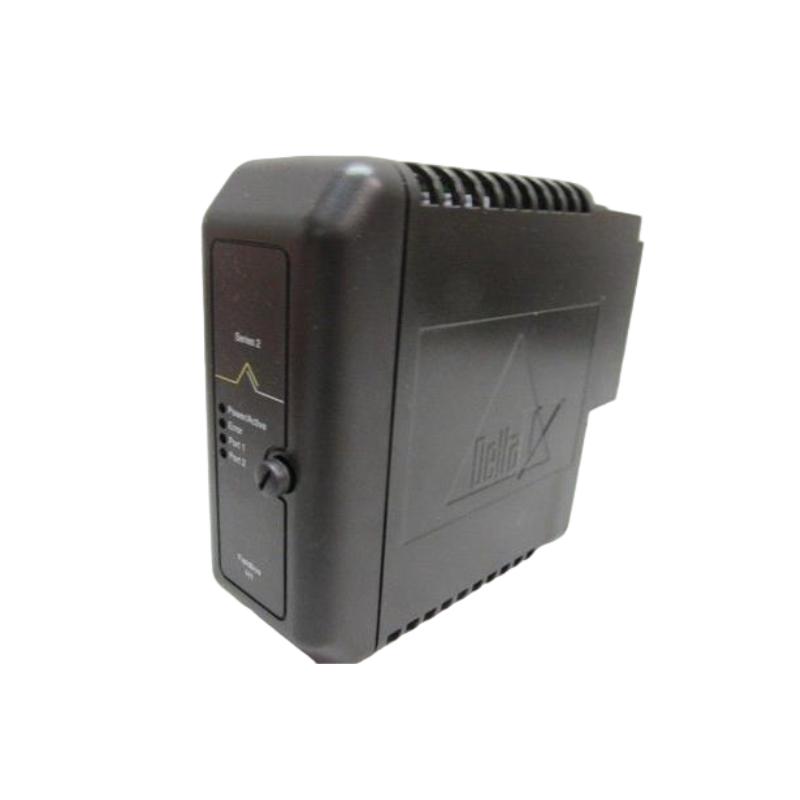

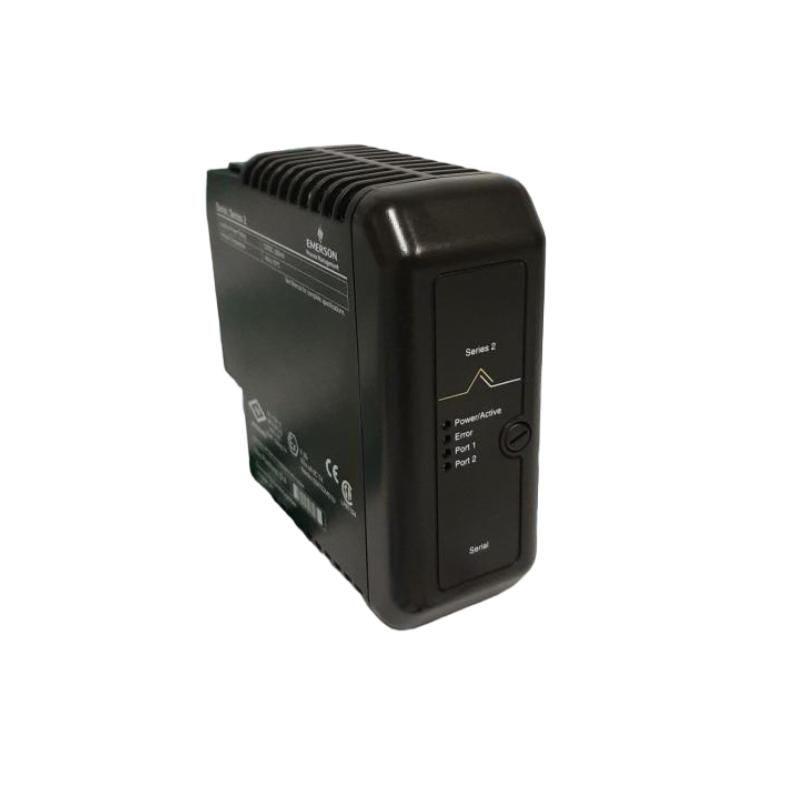

The Emerson VE4005S2B2 (KJ3221X1-BA1 + KJ4001X1-CB1) is a DeltaV Series 2 Analog Output (AO) Module designed for precise control of field devices in industrial automation systems. It converts digital control signals from the DeltaV Distributed Control System (DCS) into 4–20 mA analog output signals for actuators, control valves, positioners, recorders, and other process control equipment. The module supports HART communication and includes a fused I/O termination block for enhanced field circuit protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4005S2B2 |
| I/O Card | KJ3221X1-BA1 |
| Termination Block | KJ4001X1-CB1 |
| Product Type | Analog Output Module (AO) |
| System Platform | DeltaV Series 2 I/O |
| Output Channels | 8 channels |
| Output Signal | 4–20 mA |
| HART Communication | Supported |
| Redundancy | Supported (Series 2 redundant architecture) |
| Output Type | Isolated analog output |
| LocalBus Power | 12 VDC @ 150 mA |
| Field Power | 24 VDC @ 300 mA |
| Field Circuit Rating | 24 VDC @ 23 mA |
| Diagnostics | Output status, channel diagnostics, HART device diagnostics |
| Mounting Method | DeltaV carrier-mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Protection | Industrial-grade EMC immunity |
| IP Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 160 × 130 × 40 mm |
| Net Weight | Approx. 0.2 kg |
Key Features
- 8 independent analog output channels
- Standard 4–20 mA output for process control devices
- HART-enabled device communication and diagnostics

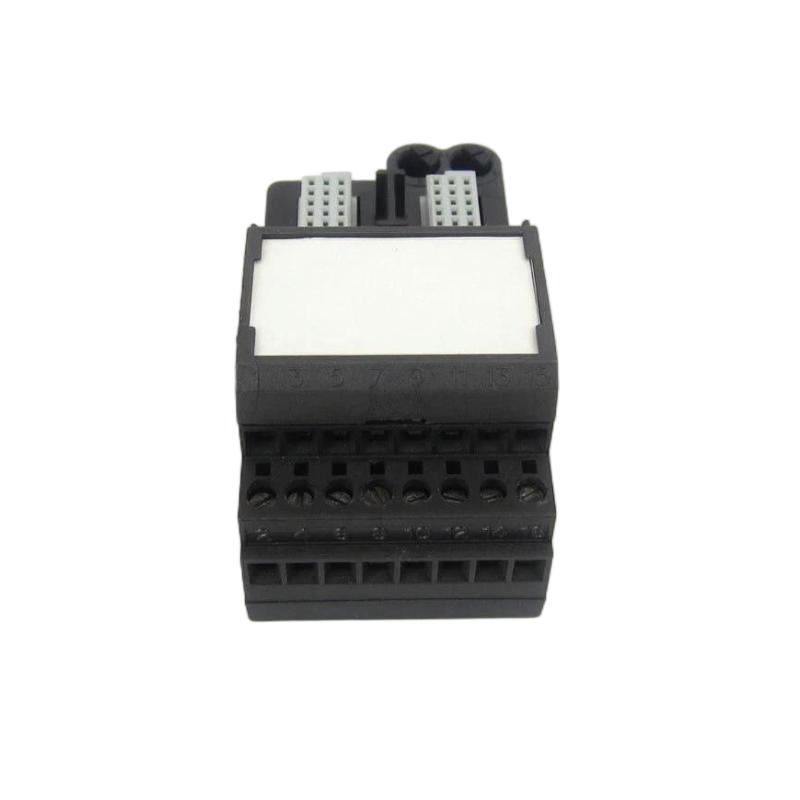

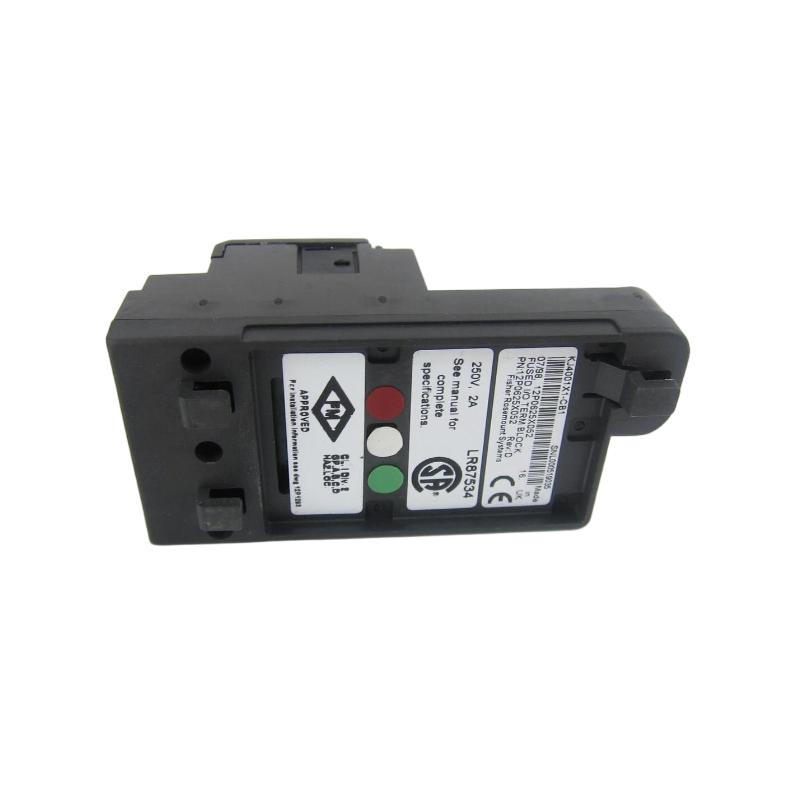

- Fused termination block (KJ4001X1-CB1) for field circuit protection
- Supports DeltaV Series 2 redundant I/O architecture
- High accuracy and long-term stability
- Built-in diagnostics for improved maintenance efficiency
- Designed for continuous industrial operation
