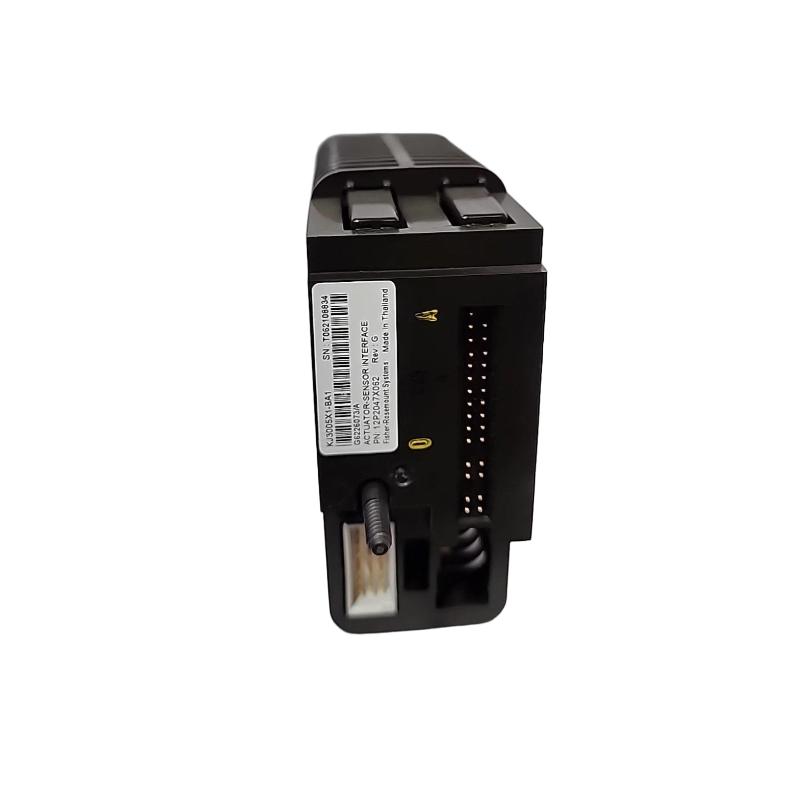

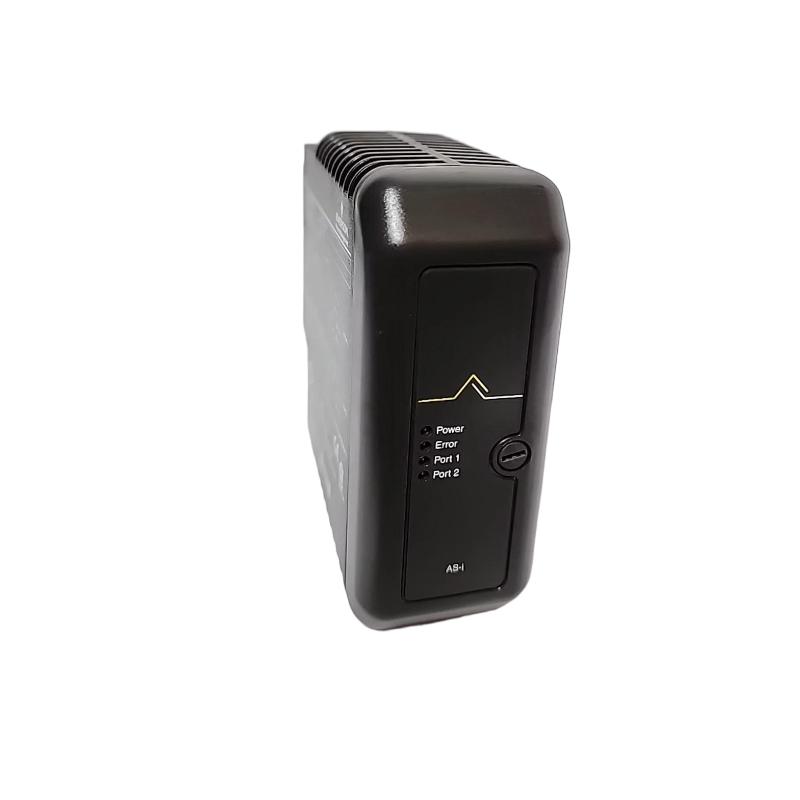

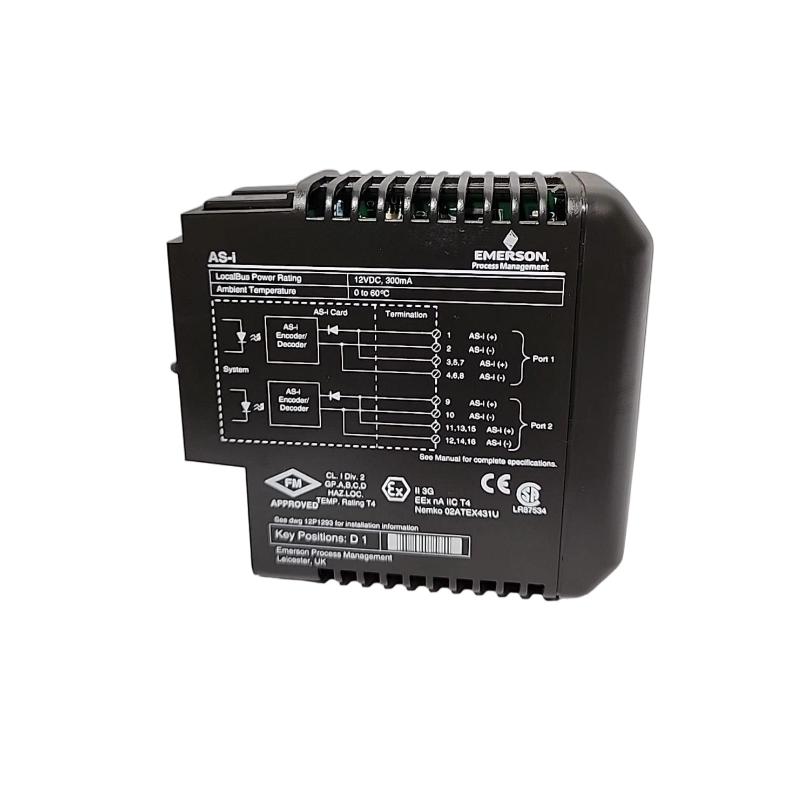

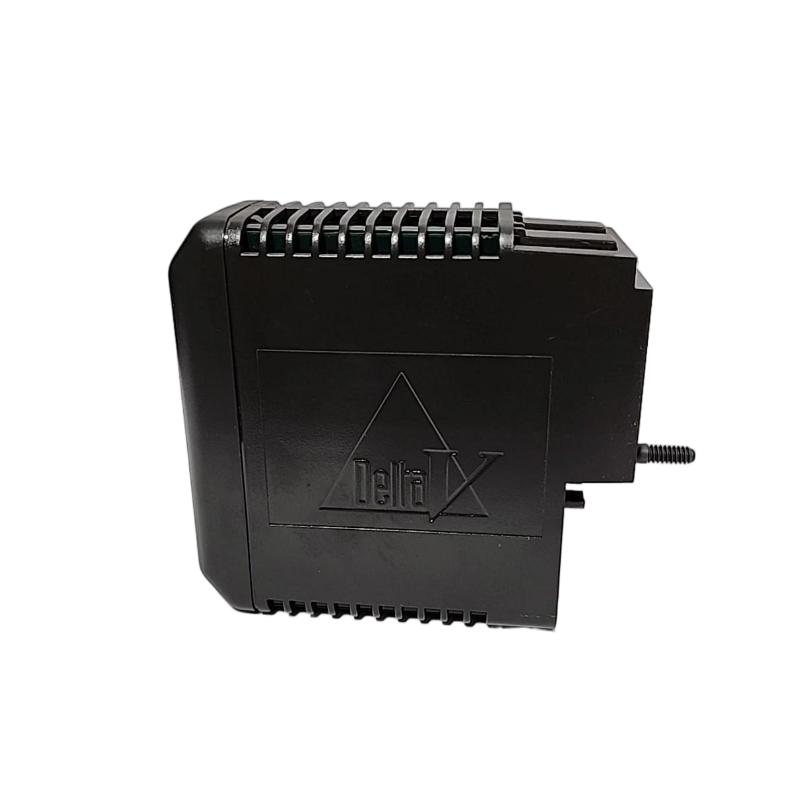

The Emerson VE4009 (KJ3245X1-BA1 + 12P4082X022) is a DeltaV M-Series AS-i (Actuator Sensor Interface) Card designed to connect the DeltaV Distributed Control System (DCS) to AS-Interface (AS-i) field networks. It provides a communication gateway between DeltaV controllers and intelligent field devices such as sensors, actuators, valve islands, and distributed I/O devices.
The module enables cost-effective integration of multiple field devices over a single AS-i network cable, reducing wiring complexity and installation costs in industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4009 |
| Part Number | KJ3245X1-BA1 |
| Alternate Number | 12P4082X022 |
| Product Type | AS-i Interface Card |
| System Platform | DeltaV M-Series |
| Communication Protocol | AS-Interface (AS-i) |
| Function | Sensor and actuator network communication |
| Field Device Support | Sensors, actuators, valve manifolds, remote I/O |
| Mounting Method | DeltaV carrier-mounted |
| Integration | DeltaV DCS |
| Diagnostics | Network and device diagnostics |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5–95% non-condensing |
| Protection Rating | IP20 |
The official Emerson M-Series documentation identifies VE4009 as an Actuator Sensor Interface (AS-i) Card.
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Weight | Approximately 0.2 kg |
| Installation | Standard DeltaV M-Series carrier |
Key Features
- AS-i network master interface for DeltaV
- Connects multiple field devices using a single communication cable
- Reduces field wiring costs
- Supports distributed sensor and actuator architectures
- Integrated diagnostics for device and network health
- Seamless DeltaV engineering and configuration support
- Reliable industrial communication performance
- Simplifies installation and maintenance
