Brand:Emerson Module Item No.:Emerson VE4012S2B1 Product Origin:USA Product Dimensions:263 × 58 × 28 mm Product Weight:0.43 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

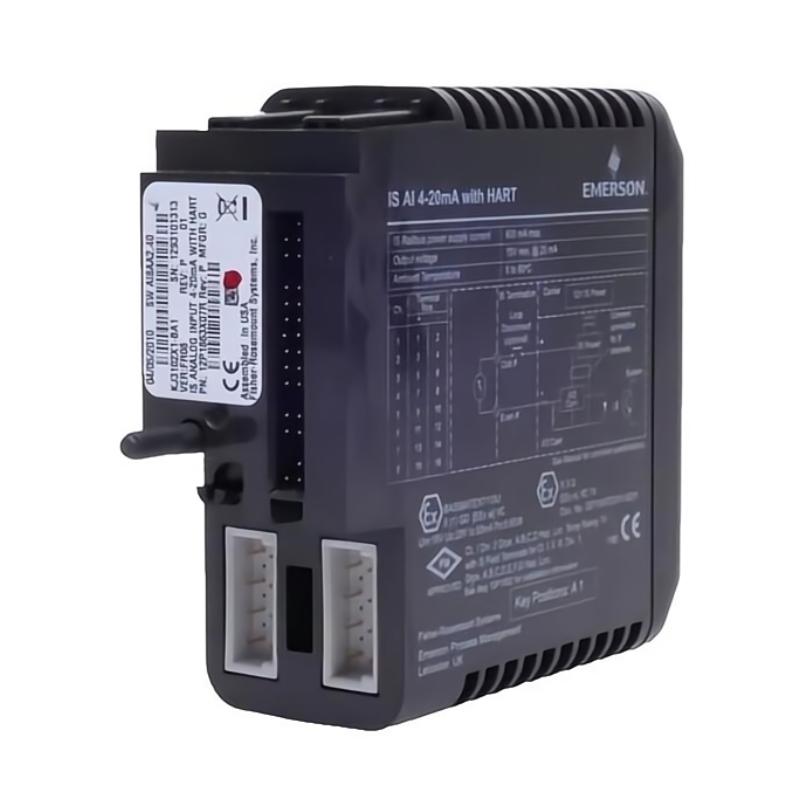

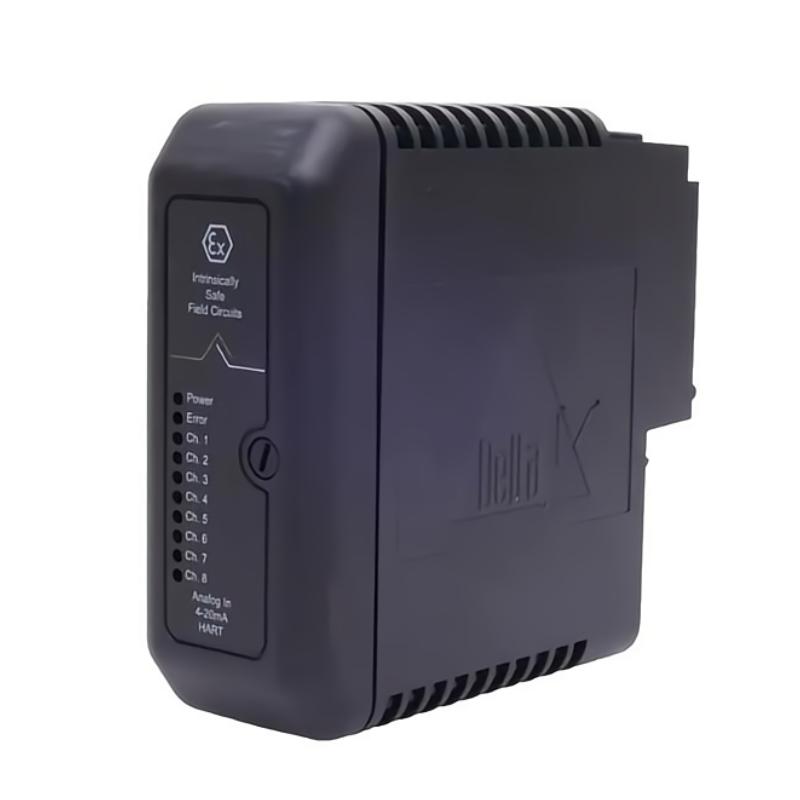

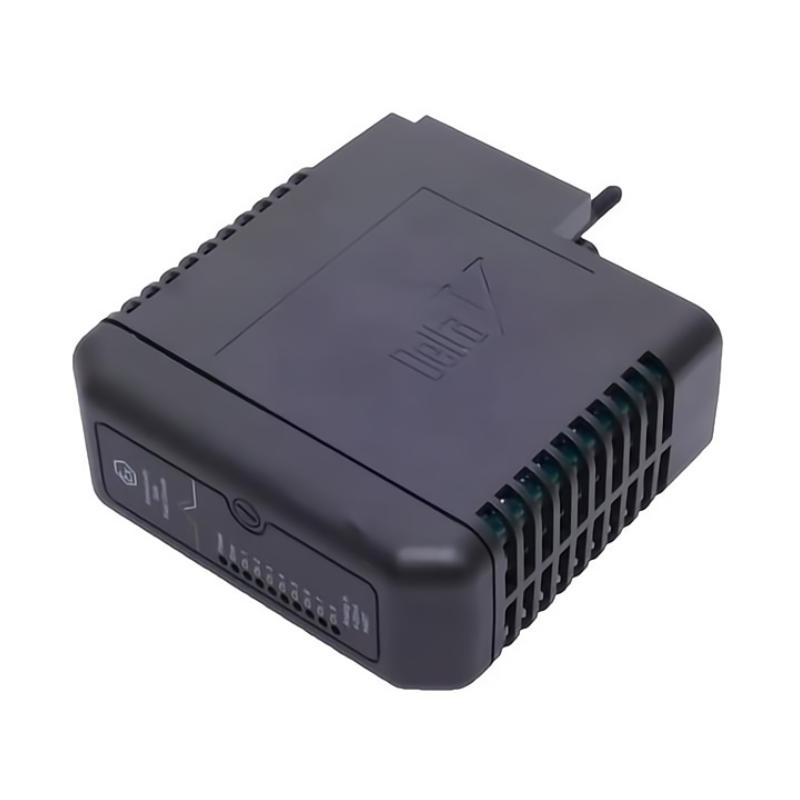

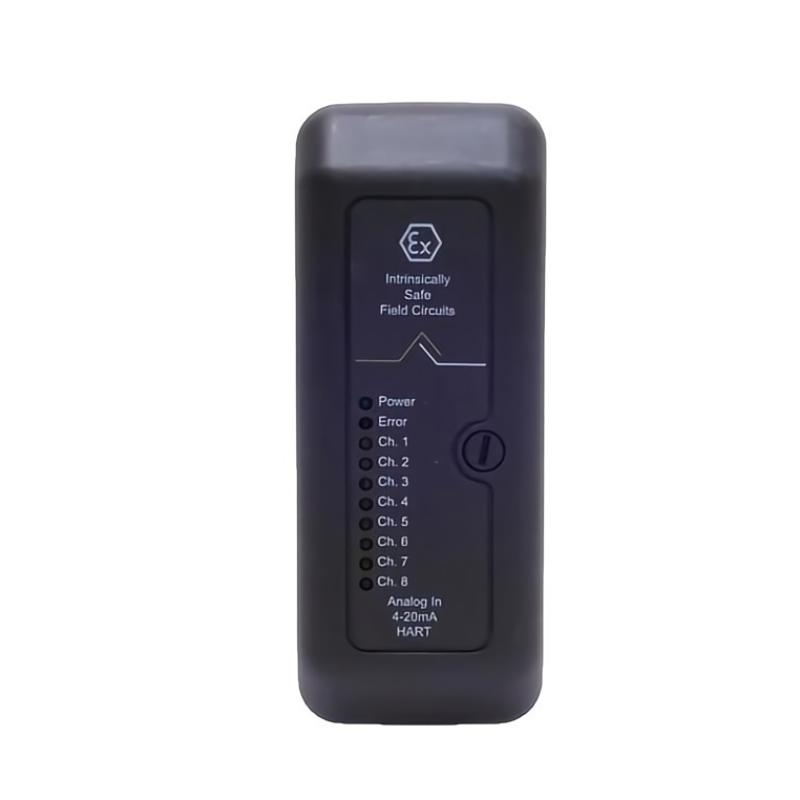

The Emerson VE4012S2B1 is a Standard I/O Termination Block used in the DeltaV M-Series Traditional I/O subsystem. It provides field wiring termination and signal routing between field devices and DeltaV I/O cards. The module is designed for 8-channel 4–20 mA HART applications, ensuring secure field connections and simplified maintenance.
Technical Specifications
Parameter
Specification
Manufacturer
Emerson
Model
VE4012S2B1
Product Type
Standard I/O Termination Block
System Platform
DeltaV M-Series Traditional I/O
Supported Signals
4–20 mA Analog Signals
HART Communication
Supported
Channel Capacity
8 Channels
Mounting Type
DeltaV Traditional I/O Carrier
Protection Rating
IP20
Operating Temperature
-40°C to +70°C
Storage Temperature
-40°C to +85°C
Relative Humidity
5–95% RH, Non-Condensing
Conformal Coating
ISA-S71.04 Class G3
Shock Rating
10 g, 11 ms Half-Sine Wave
Physical Dimensions & Weight
Parameter
Specification
Dimensions (L × W × H)
263 × 58 × 28 mm
Weight
Approx. 0.43 kg
Key Features
8-channel analog signal termination
Supports 4–20 mA HART field devices
Plug-and-play DeltaV Traditional I/O design
Field wiring protection keys prevent incorrect module installation
Modular architecture for easy system expansion
Simplified maintenance and replacement
High reliability in harsh industrial environments
Fully compatible with DeltaV M-Series systems
Applications
Oil & Gas
Termination of pressure, flow, level, and temperature transmitters.
Chemical & Petrochemical
Field signal wiring for process instrumentation.
Power Generation
Connection of analog transmitters and monitoring devices.
Water & Wastewater
Integration of process measurement instruments.
General Process Automation
Reliable termination of HART-enabled field devices.
Advantages
Simplifies field wiring management
Reduces installation time
Supports HART communication infrastructure
Modular DeltaV architecture
High system reliability
Easy maintenance and replacement
Suitable for distributed installation near field devices
Technical FAQs
1. What is VE4012S2B1?
It is a DeltaV M-Series Standard I/O Termination Block for analog field signals.
2. Is VE4012S2B1 an I/O card?
No. It is a termination block used with DeltaV I/O cards.
3. How many channels does it support?
It supports 8 channels.
4. Does it support HART devices?
Yes. It is designed for 4–20 mA HART applications.
5. Which DeltaV platform uses this termination block?
DeltaV M-Series Traditional I/O systems.
6. What is the operating temperature range?
-40°C to +70°C.
7. What are the dimensions?
263 × 58 × 28 mm (L × W × H).
8. What is the weight?
Approximately 0.43 kg.
9. What is the primary function?
To provide secure field wiring termination and signal routing between field instruments and DeltaV I/O modules.
10. Why is it widely used?
Because it offers a reliable, modular, and maintenance-friendly connection method for analog and HART field devices in DeltaV control systems.
