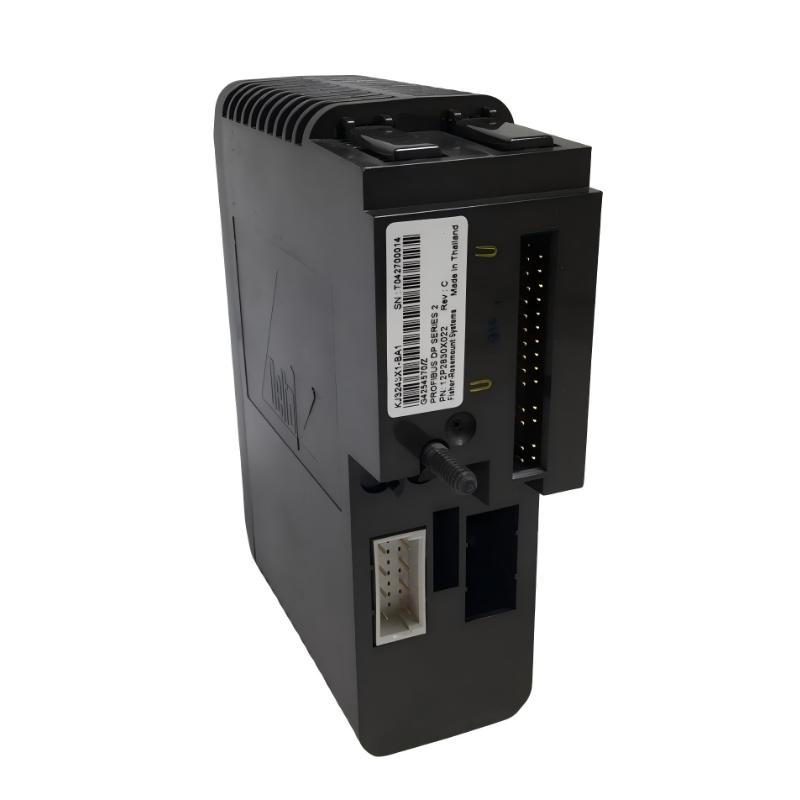

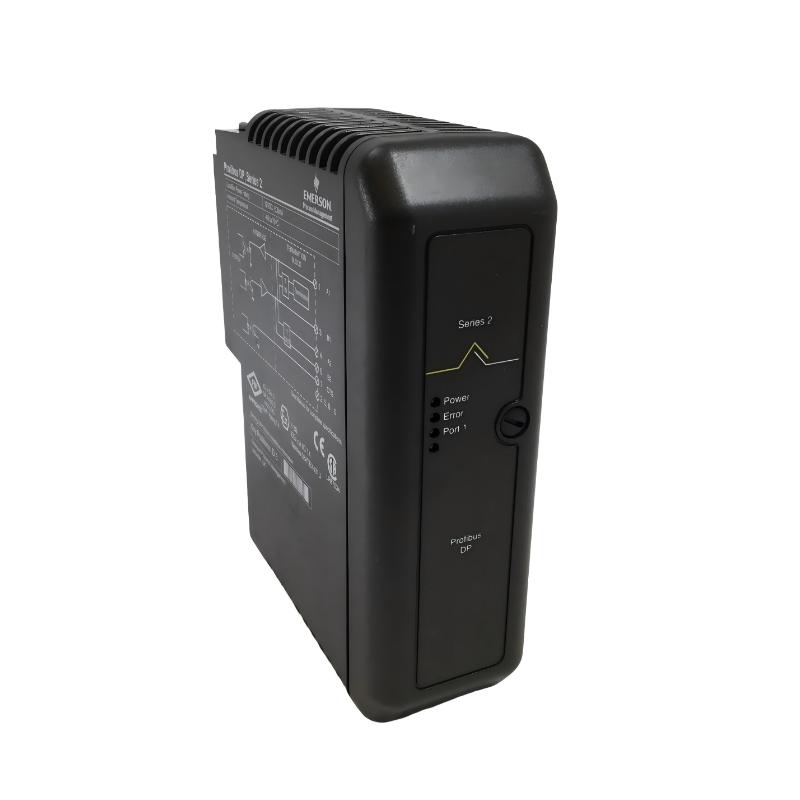

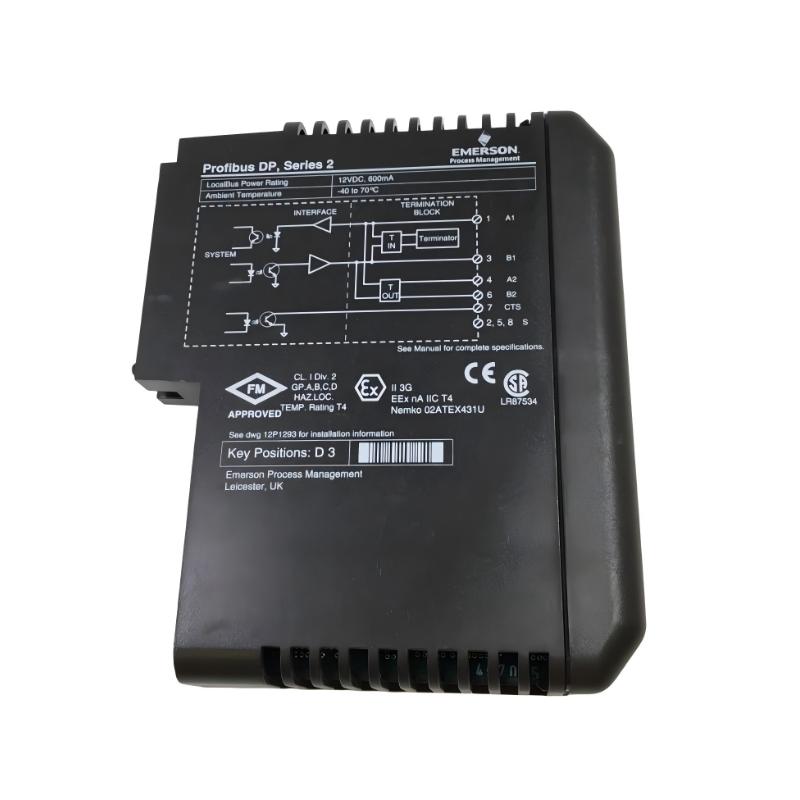

The Emerson VE4014 is a DeltaV M-Series communication interface module used to connect the DeltaV Distributed Control System (DCS) with Profibus DP field networks. It enables high-speed, deterministic communication between DeltaV controllers and Profibus-enabled devices such as remote I/O stations, drives, analyzers, and third-party PLC systems.

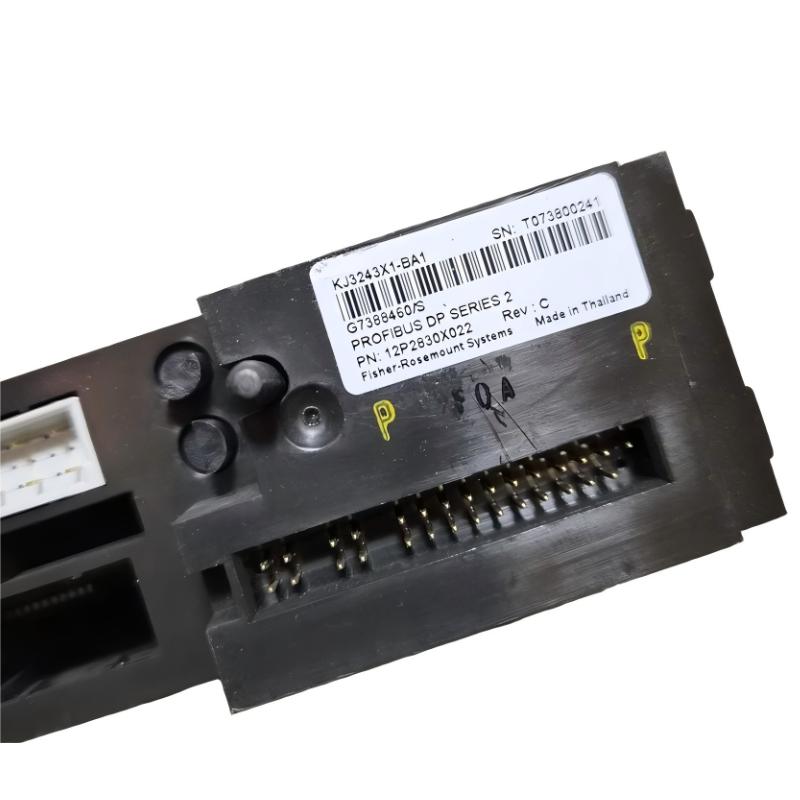

This module is based on the KJ3243X1-BA1 interface card with 12P2830X022 assembly, and is widely used for integrating external automation systems into DeltaV architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4014 |
| I/O Card | KJ3243X1-BA1 |
| Assembly Number | 12P2830X022 |
| Product Type | Profibus DP Interface Module |
| System Platform | DeltaV M-Series |
| Communication Protocol | Profibus DP (IEC 61158) |
| Max Data Rate | Up to 12 Mbps |
| Number of Channels | 1 Profibus DP network (multi-device support via bus) |
| Supported Devices | Remote I/O, PLCs, drives, analyzers |
| Function | Communication gateway between DeltaV and Profibus networks |
| Diagnostics | Network status, device diagnostics, fault detection |
| Mounting Type | DeltaV M-Series carrier-mounted |
| Power Consumption | < 5 W |
| Isolation | Industrial signal isolation (system dependent design) |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 5–95% RH, non-condensing |
| Protection Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 100 × 67 × 110 mm |
| Weight | Approx. 0.3 kg |
Key Features
- Profibus DP master interface for DeltaV systems
- High-speed communication up to 12 Mbps
- Supports multiple field devices on a single network
- Seamless integration with DeltaV engineering environment
- Built-in diagnostics for network and device health
- Reduces hardwired I/O requirements
- Reliable industrial-grade communication performance
- Supports third-party automation system integration
