Brand:Emerson Module Item No.:Emerson VE4015 KJ3006X1-BA1 Product Origin:USA Product Dimensions:305 × 90 × 35 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

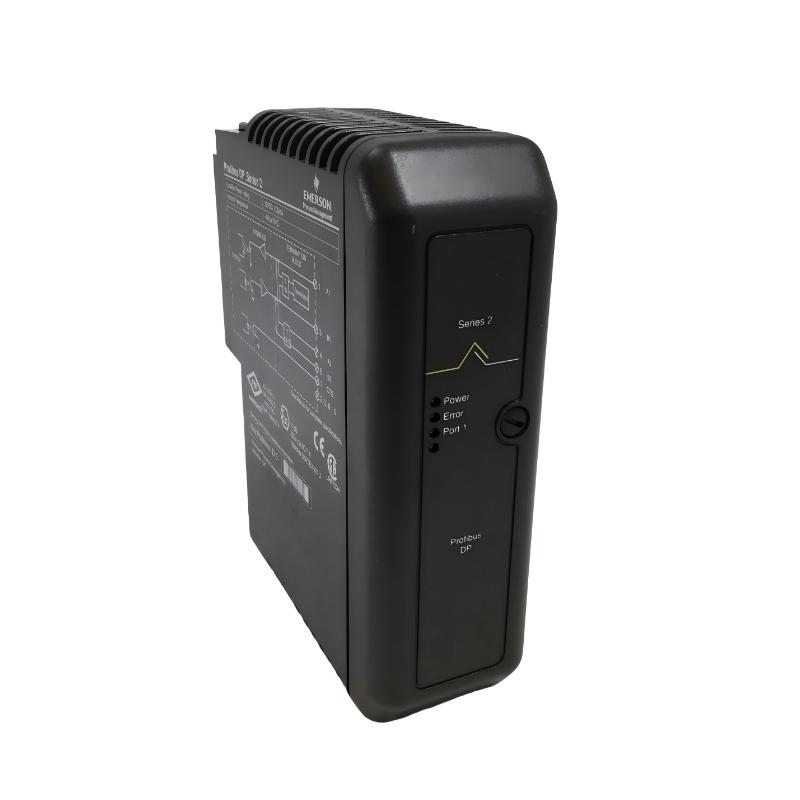

The Emerson VE4015 (KJ3006X1-BA1) is a DeltaV M-Series Traditional I/O multifunction module designed for handling pulse signals, digital inputs, analog inputs, and timer/counter functions within Emerson’s DeltaV Distributed Control System (DCS).
It is commonly used in applications where a single I/O module must support mixed signal types and high-speed pulse counting, such as flow metering, machine monitoring, and production counting systems.
Technical Specifications
Parameter
Specification
Manufacturer
Emerson
Model
VE4015
I/O Card
KJ3006X1-BA1
Assembly Number
12P2180X072
Product Type
Pulse / Multifunction I/O Module
System Platform
DeltaV M-Series
Channel Capacity
16 channels (configurable)
Input Types
Digital input, analog input, pulse input/output
Built-in Functions
Counter, timer
Power (LocalBus)
12 VDC
Field Power
24 VDC
Function
Mixed-signal acquisition + pulse counting
Isolation
Industrial field-to-system isolation
Diagnostics
Module health + channel diagnostics
Mounting Type
DeltaV I/O carrier mounted
Operating Temperature
-40°C to +70°C
Humidity
5–95% non-condensing
Protection Rating
IP20
Physical Dimensions & Weight
Parameter
Specification
Dimensions (L × W × H)
305 × 90 × 35 mm
Weight
Approx. 0.5 kg
Key Features
16-channel multifunction I/O architecture
Supports pulse counting, digital I/O, and analog input functions
Built-in counter and timer capability
High-speed pulse processing for metering applications
Flexible configuration per channel
Designed for DeltaV modular I/O architecture
Strong diagnostics and fault detection
Reliable industrial-grade operation
Applications
Flow Measurement
Used with pulse-output flowmeters for accurate consumption tracking.
Manufacturing Systems
Production line counting, machine cycle monitoring, and event tracking.
Oil & Gas
Metering, auxiliary equipment monitoring, and skid package integration.
Power Plants
Turbine auxiliary monitoring and process event counting.
Water & Utilities
Pump pulse monitoring and flow measurement systems.
Advantages
Combines multiple I/O types in one module
Reduces need for separate pulse and DI/AI cards
High-speed and accurate pulse handling
Flexible configuration for different process requirements
Strong integration with DeltaV DCS architecture
Reliable performance in harsh industrial environments
Technical FAQs
1. What is VE4015 used for?
It is used for pulse counting, digital I/O, and multifunction signal processing in DeltaV systems.
2. Is VE4015 a pure digital input module?
No. It supports digital input, analog input, and pulse functions.
3. How many channels does it have?
It supports 16 configurable channels.
4. What is the main function?
To provide flexible mixed-signal acquisition and pulse counting within DeltaV control systems.
5. What is the operating temperature?
-40°C to +70°C.
6. What is the weight?
Approximately 0.5 kg.
7. Which system is it designed for?
Emerson DeltaV M-Series DCS.
8. Does it support timers and counters?
Yes, it includes built-in timer and counter functions.
9. What industries use it?
Oil & gas, manufacturing, power generation, and water treatment.
10. Why is it widely used?
Because it replaces multiple dedicated I/O cards with one flexible multifunction module, reducing system complexity and cost.
