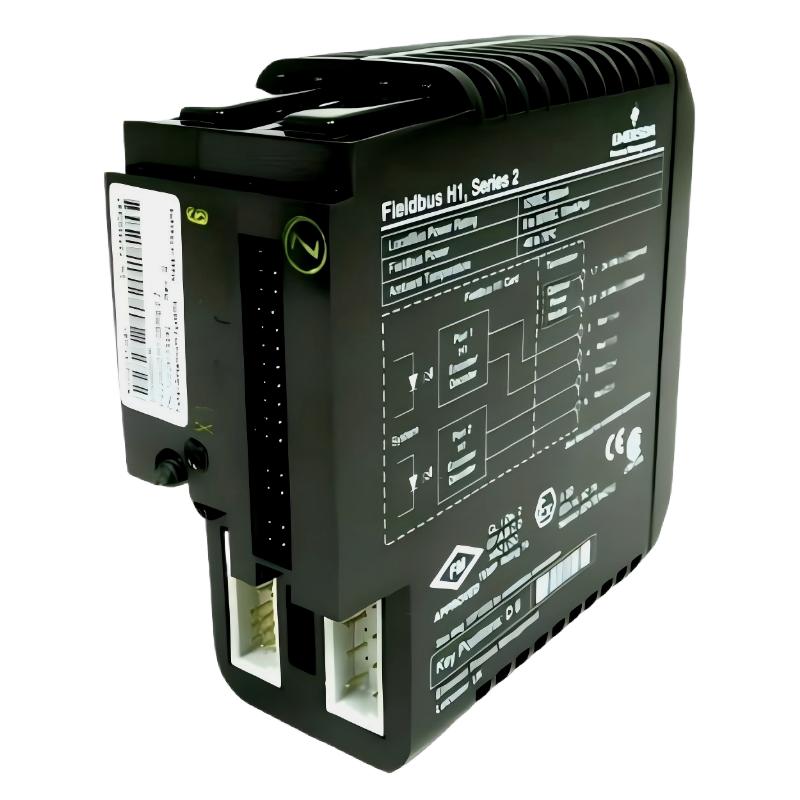

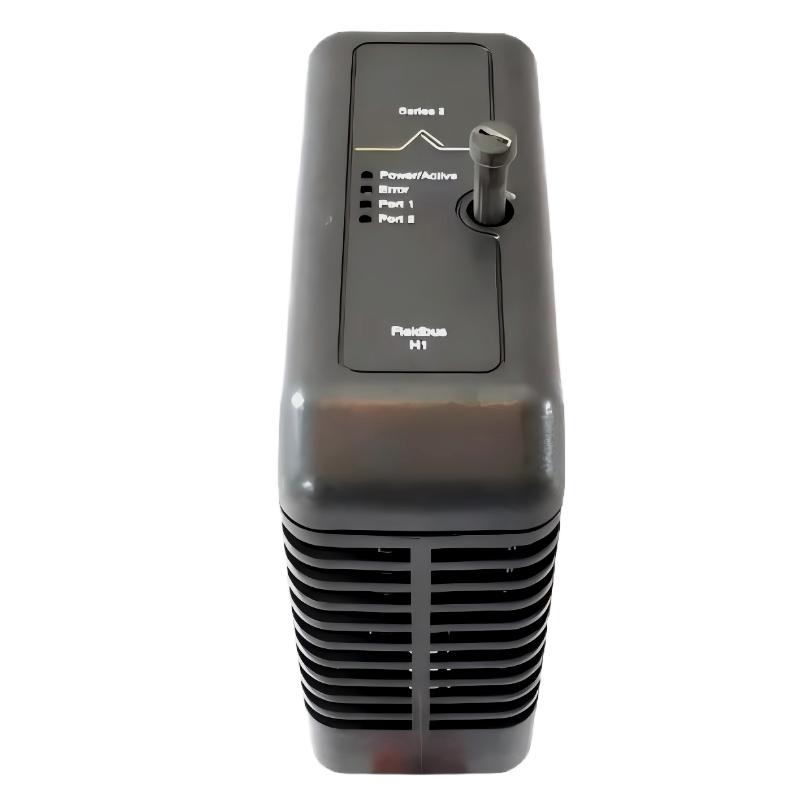

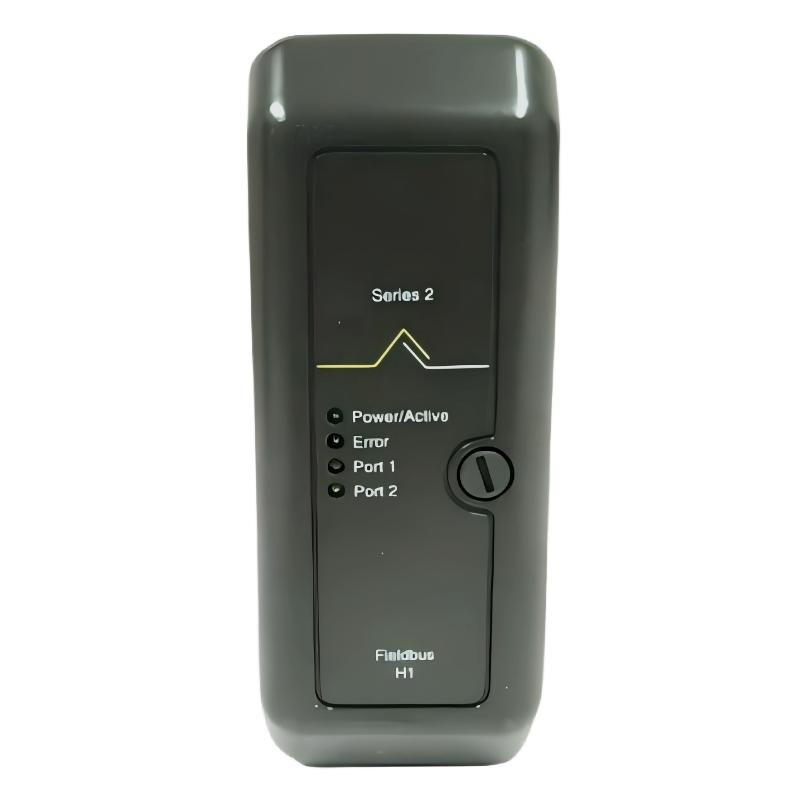

The Emerson VE4017P0 (KJ3242X1-BA1) is a DeltaV M-Series FOUNDATION Fieldbus H1 interface module used to connect the DeltaV Distributed Control System (DCS) to FOUNDATION Fieldbus smart field devices such as transmitters, valve positioners, and intelligent instrumentation.
It enables digital communication over a single fieldbus segment, reducing traditional analog wiring while providing advanced device diagnostics and multi-drop capability.

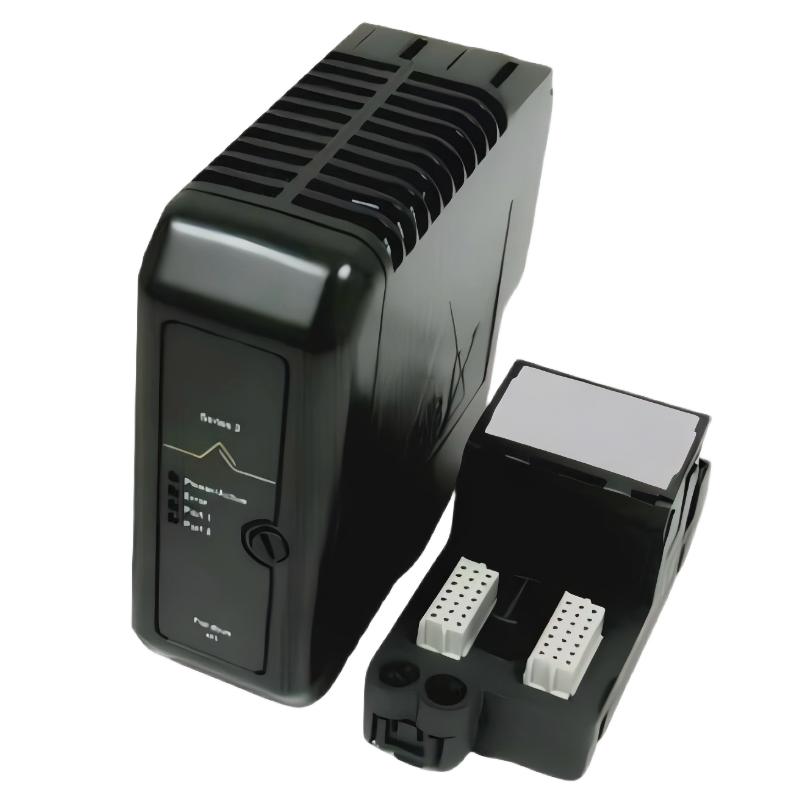

This module is typically supplied as a complete assembly including the KJ3242X1-BA1 interface card and terminal block (various 12P/12P2471X variants depending on configuration).
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4017P0 |
| I/O Card | KJ3242X1-BA1 |
| Assembly Numbers | 12P2471X042 / 12P2471X072 / 12P2471X082 (varies) |
| Product Type | FOUNDATION Fieldbus H1 Interface Module |
| System Platform | DeltaV M-Series |
| Protocol | FOUNDATION Fieldbus H1 |
| Data Rate | 31.25 kbps |
| Field Devices per Segment | Up to ~16 devices per segment |
| Redundancy | Supported (1:1 redundant configuration) |
| LocalBus Power | 12 VDC @ 300 mA |
| Fieldbus Power | 9–32 VDC, ~12 mA per port |
| Function | Fieldbus communication gateway |
| Diagnostics | Segment health, device status, fault detection |
| Mounting Type | DeltaV carrier-mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 100 × 67 × 110 mm |
| Weight | Approx. 0.30 kg |
Key Features
- FOUNDATION Fieldbus H1 master interface for DeltaV systems
- Supports multi-drop architecture (multiple smart devices on one segment)
- Reduces traditional hardwired I/O and wiring cost
- Provides advanced field device diagnostics
- Supports redundant configurations for high availability
- Seamless integration with DeltaV engineering environment
- Hot-swappable module design (system dependent)
- Reliable industrial communication performance
