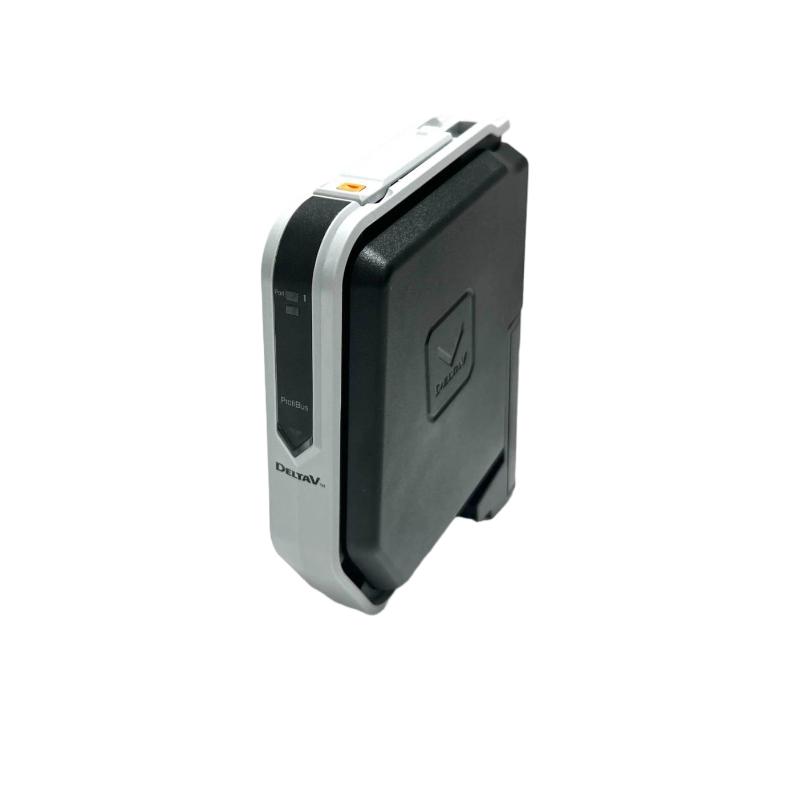

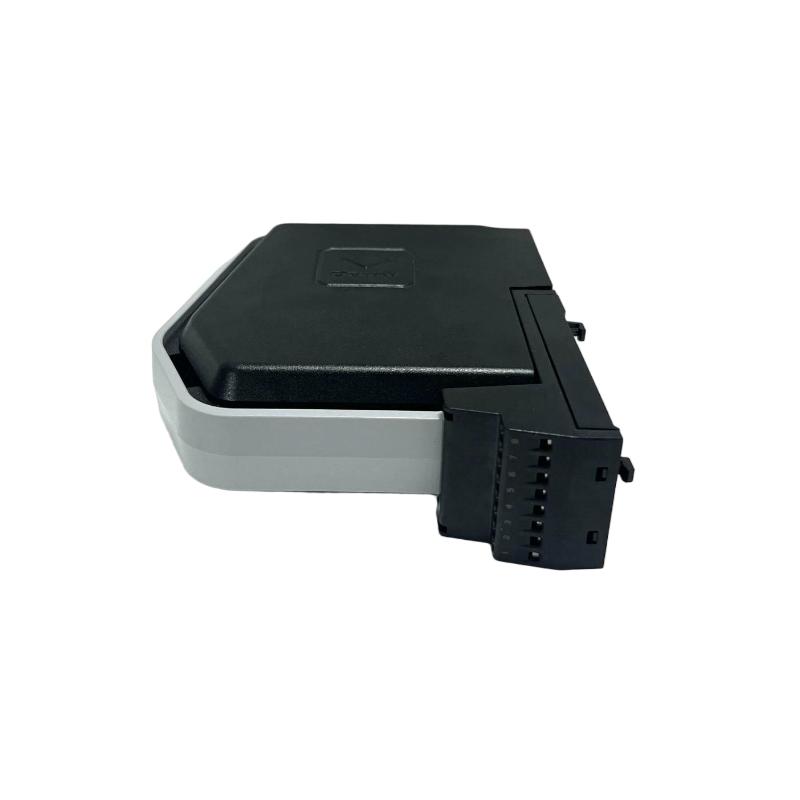

The Emerson SE4002S1T2B6 KJ3204X1-BK1 Discrete Output Module is a high-density industrial output card designed for DeltaV™ S-Series automation systems. It delivers precise 24 VDC switching control for field devices such as solenoids, valves, alarms, and actuators, making it a key component in reliable process execution.
Engineered for high availability environments, this module combines robust electrical protection, stable signal performance, and channel-level isolation to ensure safe and consistent operation even in harsh industrial conditions. It is widely deployed in continuous process industries where uptime and control accuracy are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4002S1T2B6 / KJ3204X1-BK1 |
| Module Type | Discrete Output Module |
| System Platform | DeltaV S-Series |
| Output Channels | 32 Channels |
| Output Type | High-side switching |
| Output Voltage | 24 VDC |
| Output Current | Up to 3 A per channel |
| Local Bus Power | 12 VDC |
| Field Power | 24 VDC system supply |
| Function | Digital output control for industrial devices |
| Protection Features | Short-circuit protection, open-load detection |
| Diagnostics | Channel-level diagnostics with LED status |
| Installation Type | Carrier-mounted module |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Vibration Resistance | Industrial-grade rugged design |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 100 × 170 × 40 mm |
| Weight | Approx. 0.9 kg |
