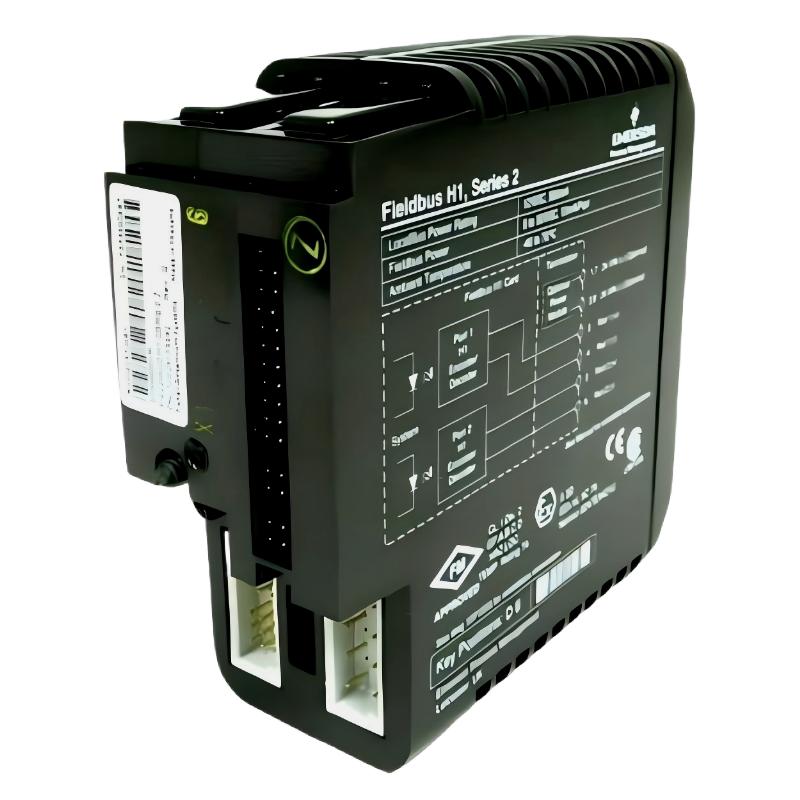

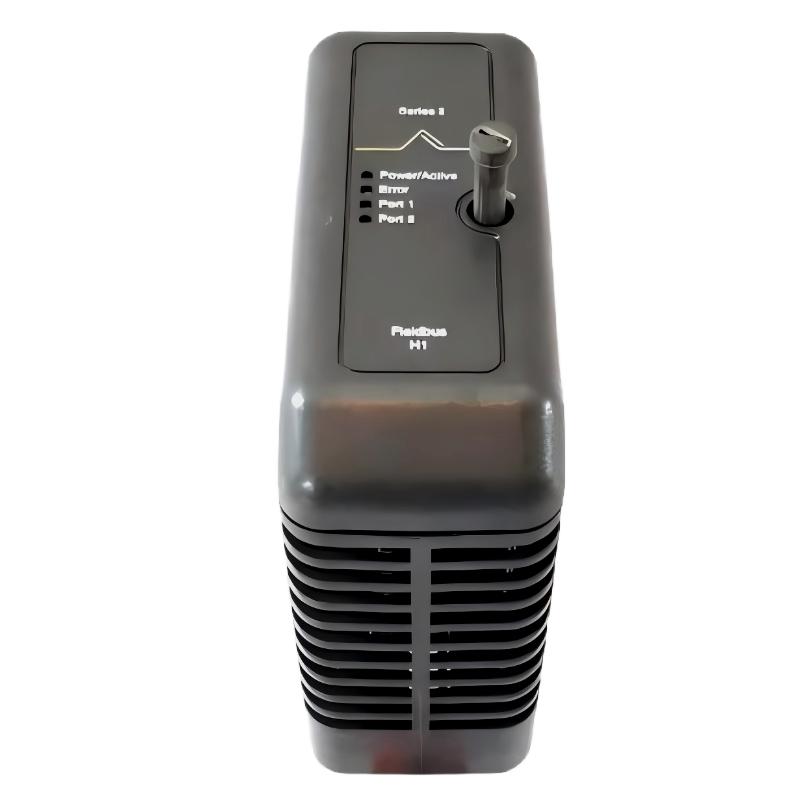

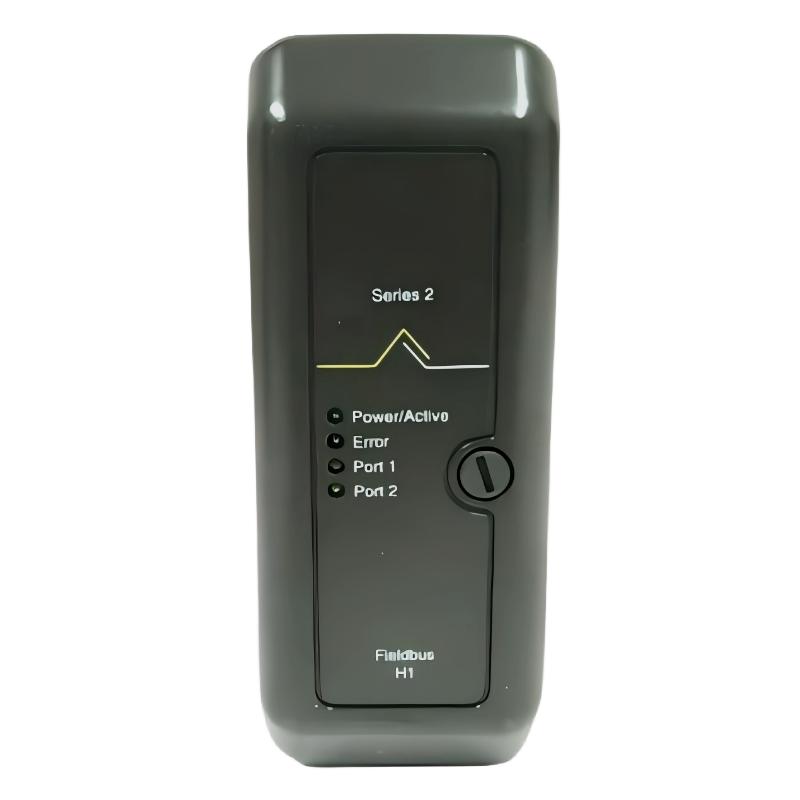

The Emerson VE4017P0 (KJ3242X1-BA2) is a DeltaV M-Series FOUNDATION Fieldbus H1 interface module used to connect DeltaV control systems with FOUNDATION Fieldbus smart field devices such as transmitters, valve positioners, and analyzers.
The BA2 version is typically associated with updated or alternate hardware revisions of the Fieldbus H1 interface card, often used for compatibility improvements and lifecycle replacement of earlier BA1-based assemblies. It functions as a communication gateway for Fieldbus networks, enabling multi-drop digital communication and device diagnostics.
This module is part of the DeltaV Series 2 Fieldbus I/O family and is designed for high reliability process automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4017P0 |
| I/O Card | KJ3242X1-BA2 |

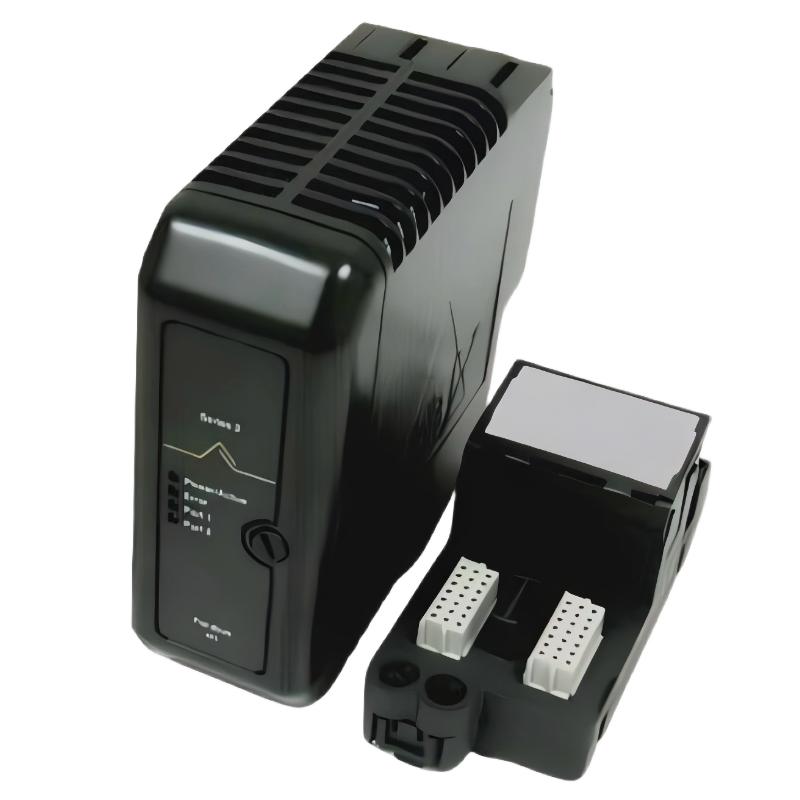

| Terminal Block | 12P2471X082 |
| Product Type | FOUNDATION Fieldbus H1 Interface Module |
| System Platform | DeltaV M-Series |
| Protocol | FOUNDATION Fieldbus H1 |
| Data Rate | 31.25 kbps |
| Field Devices per Segment | Up to ~16 devices |
| Function | Fieldbus communication interface (master) |
| Redundancy | Supported (1:1 redundant architecture, system dependent) |
| LocalBus Power | 12 VDC @ ~300 mA |
| Field Power | 9–32 VDC (external Fieldbus power supply required) |
| Diagnostics | Segment health, device status, fault detection |
| Mounting Type | DeltaV carrier-mounted |
| Isolation | Industrial-grade field/system isolation |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Protection Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 100 × 67 × 110 mm |
| Weight | Approx. 0.30 kg |
Key Features
- FOUNDATION Fieldbus H1 master interface for DeltaV systems
- Supports multi-drop smart device communication
- Enables advanced field device diagnostics
- Reduces traditional hardwired I/O requirements
- Supports redundant system architecture (config dependent)
- Seamless integration with DeltaV engineering tools
- High reliability for continuous process operation
- Suitable for hazardous and industrial environments
