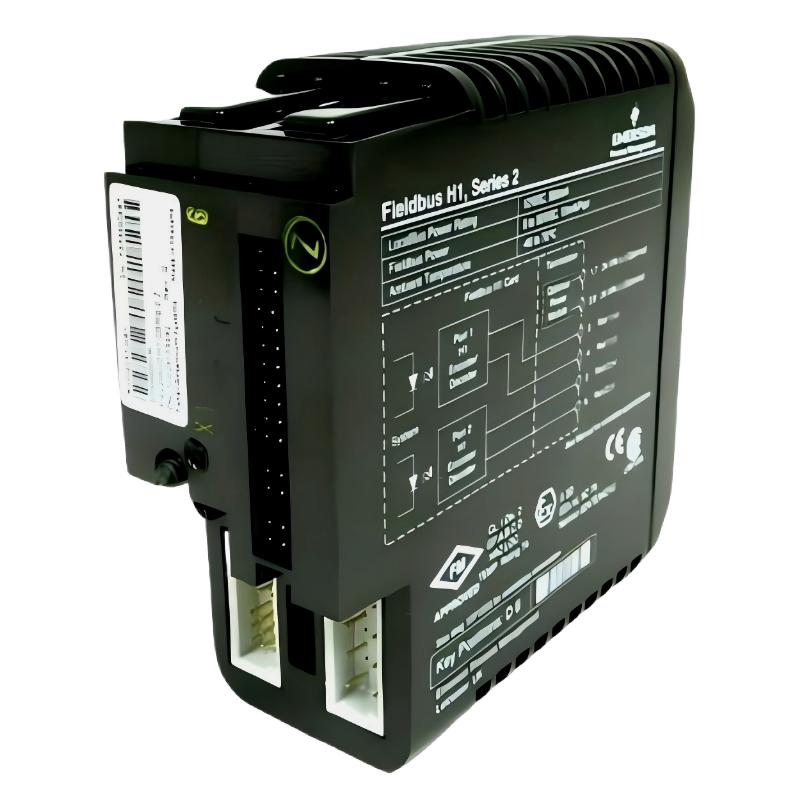

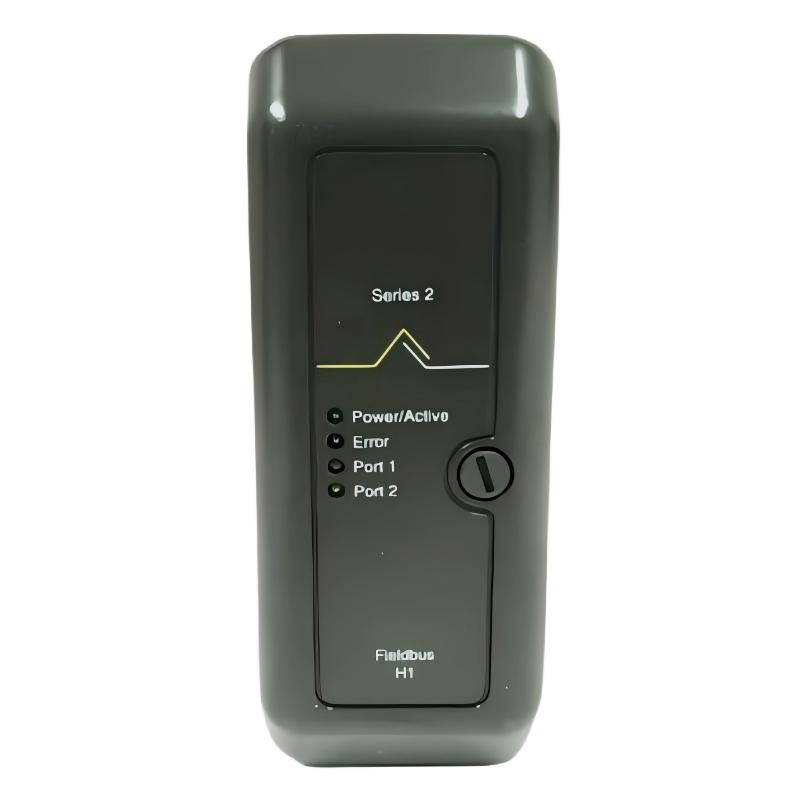

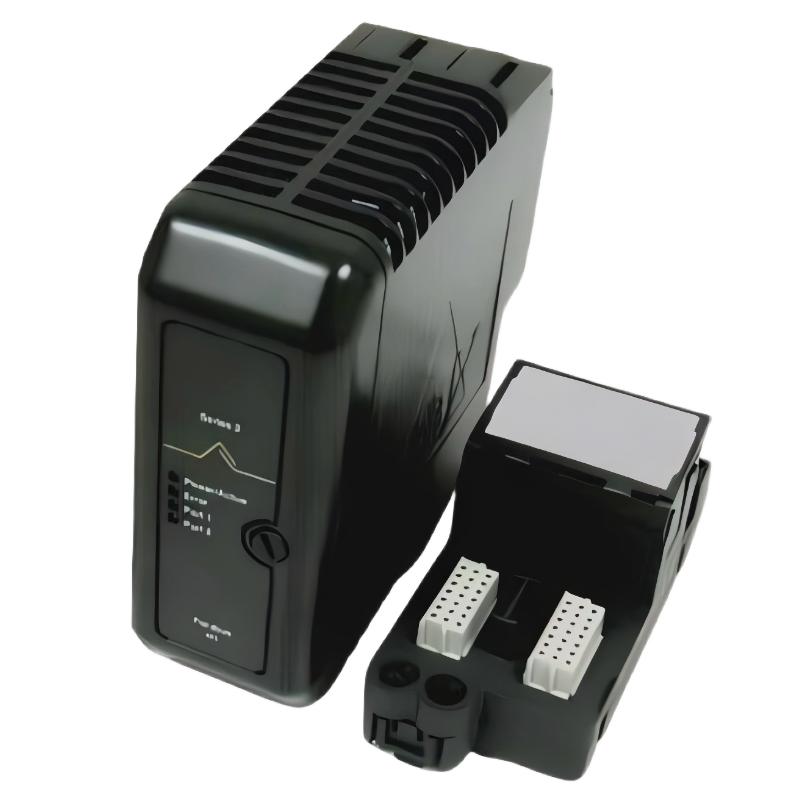

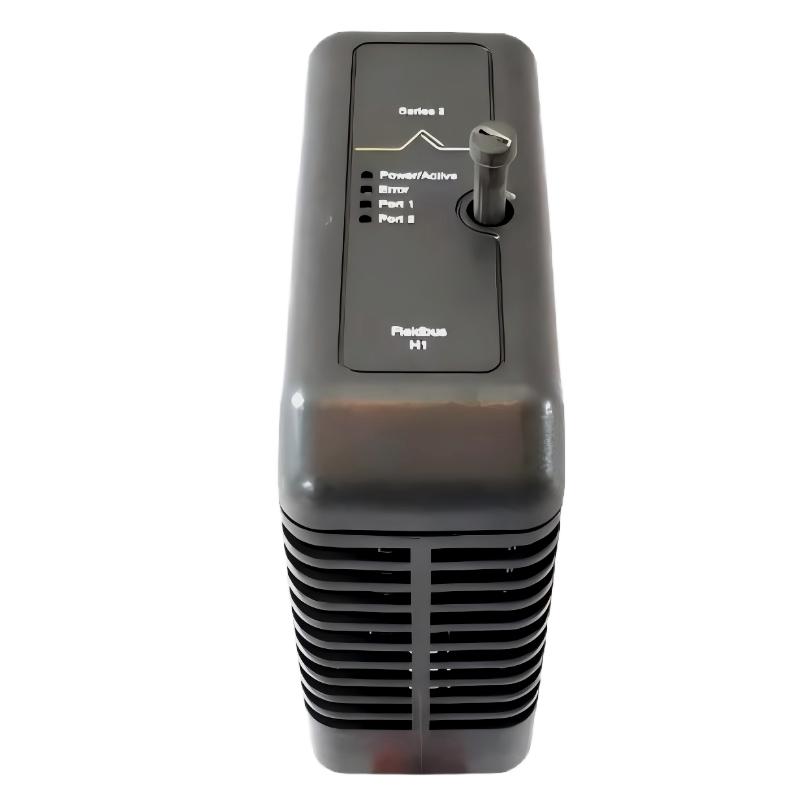

The Emerson VE4019P0 is a DeltaV M-Series Series 2 Plus FOUNDATION Fieldbus H1 interface module used to connect DeltaV DCS systems to FOUNDATION Fieldbus smart field devices. It is designed as an upgraded Fieldbus interface generation that supports multiple segments and higher I/O density compared to earlier VE4017-series modules.
It functions as a Fieldbus communication gateway and Link Active Scheduler (LAS), managing communication timing, power coordination, and diagnostics across multiple Fieldbus segments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4019P0 |
| I/O Card | KJ3242X1-BA1 (Series 2 Plus Fieldbus interface) |
| Terminal Block | 12P2471X series (variant dependent) |
| Product Type | FOUNDATION Fieldbus H1 Interface Module |
| System Platform | DeltaV M-Series Series 2 Plus |
| Protocol | FOUNDATION Fieldbus H1 |
| Data Rate | 31.25 kbps |
| Segments Supported | Up to 4 Fieldbus segments |
| Device Capacity | Up to ~16 devices per segment (design dependent) |
| Function | Fieldbus master / LAS / communication gateway |
| Redundancy | Supported (via redundant configuration model VE4039P0 equivalent) |
| LocalBus Power | 12 VDC nominal |
| Field Power | External Fieldbus power supply required |
| Diagnostics | Segment health, device status, communication faults |
| Mounting Type | DeltaV carrier-mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5–95% RH non-condensing |
| Protection Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 100 × 67 × 110 mm |
| Weight | Approx. 0.35 kg |
Key Features
- Supports FOUNDATION Fieldbus H1 multi-segment architecture (up to 4 segments)
- Acts as Fieldbus Link Active Scheduler (LAS)
- Enables smart device integration with reduced wiring
- Provides advanced diagnostics and device health monitoring
- Supports redundant system architectures (Series 2 Plus design)
- Improves I/O density compared to earlier VE4017 generation
- Fully integrated into DeltaV engineering tools
- Designed for high-reliability continuous process operation
