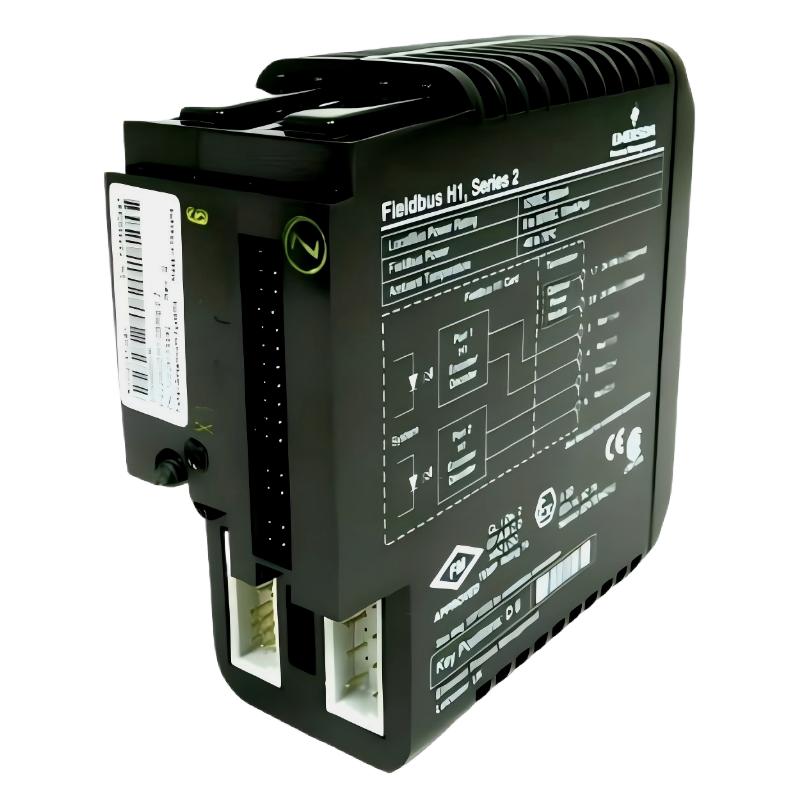

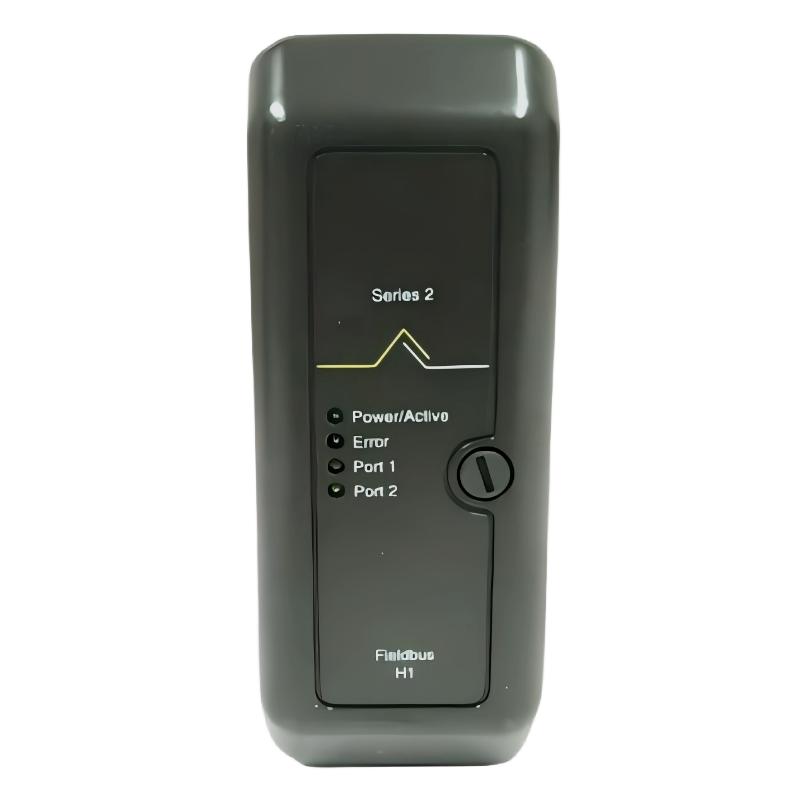

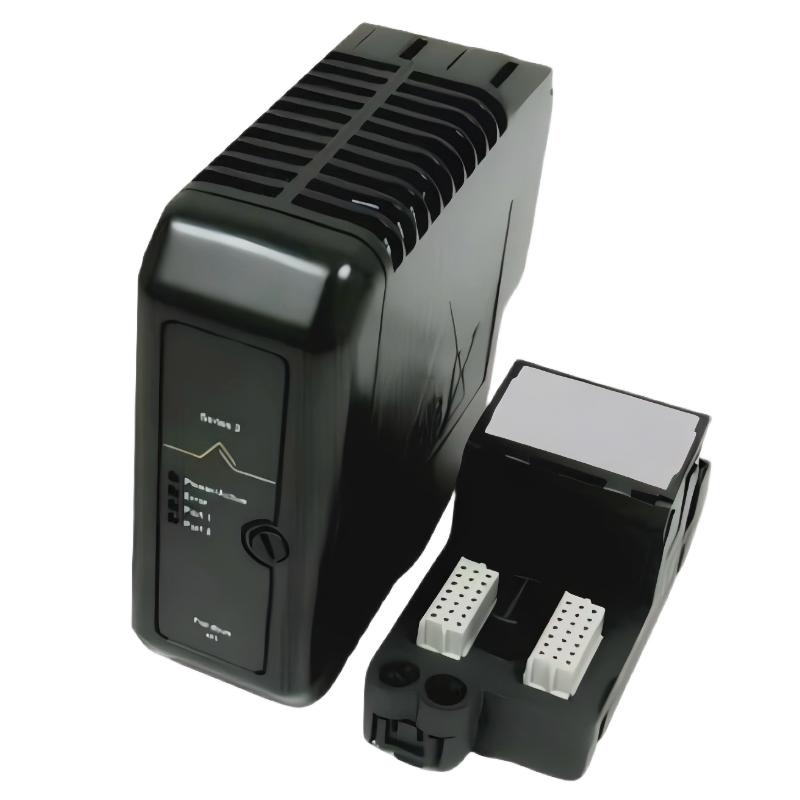

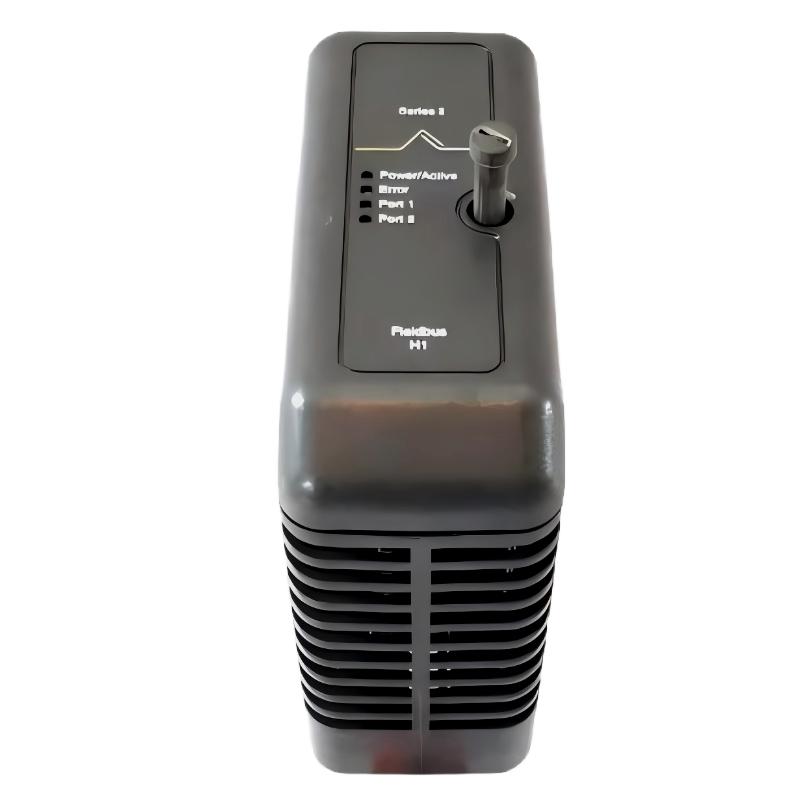

The Emerson VE4037P0 is a redundant FOUNDATION Fieldbus H1 I/O interface module used in DeltaV M-Series systems. It provides high-availability communication between fieldbus devices and the DeltaV control system, supporting redundant architecture to improve system reliability and uptime.
This module is designed for critical process applications where continuous operation and fault tolerance are required, such as oil & gas, petrochemical, and power generation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4037P0 |
| Module Type | Redundant Fieldbus I/O Interface Module |
| System Platform | DeltaV M-Series |
| Protocol | FOUNDATION Fieldbus H1 |
| Data Rate | 31.25 kbps |
| Architecture | Redundant (1:1 interface pair) |
| Function | Fieldbus communication gateway + LAS management |
| Field Devices per Segment | Up to ~16 devices per segment |
| Power Input | 12 VDC (typical LocalBus supply) |
| Diagnostics | Segment health, device status, redundancy monitoring |
| Mounting Type | DeltaV carrier-mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Protection Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 130 × 100 × 50 mm |
| Weight | Approx. 0.3 kg |
Key Features
- Redundant FOUNDATION Fieldbus H1 interface architecture
- Ensures high system availability and fault tolerance
- Supports multi-drop smart field devices on Fieldbus segments
- Provides advanced diagnostics for field devices and segments
- Integrated Link Active Scheduler (LAS) functionality
- Reduces wiring compared to traditional I/O systems
- Seamless integration with DeltaV engineering environment
- Suitable for safety-critical continuous processes
