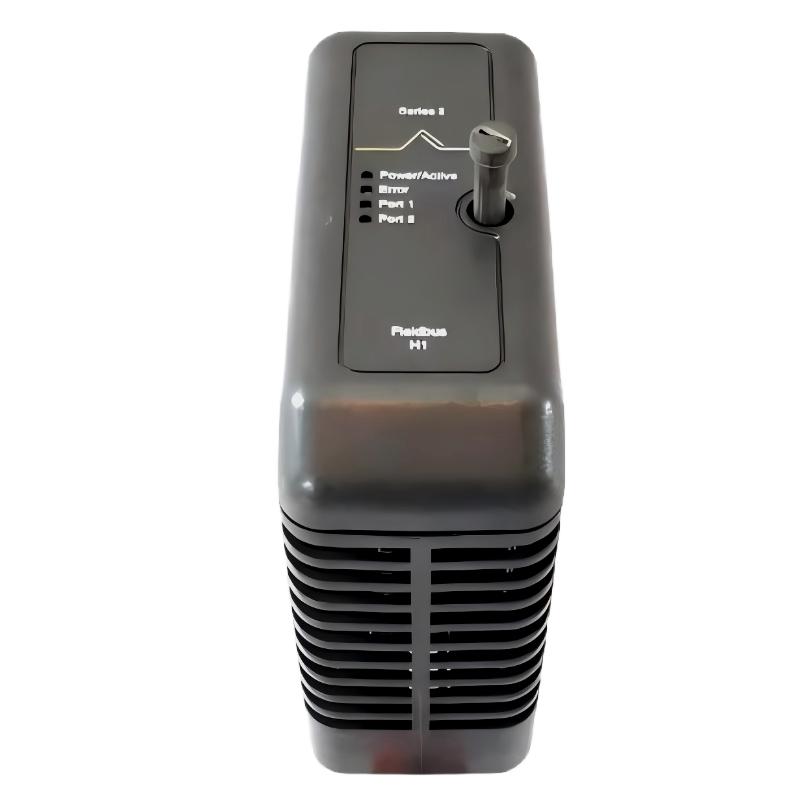

The Emerson VE4033S2B1 KJ3222X1-BA1+KJ3222X1-EA1 is a DeltaV M-Series Series 2 redundant analog input module assembly used for acquiring 4–20 mA / HART analog process signals from field instruments such as pressure, temperature, flow, and level transmitters.
It consists of:
- KJ3222X1-BA1 Analog Input Interface Card
- KJ3222X1-EA1 Redundant AI Terminal Block
Together, they provide safe field termination, signal conditioning, and redundant input capability for high-reliability process control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4033S2B1 KJ3222X1-BA1+KJ3222X1-EA1 |
| Module Type | Redundant Analog Input Module |
| System Platform | DeltaV M-Series |
| Input Channels | 8 Channels |
| Input Signal | 4–20 mA + HART |
| Function | Analog signal acquisition + redundant termination |
| Redundancy | Supported (terminal block redundancy design) |
| LocalBus Power | 12 VDC (typical system supply) |
| Field Power | 24 VDC (loop powered field devices) |
| Diagnostics | Channel fault, module health, loop monitoring |
| Mounting Type | DeltaV carrier-mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Protection Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 220 × 40 × 60 mm |
| Weight | Approx. 0.2–0.3 kg |
Key Features
- 8-channel analog input acquisition
- Supports 4–20 mA + HART smart instrument communication
- Redundant terminal block design (EA1)
- High reliability for critical process loops
- Built-in diagnostics for fast fault detection
- Mechanical keying prevents incorrect installation
- Compatible with DeltaV Series 2 AI architecture
- Industrial-grade environmental robustness
