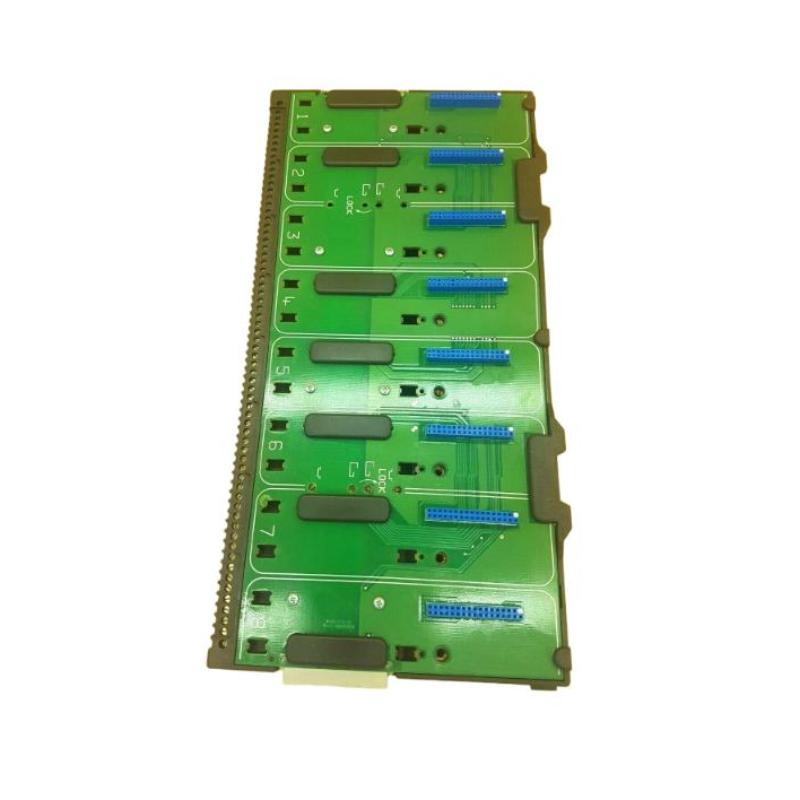

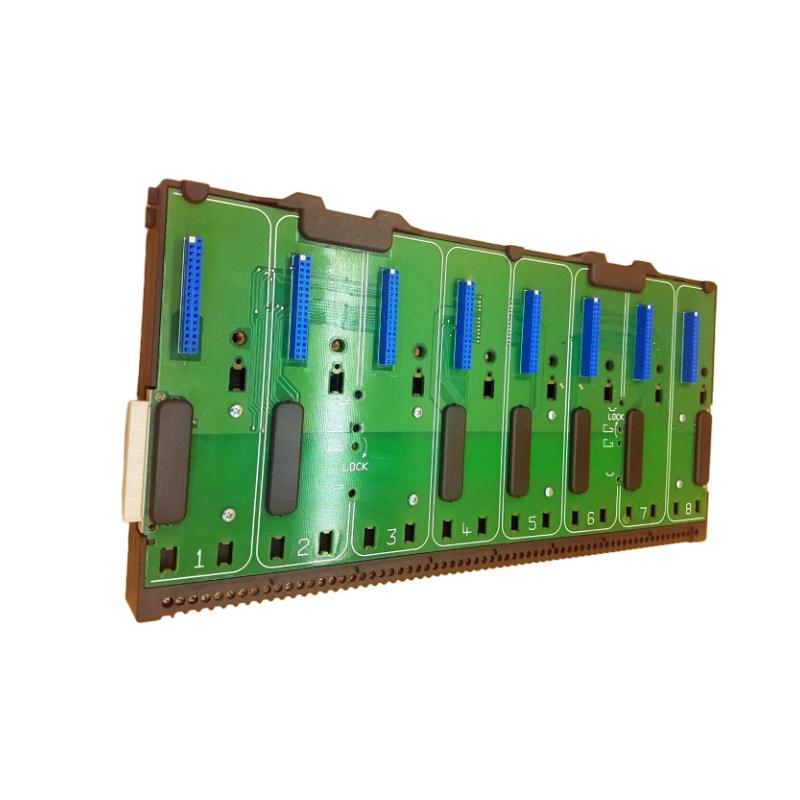

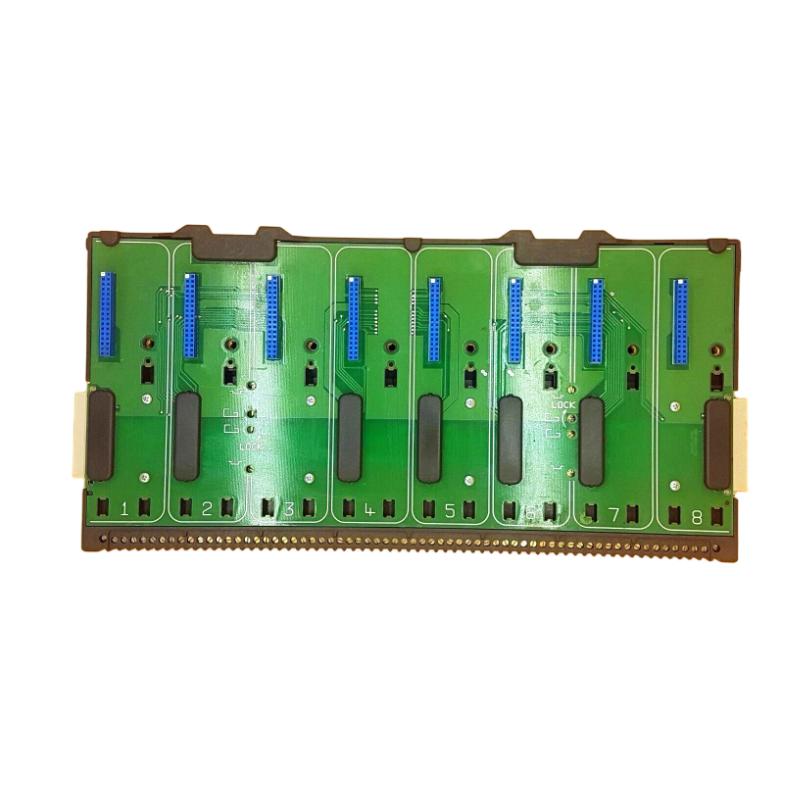

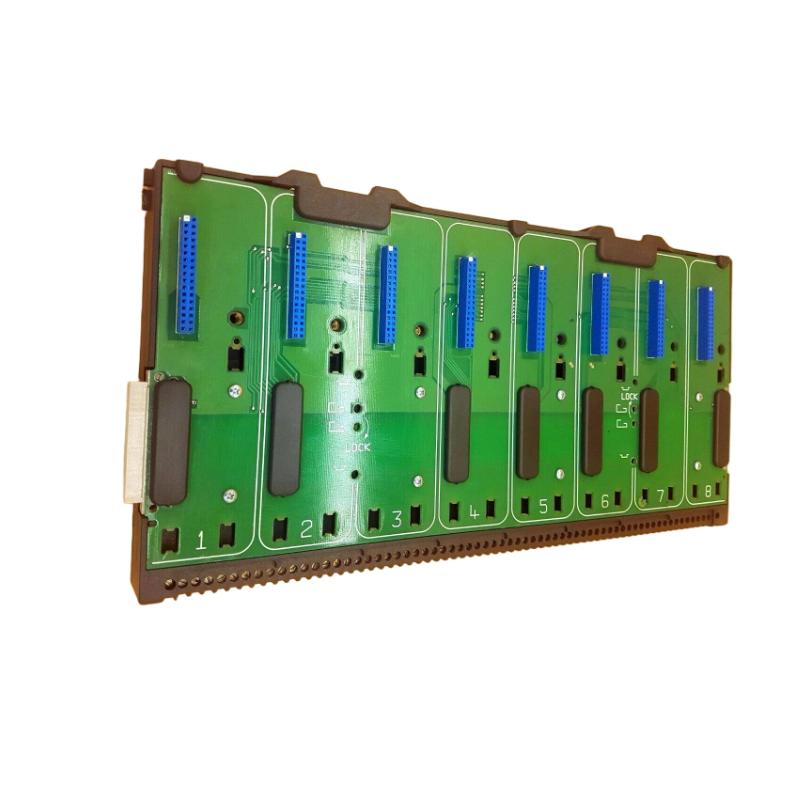

The Emerson VE4050S2K1C0 KJ4001X1-BE1+KJ4002X1-BF2 is a DeltaV M-Series I/O carrier module assembly used to provide mechanical mounting, power distribution, and communication backplane connection for DeltaV I/O cards.
It consists of:
- KJ4001X1-BE1 I/O Carrier Base Module
- KJ4002X1-BF2 Extender Cable Module
Together, they form an 8-wide I/O carrier system that supports modular installation of DeltaV I/O interfaces and enables expansion of local I/O racks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4050S2K1C0 KJ4001X1-BE1+KJ4002X1-BF2 |
| Module Type | I/O Carrier Module / Communication Interface |
| System Platform | DeltaV M-Series |
| Function | I/O carrier + backplane communication + extension |
| Carrier Width | 8-wide I/O carrier system |
| LocalBus Power | 12.6 VDC typical (system dependent) |
| Field Power | 24–30 VDC external supply supported |
| Expansion | Supports multiple connected I/O carriers |
| Extender Type | Horizontal I/O carrier extender cable |
| Diagnostics | System-level carrier communication monitoring |
| Mounting Type | T-type DIN rail mounted carrier system |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Protection Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 347 × 170 × 33 mm |
| Weight | Approx. 0.72 kg |
Key Features
- 8-wide modular I/O carrier platform
- Supports DeltaV I/O module installation
- Provides power and communication backplane
- Includes extender cable for multi-row expansion
- Enables flexible cabinet layout design
- Supports redundant controller architectures
- High reliability industrial design
- Simplifies large-scale I/O system construction
