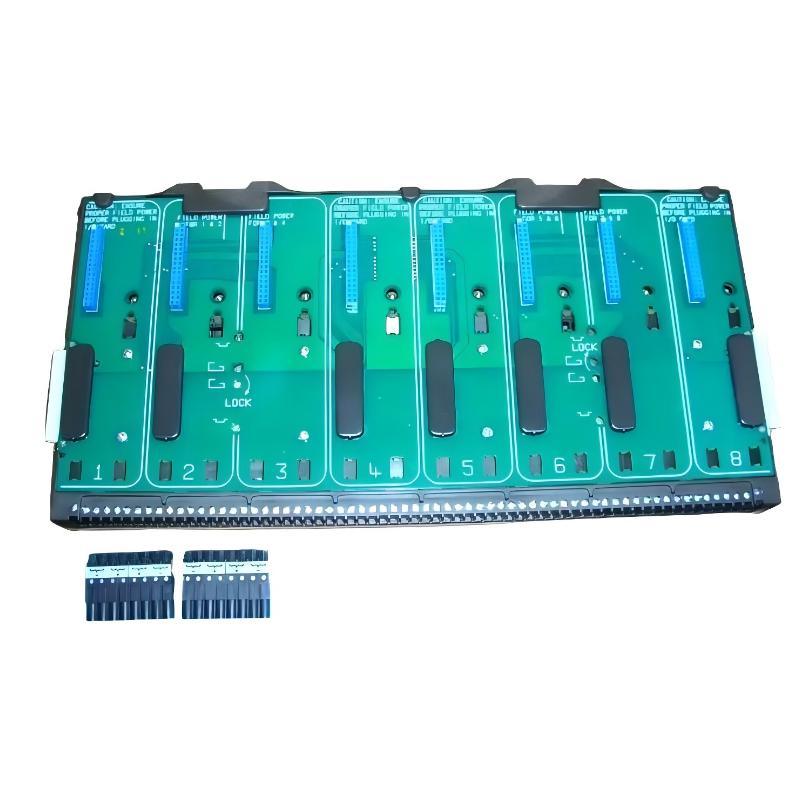

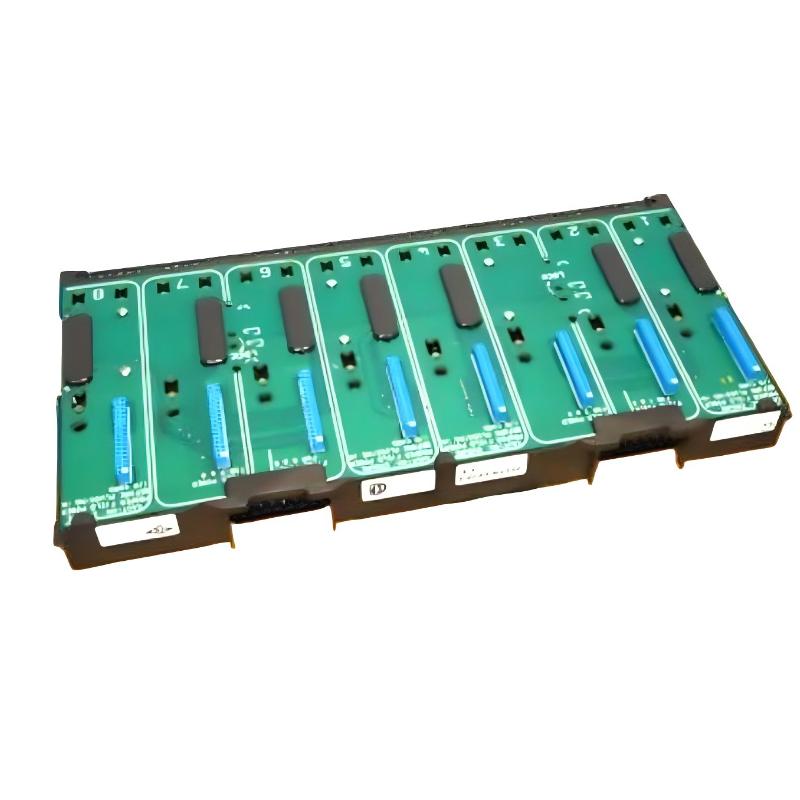

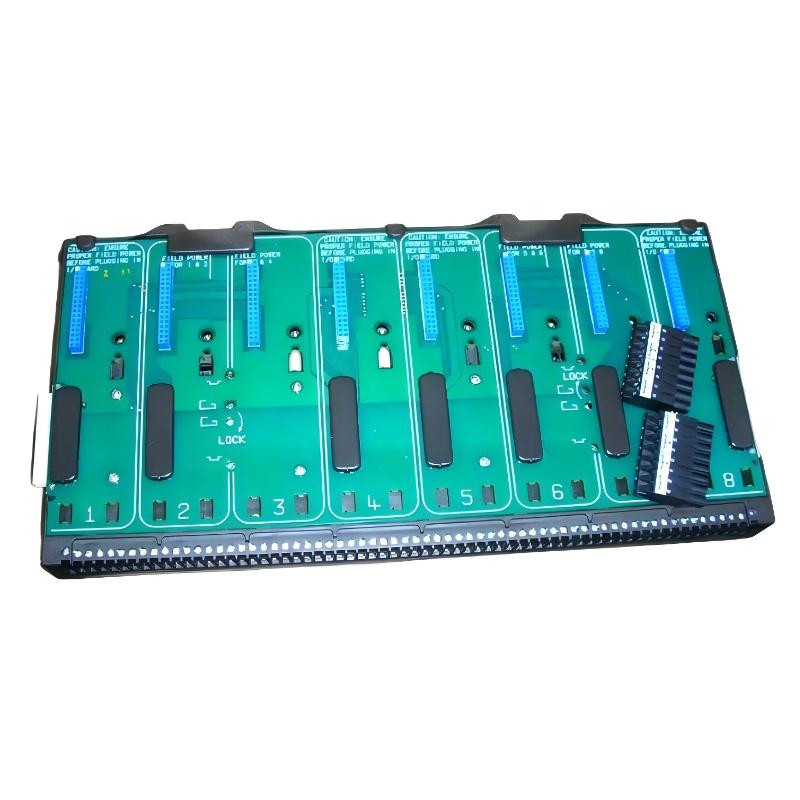

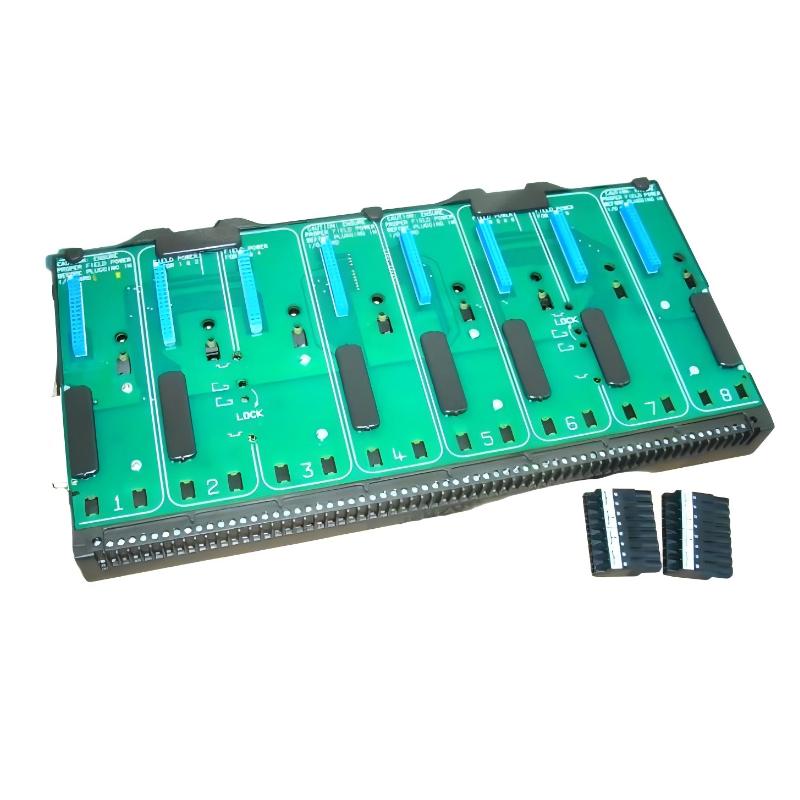

The Emerson VE4054S1C0 is an 8-wide VerticalPlus I/O Carrier Module (Left Side) used in DeltaV M-Series systems. It provides the mechanical mounting structure, backplane communication, and power distribution for DeltaV I/O modules in a vertical cabinet configuration.
This carrier is part of the VerticalPlus I/O subsystem, designed for compact cabinet layouts and high-density I/O installation in industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4054S1C0 |
| Module Type | VerticalPlus I/O Carrier Module (Left Side) |
| System Platform | DeltaV M-Series |
| Carrier Type | 8-wide Vertical I/O carrier |
| Function | I/O mounting + power distribution + backplane communication |
| System Compatibility | DeltaV M-Series / SIS compatible architectures |
| Power Distribution | LocalBus + system field power distribution |
| Expansion | Supports VerticalPlus carrier extensions |
| Diagnostics | Carrier-level communication and power status |
| Mounting Type | Vertical DIN rail / cabinet mounted |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Protection Rating | IP20 |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 347 × 170 × 33 mm |
| Weight | Approx. 3.4 kg |
Key Features
- 8-wide VerticalPlus I/O carrier (left-side configuration)
- Supports DeltaV Series 2 I/O modules
- Provides backplane communication for I/O cards
- Integrated power distribution system
- Designed for high-density cabinet layouts
- Supports modular expansion via railbus extenders
- Industrial-grade robust construction
- Suitable for SIS and process control applications
