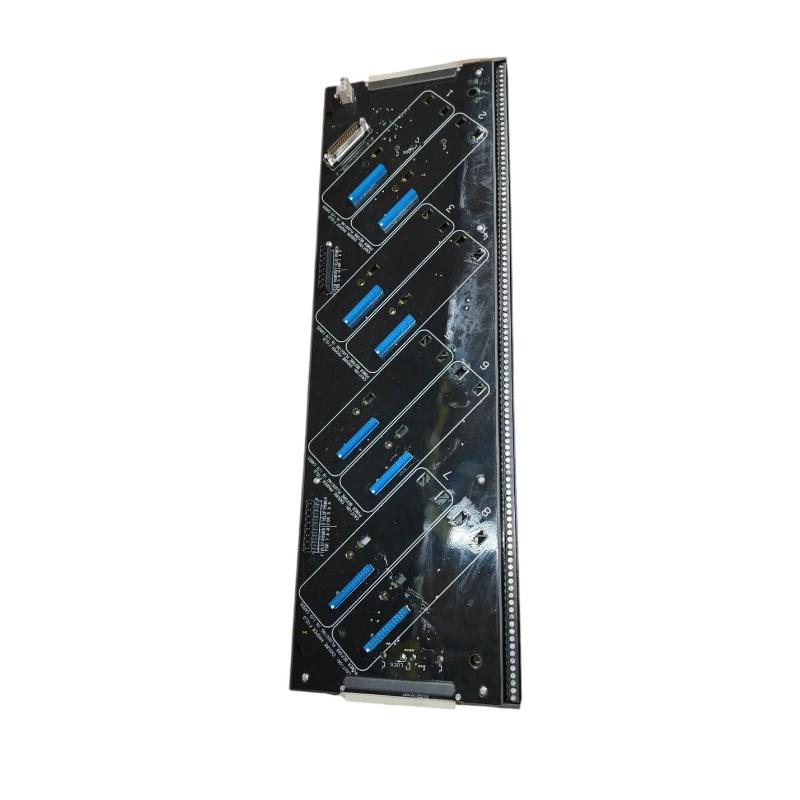

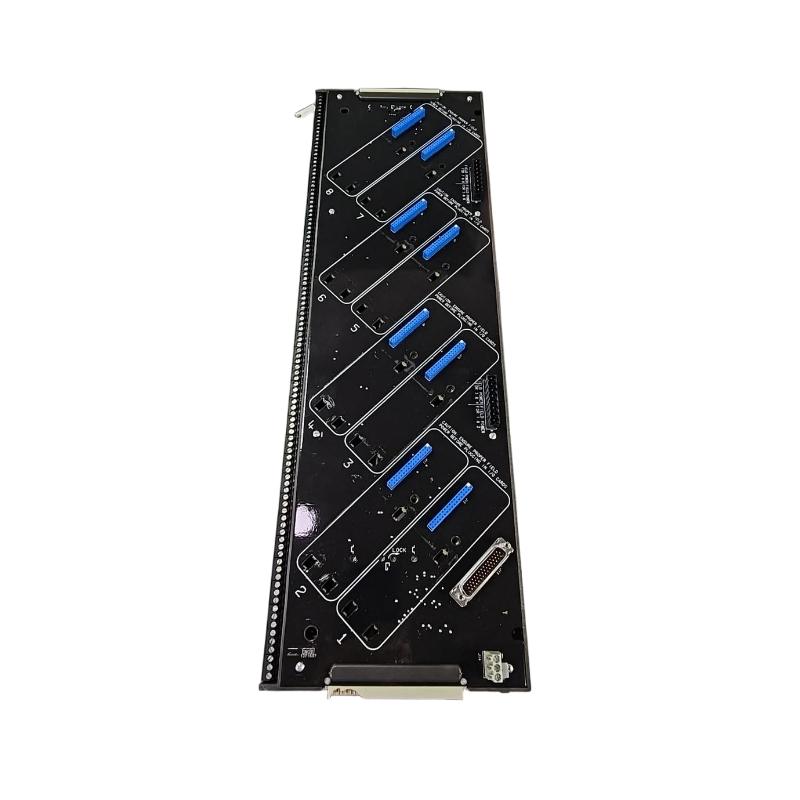

The VE4055S2C0 is a DeltaV M-Series I/O Carrier Module used to provide mechanical mounting, power distribution, and backplane communication for DeltaV I/O modules. It forms part of the cabinet-level infrastructure that supports analog, digital, and communication I/O cards in distributed control systems.
It is commonly used in vertical carrier architectures to support high-density modular I/O configurations in industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4055S2C0 |
| Module Type | I/O Carrier Module |
| System Platform | DeltaV M-Series |
| Function | I/O mounting + power distribution + communication backplane |
| Carrier Width | 8-wide vertical I/O carrier |
| Field Power | 30 VDC typical (system dependent) |
| LocalBus Power | 12.6 VDC typical (system dependent) |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Protection Rating | IP20 |
| Mounting Type | DIN rail / cabinet mounted |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 347 × 170 × 33 mm |
| Weight | Approx. 0.8–1.5 kg (variant dependent) |
Key Features
- 8-wide modular I/O carrier platform
- Supports DeltaV Series 2 I/O modules
- Provides backplane communication and system power distribution
- Designed for vertical cabinet I/O architecture
- Supports scalable distributed control system design
- Industrial-grade reliability for harsh environments
- Compatible with large DeltaV control systems
