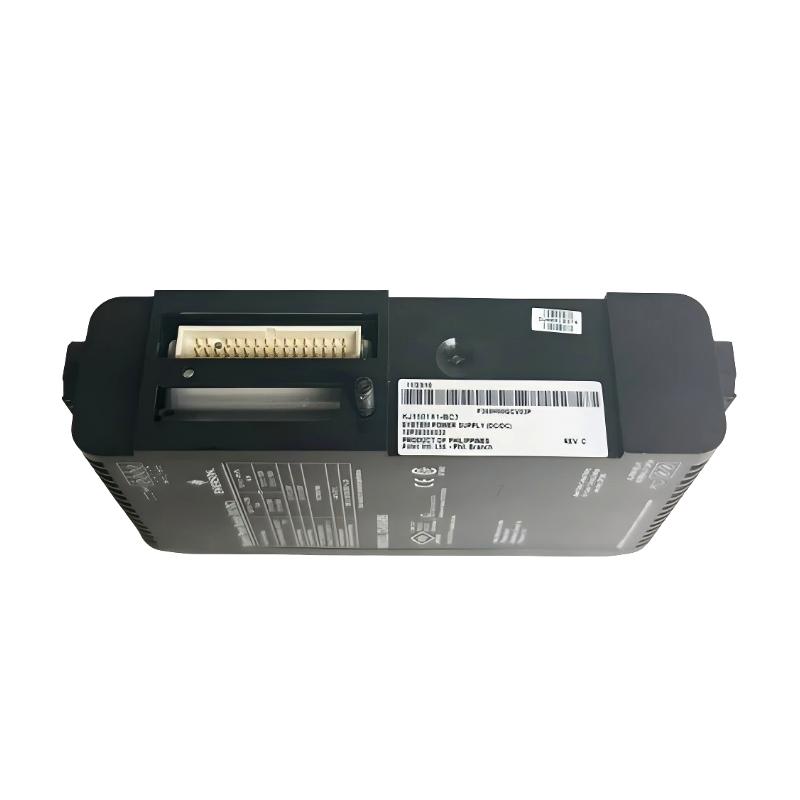

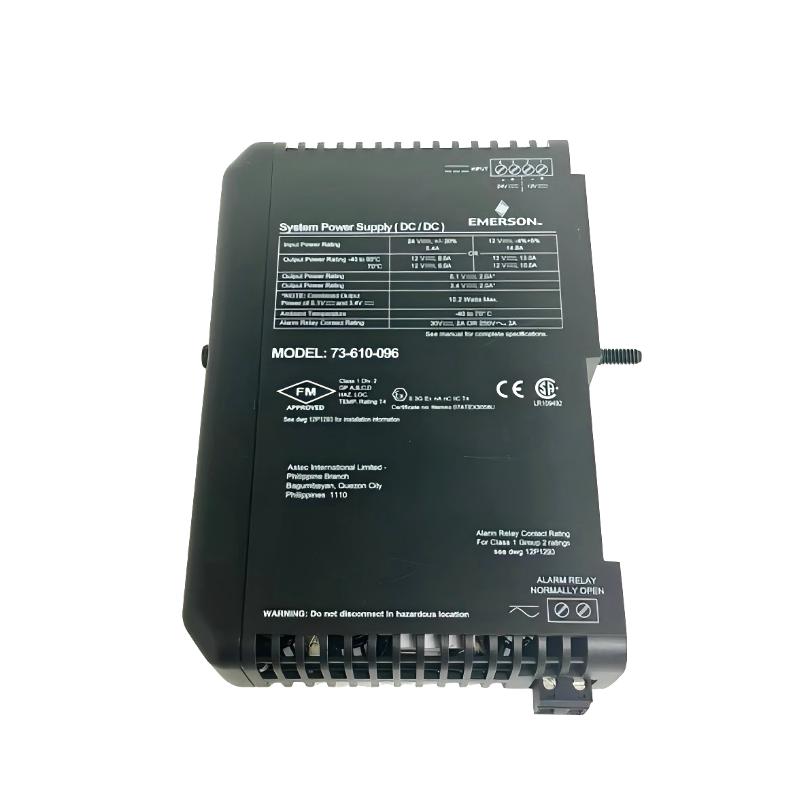

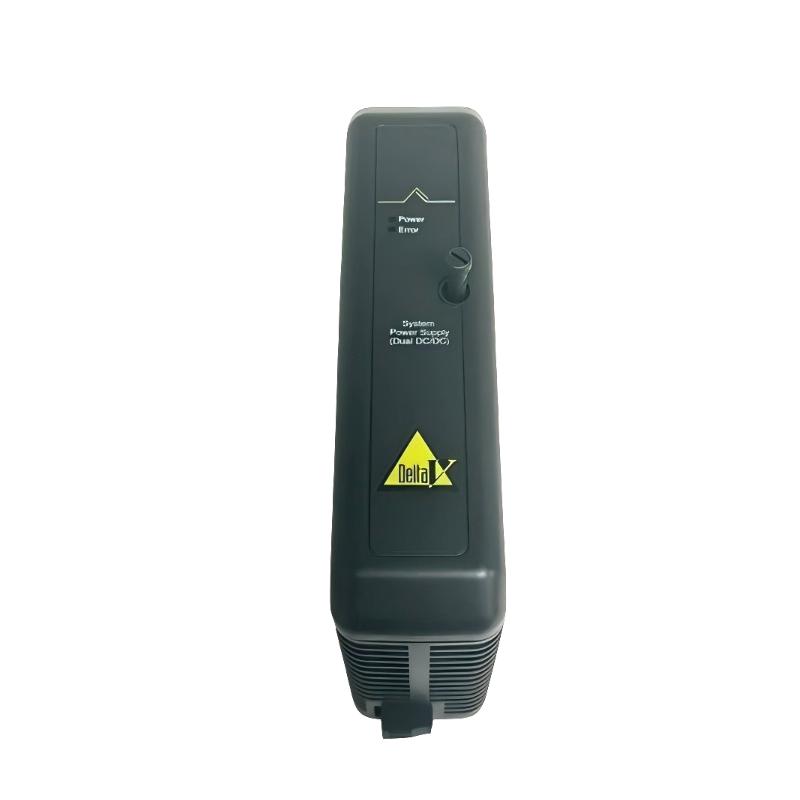

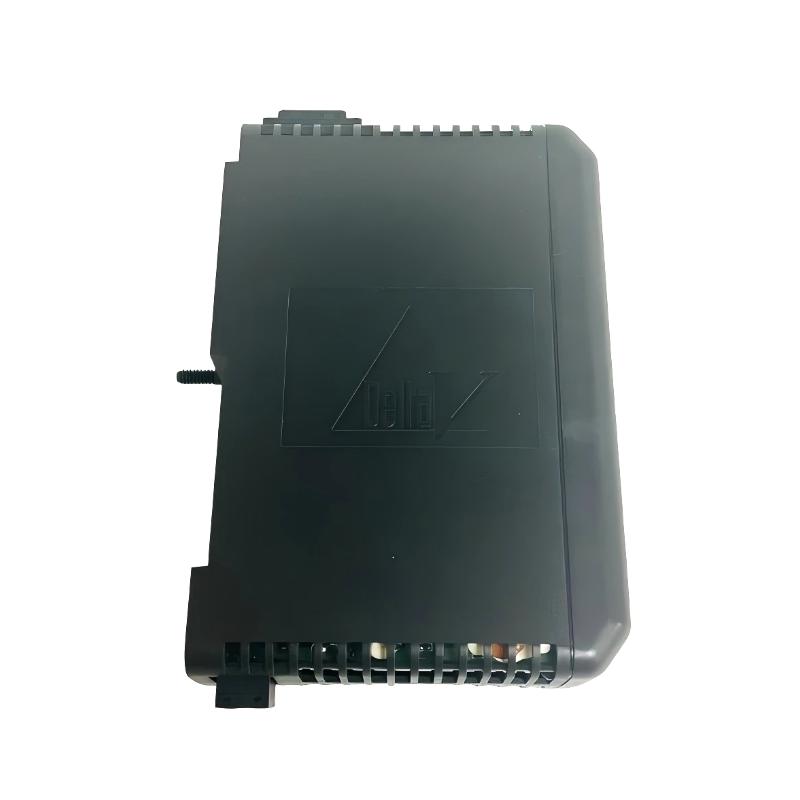

The Emerson VE5001 KJ1501X1-BA2 is an AC/DC System Power Supply Module designed for the DeltaV™ M-Series Distributed Control System (DCS). It provides regulated and reliable power for controllers, I/O modules, communication interfaces, and other critical system components, ensuring continuous plant operation and high system availability. It supports redundant configurations and hot-swappable replacement for improved reliability and maintainability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE5001 KJ1501X1-BA2 |
| Module Type | Power Supply Module |
| System Platform | DeltaV M-Series |
| Input Voltage | 90–265 VAC, 47–63 Hz |
| Output Voltage | 12 VDC |
| Output Power | Up to 480 W |
| Output Current | Up to 40 A |
| Redundancy | Supported |
| Hot Swap | Supported |
| Protection | Overvoltage and overload protection |
| Certifications | CE, UL |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Mounting Type | DeltaV power/controller carrier |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 185 × 125 × 43 mm |
| Weight | Approx. 0.4 kg |
Key Features
- AC/DC system power supply for DeltaV M-Series
- Supports redundant power configurations
- Hot-swappable design for easy maintenance
- Wide input voltage range
- High efficiency and low heat generation
- Built-in protection against electrical faults
- Reliable operation in harsh industrial environments
- Designed for critical process automation applications
