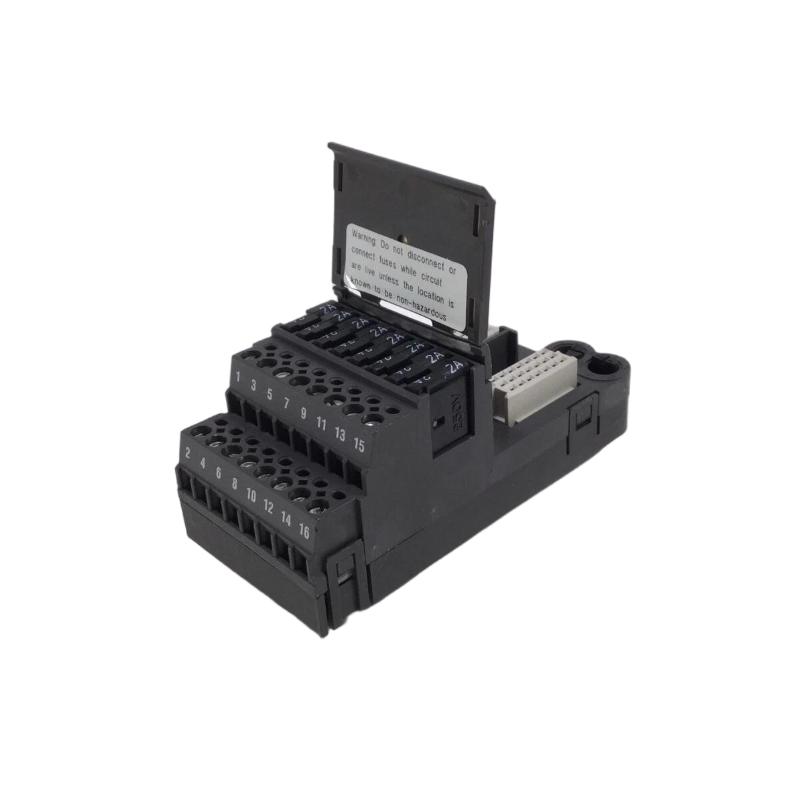

The Emerson VE4002S1T2B5 Discrete Output Module is a high-density industrial output solution designed for DeltaV™ distributed control systems. It converts controller commands into reliable 24V DC switching signals to drive field devices such as solenoids, actuators, alarms, and control relays.
Built for demanding process environments, this module delivers stable performance, fast response, and consistent output accuracy even under continuous 24/7 operation. Its compact design and high channel density make it a strong choice for plants aiming to reduce cabinet space while maintaining control capability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4002S1T2B5 |
| Module Type | Discrete Output Module |
| System Platform | DeltaV M-Series |
| Output Channels | 32 Channels |
| Output Type | High-side switching |
| Output Voltage | 24 VDC |
| Output Current | Up to 2 A per channel |
| Power Consumption | Approx. 80 W |
| Interface | Standard I/O termination block |
| Function | Digital signal switching for field devices |
| Diagnostics | Built-in channel diagnostics |
| Installation Type | Carrier-mounted module |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Protection Class | Industrial grade IP20 |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 86.8 × 51.1 × 32.4 mm |
| Weight | Approx. 0.5 kg |
