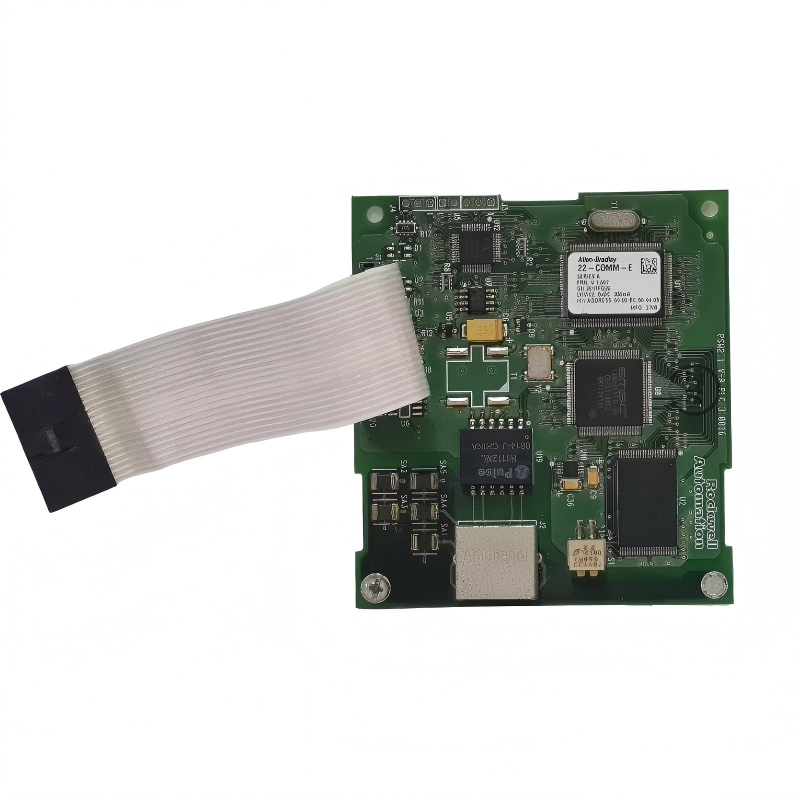

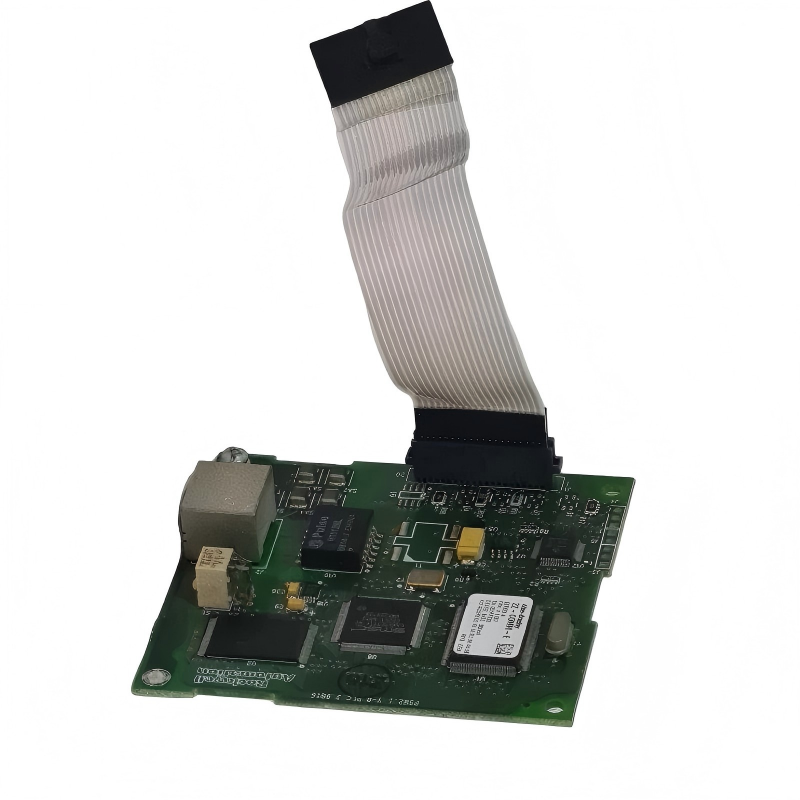

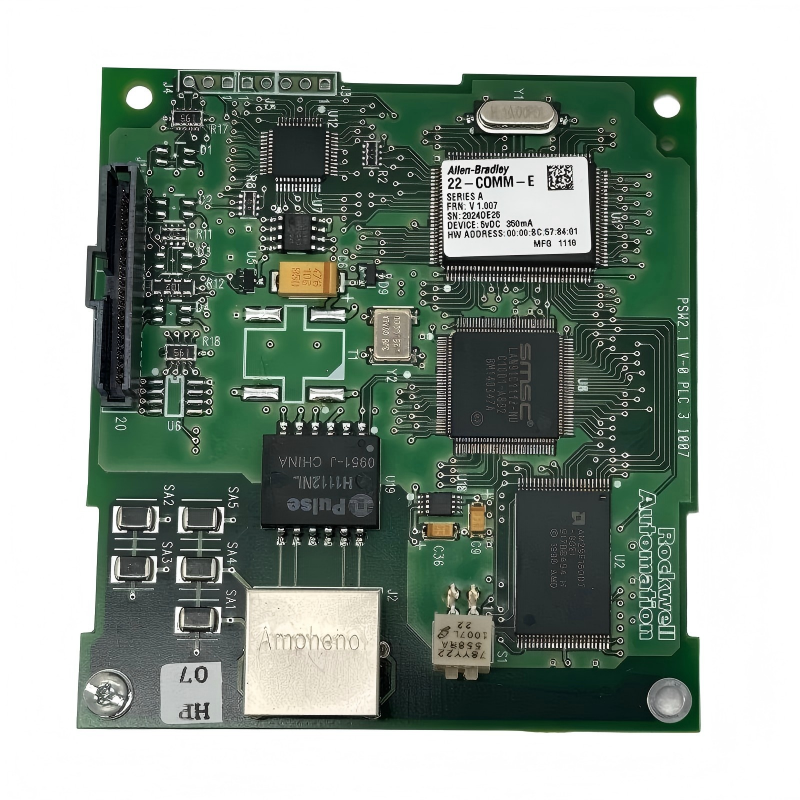

Allen Bradley 22-COMM-E EtherNet/IP Adapter Module
Allen Bradley 22-COMM-E EtherNet/IP Adapter Module
0.0
Points
Brand:Allen Bradley PLC Item No.:22-COMM-E Product Origin:USA Product Dimensions:86 x 19 x 78.5 mm Product Weight:0.05 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 22-COMM-E EtherNet/IP Adapter Module offers compact, reliable, and high-performance connectivity for EtherNet/IP networks. Its small form factor, ease of installation, and industrial-grade reliability make it an essential component for scalable and flexible automation systems.
Technical Specifications
Specification
Details
Product Model
22-COMM-E
Module Type
EtherNet/IP Adapter
Dimensions (H × W × D)
86 × 19 × 78.5 mm
Weight
0.05 kg (0.11 lb)
Function
Connect controllers to EtherNet/IP networks
System Compatibility
Allen Bradley CompactLogix and MicroLogix
Installation
Control cabinet / DIN rail mount
Signal Type
EtherNet/IP communication
Application
Industrial network connectivity, process automation
Environment
Industrial-grade operating conditions
Manufacturer
Allen Bradley
Seamless EtherNet/IP Integration for Compact Control Systems
The Allen Bradley 22-COMM-E EtherNet/IP Adapter Module provides a reliable interface for connecting CompactLogix and MicroLogix controllers to EtherNet/IP networks. Its compact design allows easy installation in tight control panels, delivering high-speed communication, deterministic data exchange, and seamless integration into industrial automation systems.
This module is ideal for applications that require flexible network connectivity without compromising performance or reliability.
Applications include:
Allen Bradley CompactLogix and MicroLogix controller integration
Industrial process automation networks
Manufacturing system communication
Remote I/O and field device connectivity
Modular control cabinet installations
Oil & gas, chemical, and power generation facilities
High-speed EtherNet/IP network expansion
Key Advantages
Compact Form Factor: 86 × 19 × 78.5 mm footprint fits in small panels.
Reliable EtherNet/IP Communication: Ensures high-speed and deterministic data transfer.
Plug-and-Play Installation: Simplifies integration with Allen Bradley controllers.
Industrial-Grade Performance: Built to withstand harsh factory and field conditions.
Network Flexibility: Supports communication between multiple controllers and devices.
Enhanced System Monitoring: Enables real-time control and diagnostics.
Cost-Effective Connectivity: Eliminates the need for complex networking hardware.
Technical FAQs
1. What is the main function of this module?
It connects Allen Bradley CompactLogix and MicroLogix controllers to EtherNet/IP networks.
2. Does it support both input and output data exchange?
Yes, it supports bi-directional communication for controller I/O.
3. Is configuration required for installation?
Minimal configuration is required; primarily plug-and-play with RSLinx or Studio 5000 software.
4. Can it operate in harsh industrial environments?
Yes, it is designed for continuous operation under industrial conditions.
5. What is the communication speed?
Supports standard EtherNet/IP speeds (10/100 Mbps).
6. Can multiple modules be used in a single network?
Yes, multiple EtherNet/IP adapter modules can coexist on the same network.
7. Does it support real-time control applications?
Yes, it provides deterministic communication suitable for control loops.
8. Is it compatible with other Allen Bradley controllers?
Yes, primarily designed for CompactLogix and MicroLogix families.
9. How does it simplify maintenance?
Its plug-and-play design allows easy replacement without network disruption.
10. Which industries typically use this adapter?
Manufacturing, process automation, oil & gas, power generation, and chemical industries.
