Brand:Allen Bradley PLC Item No.:22D-D010N104 Product Origin:USA Product Dimensions:180 x 100 x 136 mm Product Weight:2.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

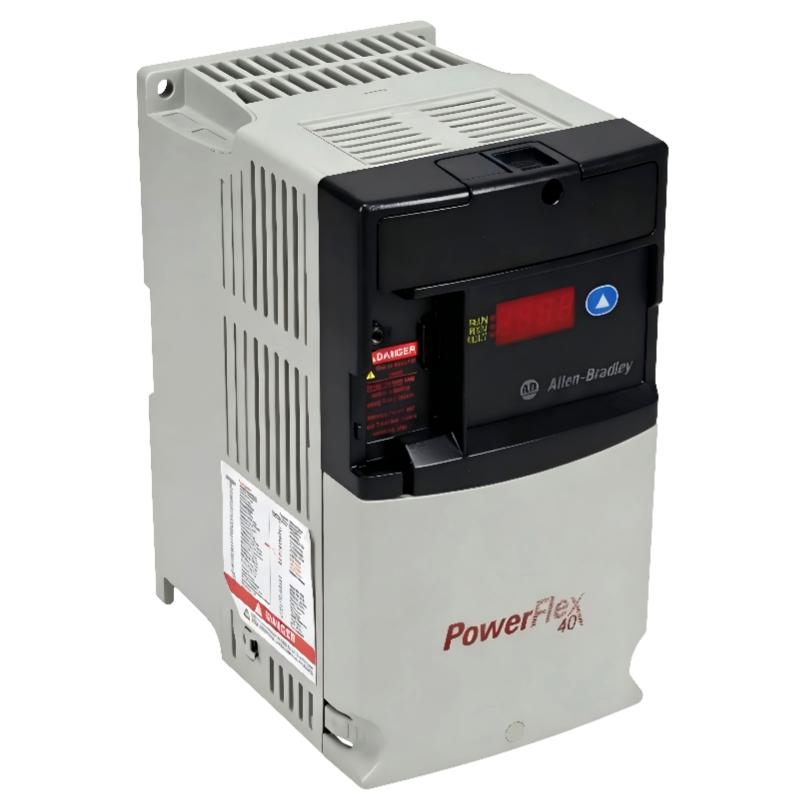

The Allen Bradley 22D-D010N104 PowerFlex 40P AC Drive provides compact, reliable, and efficient motor control for industrial automation systems. Its precise control, energy efficiency, and flexible integration make it ideal for scalable and maintainable process automation and machine control applications.
Technical Specifications
Specification
Details
Product Model
22D-D010N104
Module Type
PowerFlex 40P AC Drive
Dimensions (H × W × D)
180 × 100 × 136 mm
Weight
2.2 kg (4.85 lb)
Function
AC motor speed, torque, and direction control
System Compatibility
Allen Bradley PowerFlex 40P and networked control systems
Installation
Control cabinet / Panel mount
Input Voltage
200–240V AC, 1-phase
Output
3-phase motor control
Application
Industrial motor control, process automation
Environment
Industrial-grade operating conditions
Manufacturer
Allen Bradley
Compact, High-Performance AC Drive for Flexible Motor Control
The Allen Bradley 22D-D010N104 PowerFlex 40P AC Drive is a versatile and compact solution for controlling three-phase AC motors in a wide range of industrial applications. Designed for easy integration into control panels, it provides precise speed, torque, and direction control, enabling efficient energy usage and enhanced process performance.
This drive is ideal for applications that require reliable motor control, flexible configuration, and robust operation in industrial environments.
Applications include:
Conveyor and material handling systems
Pumping and ventilation systems
HVAC and fan control
Packaging and processing machinery
Chemical, petrochemical, and oil & gas facilities
Power generation and utilities
Modular automation and motor control panels
Key Advantages
Compact Design: 180 × 100 × 136 mm footprint fits into small control panels.
Reliable Motor Control: Provides precise speed, torque, and directional control.
Energy Efficient: Optimizes motor performance and reduces energy consumption.
User-Friendly Interface: Easy setup and monitoring via keypad or software.
Industrial-Grade Construction: Durable design for continuous operation in harsh environments.
Flexible Integration: Compatible with Allen Bradley communication adapters and network modules.
Maintenance-Friendly: Simplifies troubleshooting and replacement, reducing downtime.
Technical FAQs
1. What is the primary function of this AC drive?
It controls three-phase AC motors for speed, torque, and direction with high precision.
2. What is the power rating of this model?
The 22D-D010N104 is rated for 1 HP (0.75 kW) motor applications.
3. Can it communicate with control networks?
Yes, it can interface with EtherNet/IP or Profibus via optional communication adapters.
4. Is it suitable for industrial environments?
Yes, it is designed for continuous operation under harsh conditions.
5. Can it be used for variable torque applications?
Yes, it supports both constant and variable torque motor applications.
6. Does it provide built-in protection features?
Yes, it includes overload, overcurrent, and fault protection.
7. Can it be used in multi-drive systems?
Yes, it supports networked and coordinated motor control setups.
8. How is it configured?
Configuration is performed via keypad, PC software, or connected controller.
9. What industries typically use this drive?
Manufacturing, material handling, chemical, oil & gas, utilities, and HVAC systems.
10. Can it handle frequent start/stop operations?
Yes, it is suitable for applications requiring frequent motor starts and stops.
