Introduction

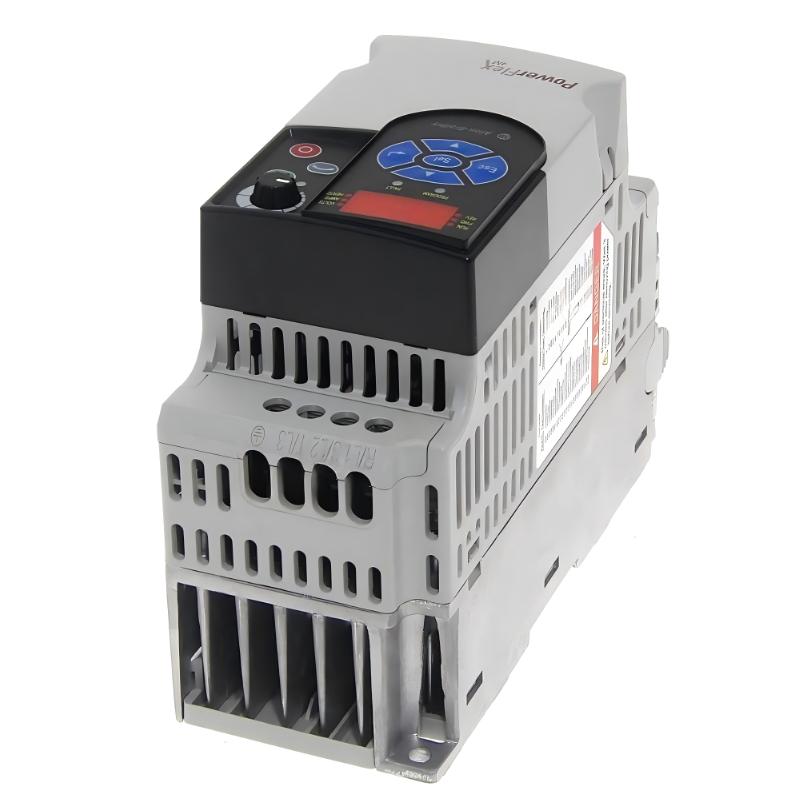

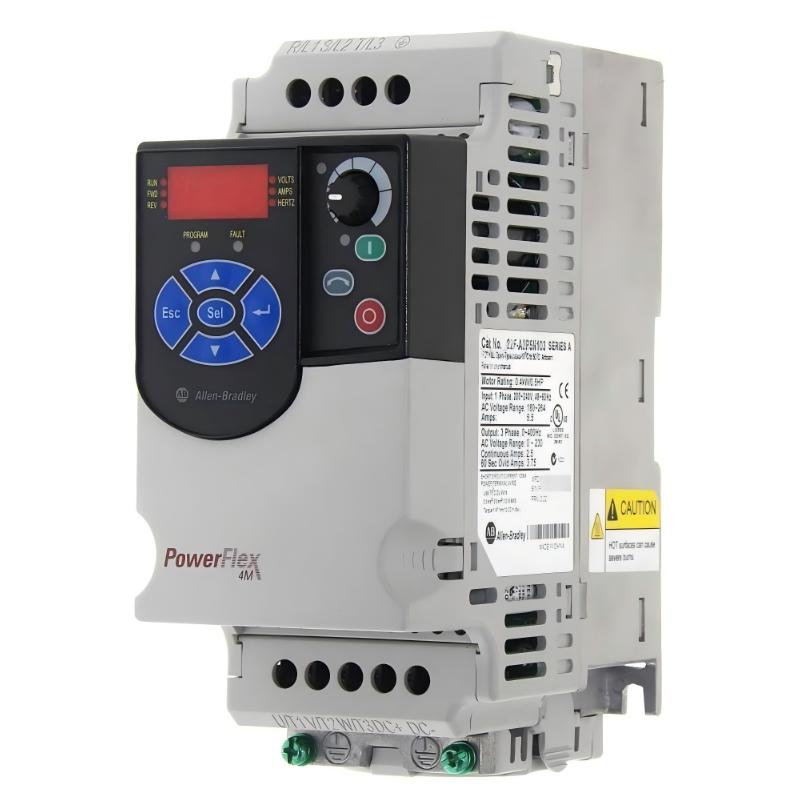

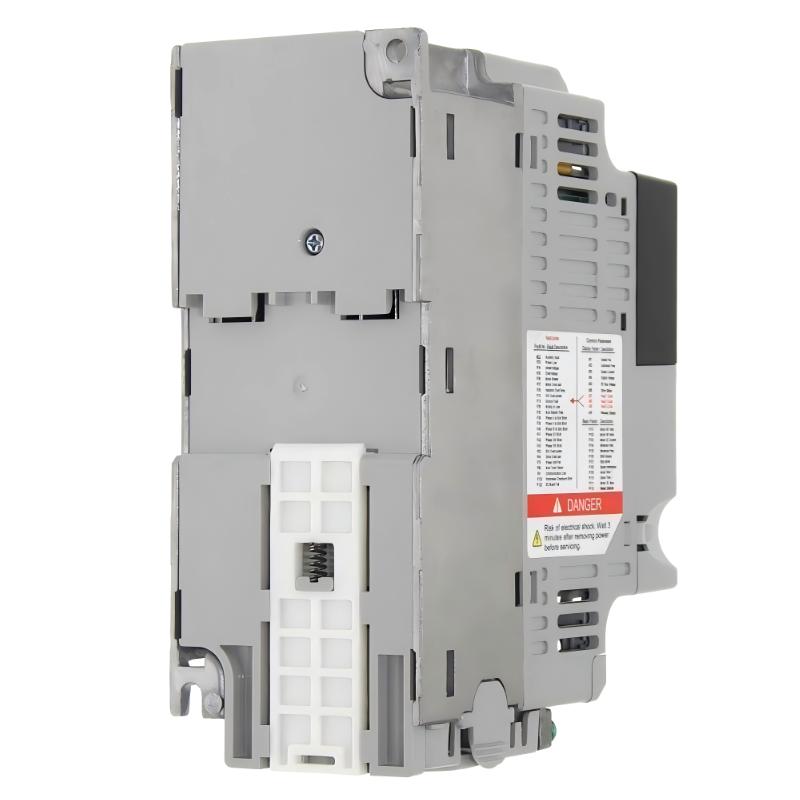

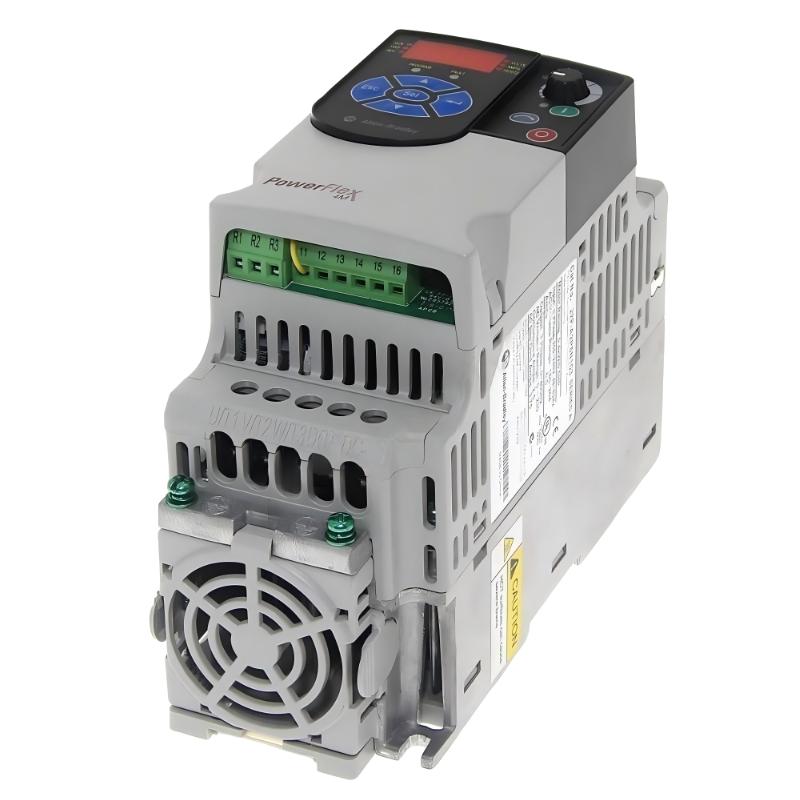

The Allen Bradley 22F-A2P5N103 PowerFlex 4M AC Drive is a compact variable frequency drive engineered for straightforward and dependable motor control. As part of the PowerFlex 4M family, it emphasizes simplicity, durability, and cost efficiency, making it a popular choice for OEMs and system integrators seeking reliable performance in light-duty applications.

With its streamlined configuration and robust protection features, this drive offers a practical balance between functionality and affordability, especially in systems where advanced motion control is not required but stable speed regulation is essential.

Technical Specifications

Feature	Specification
Model	22F-A2P5N103
Drive Series	PowerFlex 4M AC Drive
Input Voltage	200–240V AC, 1-phase
Output Voltage	0–240V AC, 3-phase
Output Current	2.5 A
Power Rating	0.37 kW (0.5 HP)
Control Method	V/Hz Control
Dimensions (L × W × H)	174 × 72 × 136 mm
Weight	1.6 kg (3.53 lb)
IP Rating	IP20
Communication	RS-485 Modbus
Ambient Temperature	Up to 50°C (122°F)

Applications

The 22F-A2P5N103 PowerFlex 4M AC Drive is designed for compact and cost-efficient motor speed control in light industrial automation systems. It is widely used where precise speed regulation and simple integration are required without sacrificing reliability.

Typical applications include:

Small conveyor systems in packaging and logistics lines
HVAC fan and pump control in commercial buildings
Light-duty material handling systems
OEM machinery requiring basic variable frequency control
Water circulation and auxiliary pumping systems

Its compact form factor makes it especially suitable for control panels with limited installation space, while still delivering stable motor performance under varying load conditions.

Advantages

Ultra-Compact Design: Optimized for tight panel installations with minimal wiring complexity
Cost-Effective Control Solution: Delivers essential VFD functionality without unnecessary complexity
Stable Motor Performance: Built-in slip compensation ensures smooth operation under load variation
Simple Commissioning: Intuitive keypad interface enables fast setup and configuration
Reliable Industrial Operation: Designed for long service life in standard industrial environments
Flexible Mounting: DIN rail and panel mounting options for versatile installation

Technical FAQs

What type of motor is compatible with this drive?
Three-phase AC induction motors designed for variable frequency operation.
Does it support single-phase input?
Yes, it supports 1-phase 200–240V AC input depending on configuration.
What control modes are available?
V/Hz control with adjustable acceleration and deceleration ramps.
Can it be integrated into PLC systems?
Yes, via RS-485 communication using Modbus protocol.
Is external braking required?
Optional braking components can be added depending on load inertia.
Does it support remote control?
Yes, remote keypad and external terminal control are supported.
What protection features are included?
Overcurrent, overvoltage, undervoltage, and thermal protection functions.
Can it operate in low-noise environments?
Yes, adjustable PWM carrier frequency helps reduce audible motor noise.
Is parameter backup supported?
Parameters can be stored and restored via keypad or software tools.
What happens during overload conditions?
The drive automatically limits output current and triggers protective shutdown if necessary.
