Introduction

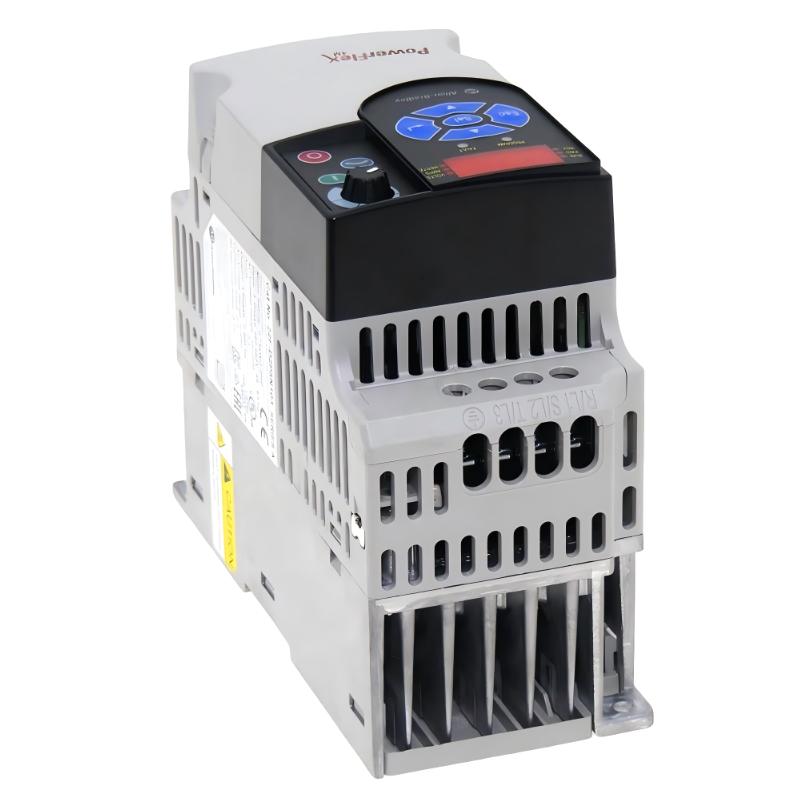

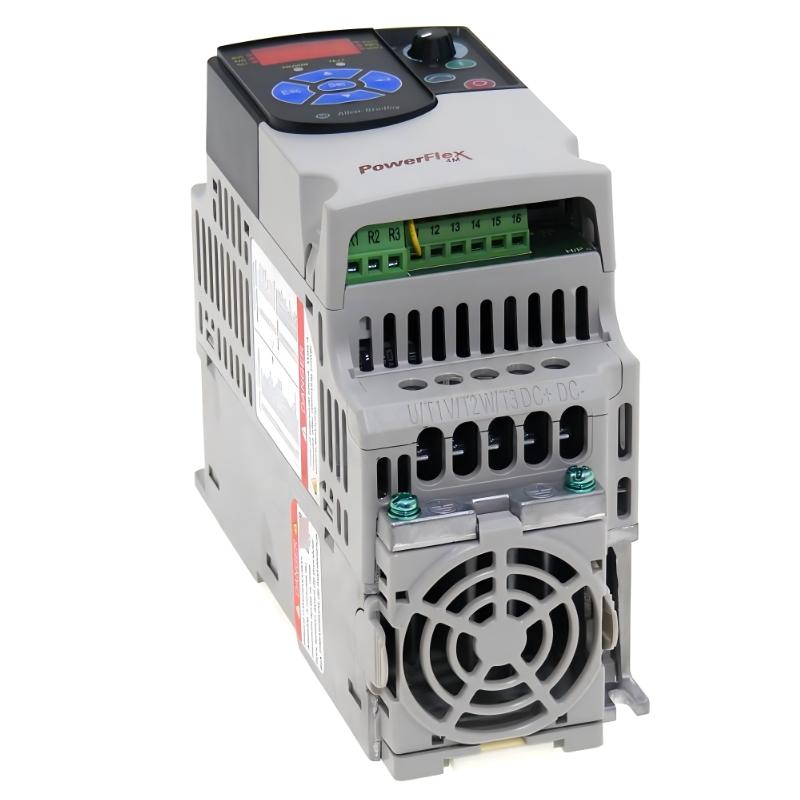

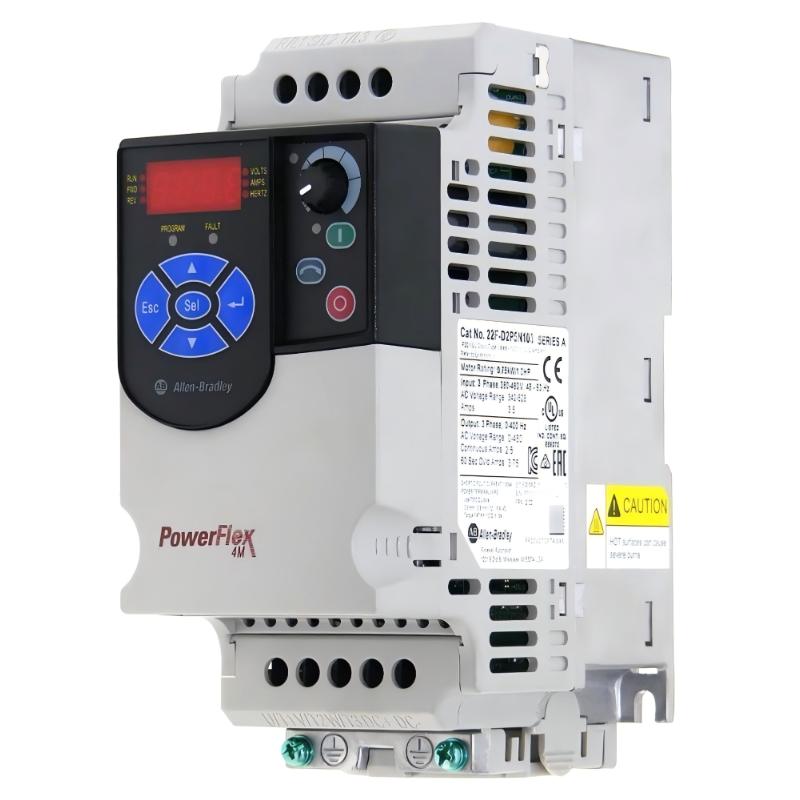

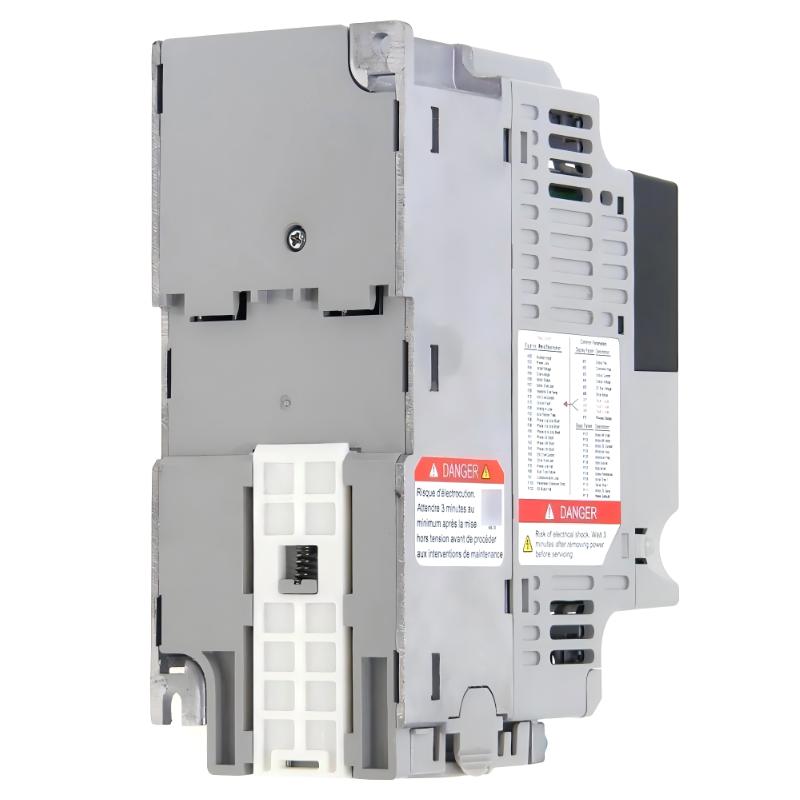

The Allen Bradley 22F-D2P5N103 PowerFlex 4M AC Drive is a highly reliable, cost-effective solution for small industrial automation tasks. Designed for easy integration, this VFD offers a balance of compact design, energy efficiency, and consistent motor performance. Its intuitive keypad interface, combined with RS-485 Modbus connectivity, ensures rapid commissioning and simple system management. Perfect for OEMs and system integrators, this drive is engineered for environments where space is limited but reliable motor control is critical.

Technical Specifications

Feature	Specification
Model	22F-D2P5N103
Drive Series	PowerFlex 4M AC Drive
Input Voltage	200–240V AC, 1-phase
Output Voltage	0–240V AC, 3-phase
Output Current	2.5 A
Power Rating	0.37 kW (0.5 HP)
Control Method	V/Hz Control
Dimensions (L × W × H)	174 × 72 × 136 mm
Weight	1.6 kg (3.53 lb)
IP Rating	IP20
Communication	RS-485 Modbus
Ambient Temperature	Up to 50°C (122°F)

Applications

The 22F-D2P5N103 PowerFlex 4M AC Drive delivers efficient and precise motor control for light-to-medium duty industrial applications. Its compact form factor and versatile features make it ideal for:

Small-scale conveyor systems in packaging, assembly, and logistics
Commercial HVAC fans and pumps
Light-duty material handling automation
OEM machinery requiring reliable VFD operation
Auxiliary water or process pumping systems

Its design emphasizes minimal space requirements without compromising motor performance, making it perfect for tight control cabinets.

Advantages

Compact Footprint: Slim 174 × 72 × 136 mm size allows side-by-side installation with zero stacking gaps
Quiet Operation: Ventilation only activates during motor operation, reducing noise and energy use
Reliable Performance: Maintains consistent speed even under variable load with advanced slip compensation
User-Friendly Interface: Integrated keypad with LED display simplifies commissioning and monitoring
Flexible Networking: RS-485 Modbus communication enables seamless PLC integration
Energy-Saving Design: Optimized PWM control reduces unnecessary power consumption

Technical FAQs

Can this drive control three-phase motors?
Yes, it outputs a 3-phase AC voltage suitable for induction motors.
Does it accept single-phase power input?
Yes, it operates on 1-phase 200–240V AC input.
What is the maximum operating temperature?
Rated for continuous operation up to 50°C (122°F).
Is it compatible with standard industrial enclosures?
Yes, the IP20-rated design fits panel or DIN-rail installations.
How precise is speed control?
Highly effective slip compensation ensures stable motor speed across load variations.
Can I monitor and adjust the drive remotely?
Yes, RS-485 Modbus allows PLC or computer-based monitoring and control.
Does it have built-in protection features?
Includes overcurrent, overvoltage, undervoltage, and thermal overload protection.
Is external braking required?
Optional braking components can be added depending on motor load inertia.
How is it mounted?
Panel mount with DIN rail compatibility; zero-spacing mounting possible.
Can multiple drives be installed side by side?
Yes, side-by-side “zero stacking” installation is supported for compact setups.
