Introduction

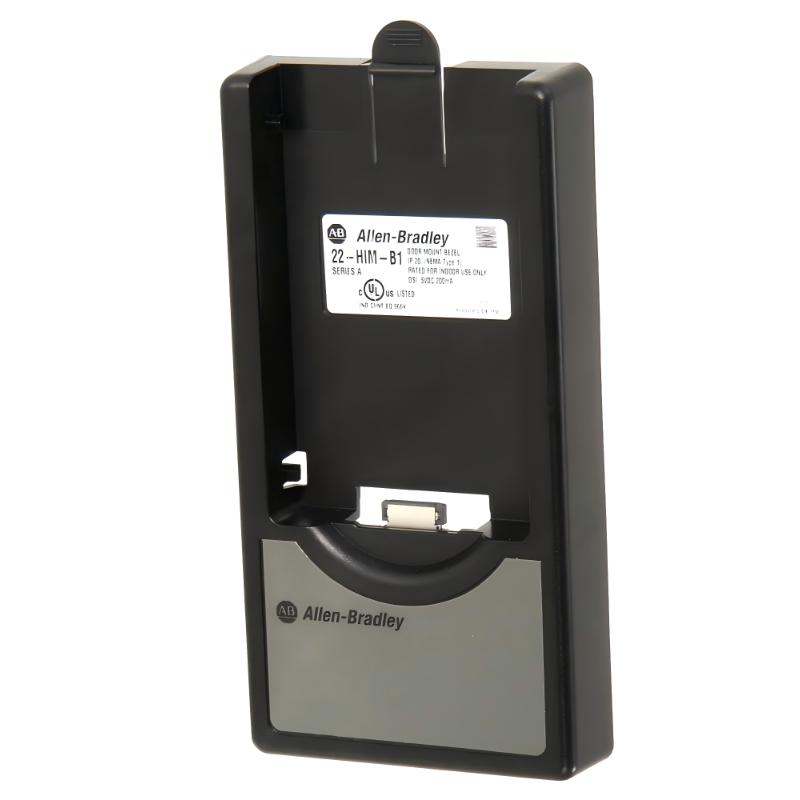

The Allen Bradley 22-HIM-B1 PowerFlex Mounting Panel Kit is a practical accessory designed to enhance the usability of PowerFlex drive systems by enabling remote Human Interface Module installation. Engineered for industrial environments where accessibility and operational efficiency are essential, this kit helps streamline drive interaction while maintaining system reliability.

By relocating the interface to a panel-mounted position, it improves workflow efficiency, reduces cabinet access requirements, and supports safer operational practices in modern automation systems.

Technical Specifications

Feature	Specification
Model	22-HIM-B1
Product Type	HIM Bezel Mounting Kit
Compatible Series	PowerFlex 4M / 40 / 40P / 400
Communication Type	DSI (Digital Serial Interface)
Interface Connection	RJ45
Enclosure Rating	IP30 (NEMA Type 1)
Dimensions (L × W × H)	191.1 × 25.2 × 93 mm
Weight	0.14 kg (0.31 lb)
Installation Type	Panel Mount
Included Components	Mounting bezel kit, connection cable

Applications

The 22-HIM-B1 PowerFlex Mounting Panel Kit is designed to provide secure, accessible remote mounting for Human Interface Modules (HIM) used in PowerFlex drive systems. It is widely applied in environments where operator accessibility, panel ergonomics, and safe drive interaction are critical.

Typical applications include:

Industrial control cabinets requiring external drive interface access
Manufacturing lines with centralized operator control stations
HVAC and process automation panels needing remote monitoring access
OEM machinery where frequent parameter adjustment is required
Retrofit installations upgrading existing PowerFlex drive accessibility

This kit enhances usability by relocating the HIM interface to a more convenient and operator-friendly position without compromising system integrity.

Advantages

Enhanced Operator Accessibility: Allows HIM placement outside the control cabinet for easier interaction
Improved Panel Organization: Reduces clutter inside electrical enclosures
Reliable Industrial Design: Built for stable performance in demanding automation environments
Easy Integration: Compatible with multiple PowerFlex drive families
Secure Mounting System: Ensures stable installation of HIM modules with minimal vibration impact
Flexible Installation Options: Supports standardized panel cut-out configurations for OEM designs

Technical FAQs

What is the primary function of this kit?
It enables remote panel mounting of PowerFlex Human Interface Modules for easier operator access.
Which drives is it compatible with?
It is compatible with PowerFlex 4M, PowerFlex 40, PowerFlex 40P, and PowerFlex 400 series.
Does it include communication cabling?
Yes, it includes an RJ45 connection cable for linking the HIM to the drive.
Is this kit suitable for outdoor installation?
No, it is rated IP30 (NEMA Type 1) and intended for indoor use only.
What type of HIM does it support?
It is designed for DSI-based LCD Human Interface Modules, including remote-mounted versions.
Can it be used in retrofit projects?
Yes, it is commonly used in retrofit upgrades to improve operator interface access.
Does it require additional power supply?
No, it draws power directly through the connected drive communication interface.
What communication method is used?
It operates through Rockwell’s DSI communication protocol via RJ45 connection.
Is the installation complex?
Installation is straightforward with panel mounting hardware and predefined cutout requirements.
Does it support multiple HIM connections?
No, it is designed for a single remote HIM interface per drive connection.
