Introduction

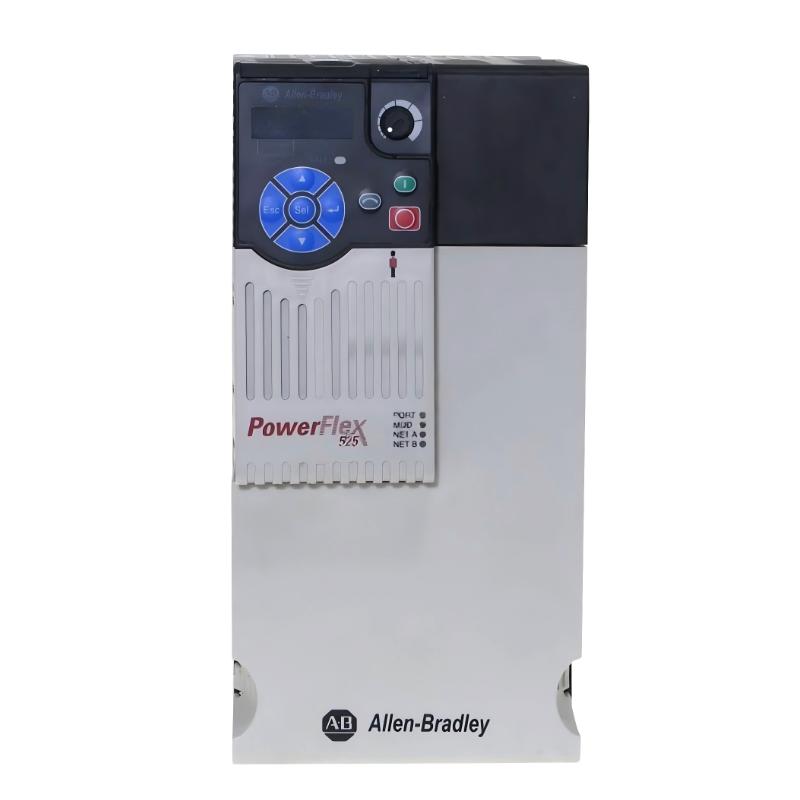

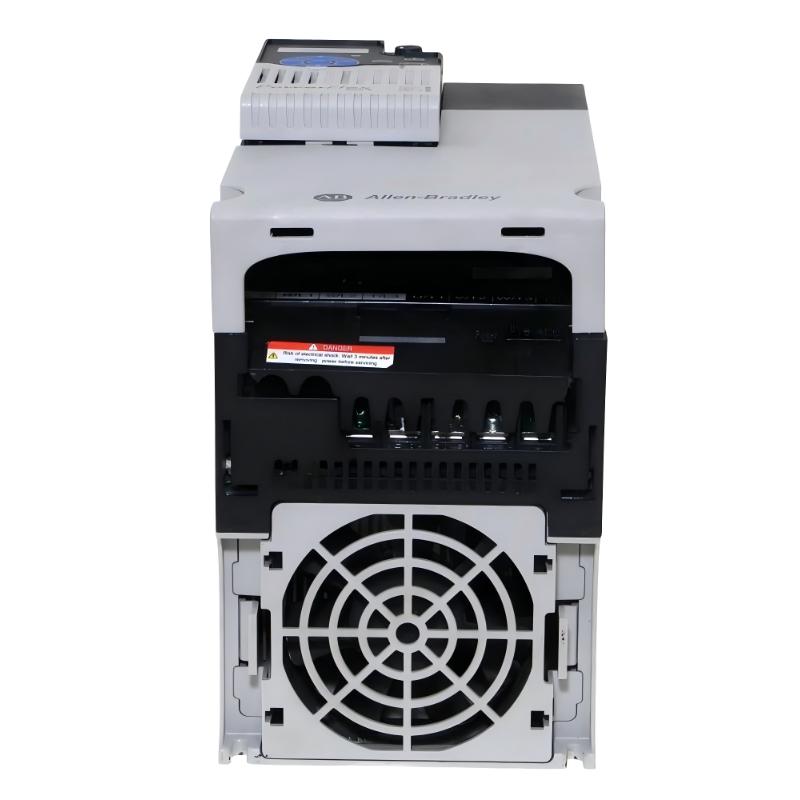

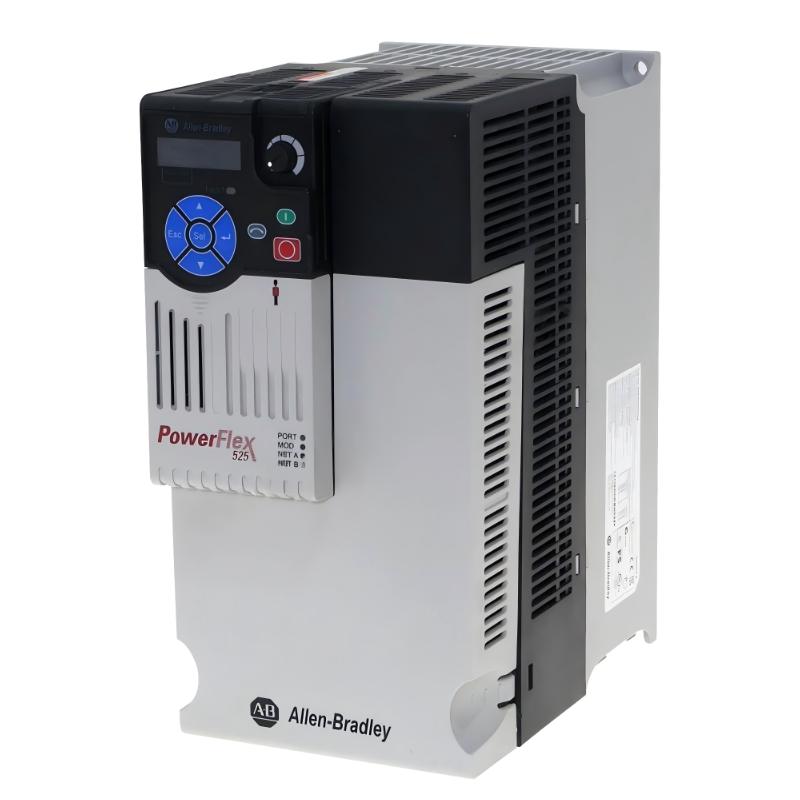

The Allen Bradley 25B-B032N104 PowerFlex 525 AC Drive delivers advanced motor control in a compact industrial package. Engineered for demanding automation systems, it combines high performance, flexible connectivity, and energy-efficient operation to improve productivity and reliability.

Designed for OEMs, system integrators, and maintenance teams, this drive streamlines installation and commissioning while providing robust protection and precise control for industrial motors.

Technical Specifications

Feature	Specification
Model	25B-B032N104
Drive Series	PowerFlex 525 AC Drive
Input Voltage	200–240V AC, 1- or 3-phase
Output Voltage	0–240V AC, 3-phase
Output Current	32 A
Power Rating	15 kW (20 HP)
Control Method	V/Hz, Sensorless Vector, PID
Dimensions (L × W × H)	260 × 130 × 212 mm
Weight	3.9 kg (8.60 lb)
Communication	Ethernet/IP, DeviceNet, Modbus
Enclosure Rating	IP20
Ambient Operating Temperature	0–50°C (32–122°F)

Applications

The 25B-B032N104 PowerFlex 525 AC Drive is designed for precise, reliable motor control in medium- to high-performance industrial systems. Its applications include:

Conveyor systems and packaging lines in manufacturing
Pumps, fans, and HVAC automation
Material handling and assembly machinery
OEM equipment requiring advanced VFD performance
Retrofit projects upgrading older drives to modern automation standards

Its robust design and wide control flexibility make it ideal for applications demanding high performance in a compact footprint.

Advantages

High Performance: Supports precise speed and torque control for demanding industrial applications
Robust Industrial Design: Built to withstand harsh factory environments and vibration
Flexible Control: V/Hz and sensorless vector control with advanced PID features
Integrated Connectivity: Supports Ethernet/IP, DeviceNet, and Modbus for seamless PLC integration
Energy Efficient Operation: Reduces energy consumption while maintaining optimal motor output
User-Friendly Interface: Full-color LCD display with intuitive keypad for fast configuration and monitoring

Technical FAQs

What motor types are compatible?
Three-phase AC induction motors with ratings matching the drive’s output.
Can it handle regenerative loads?
Yes, it has built-in braking and torque control to handle regenerative torque.
What input voltages are supported?
200–240V AC single-phase or 3-phase, depending on configuration.
Which control modes are available?
V/Hz, sensorless vector, and enhanced PID control for process applications.
Does it provide diagnostic feedback?
Yes, real-time fault codes, event logging, and system status indicators are available.
Is it suitable for high ambient temperatures?
Rated for continuous operation up to 50°C (122°F).
Can it integrate with PLCs?
Yes, via Ethernet/IP, DeviceNet, or Modbus communication protocols.
What protection features are included?
Overload, overcurrent, overvoltage, undervoltage, and thermal protection.
Does it support remote operation?
Yes, the drive can be controlled via keypad or external terminals.
Is installation flexible?
Panel mounting supported; the compact design allows multiple drives to be installed side-by-side when necessary.
