Introduction

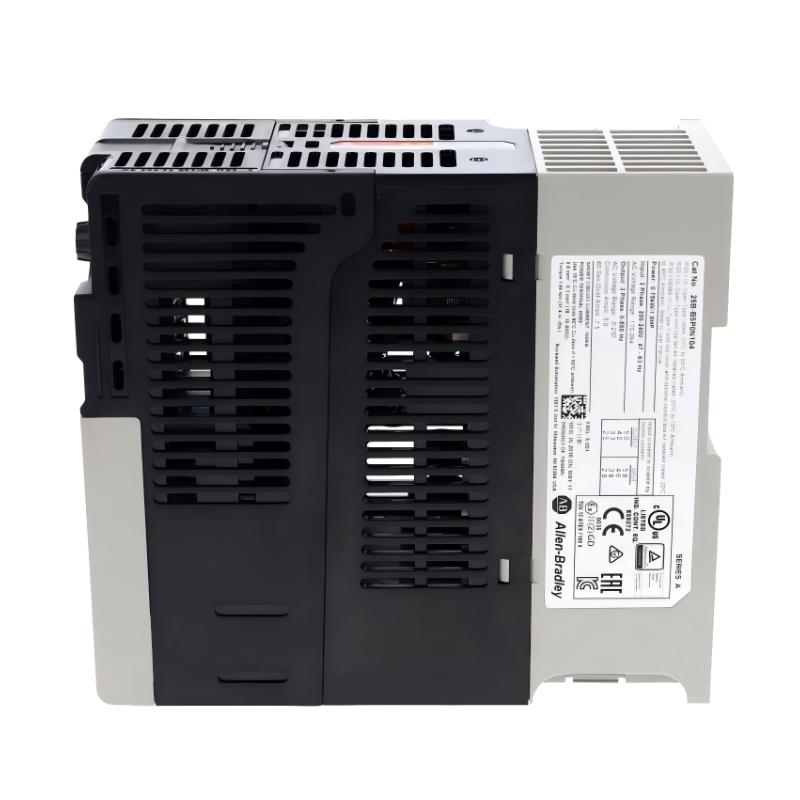

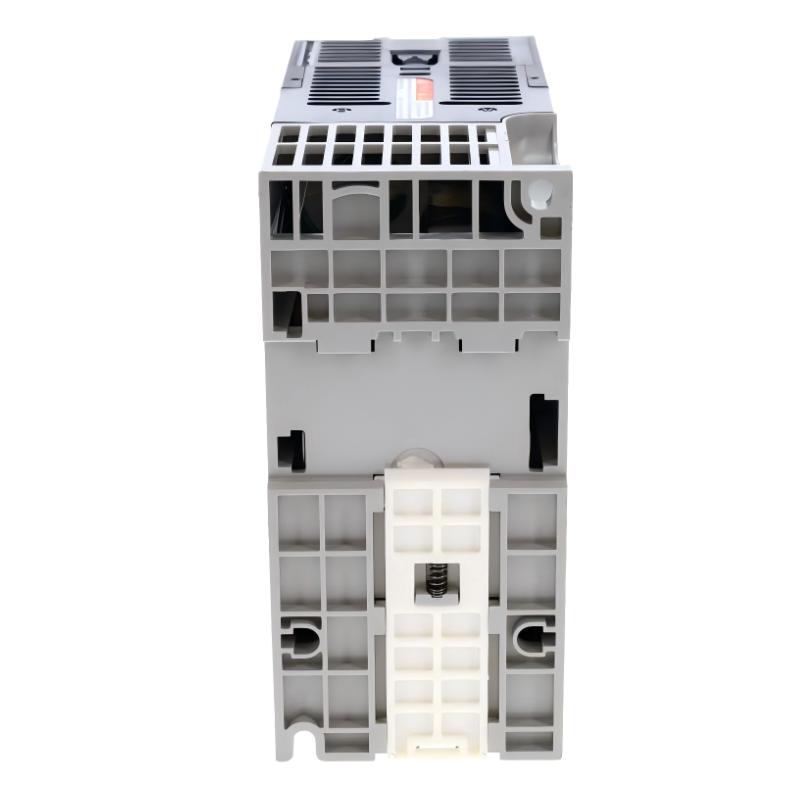

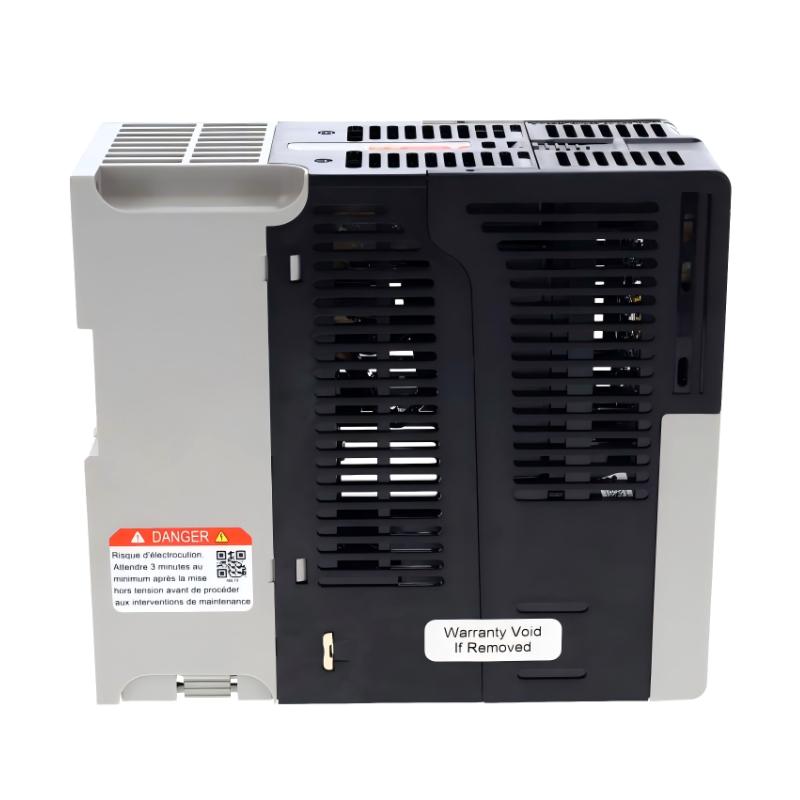

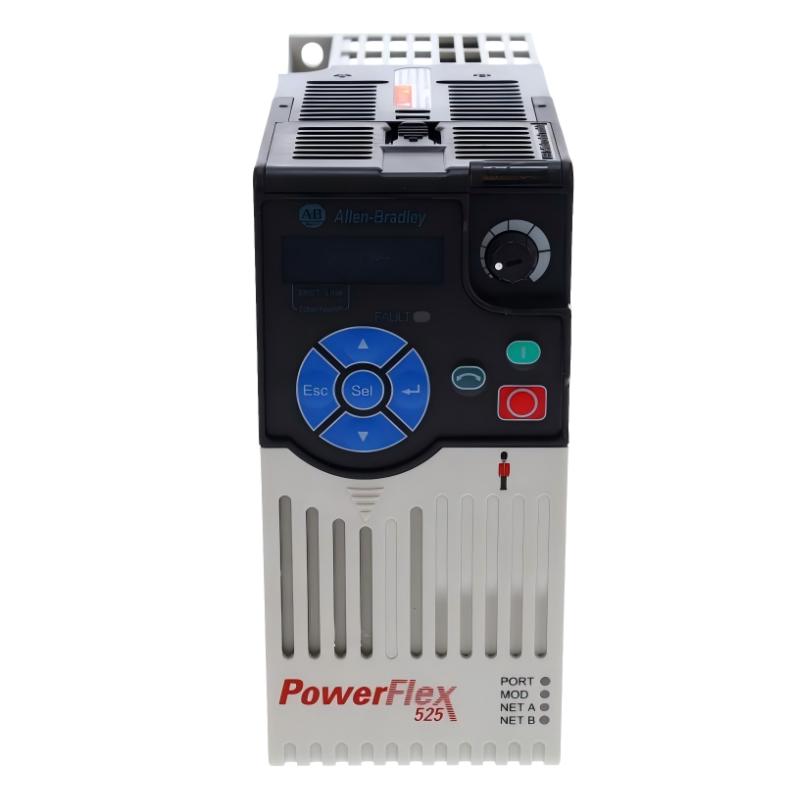

The Allen Bradley 25B-B5P0N104 PowerFlex 525 AC Drive delivers compact, reliable motor control for industrial automation systems. Combining efficiency, flexibility, and robust protection features, it allows manufacturers and system integrators to achieve precise speed and torque management while simplifying installation and operation.

This drive is ideal for OEMs, system integrators, and maintenance teams seeking a dependable solution for light- to medium-duty industrial applications.

Technical Specifications

Feature	Specification
Model	25B-B5P0N104
Drive Series	PowerFlex 525 AC Drive
Input Voltage	200–240V AC, 3-phase
Output Voltage	0–240V AC, 3-phase
Output Current	5 A
Power Rating	0.75 kW (1 HP)
Control Method	V/Hz, Sensorless Vector
Dimensions (L × W × H)	172 × 72 × 152 mm
Weight	1.1 kg (2.43 lb)
Communication	Modbus
Enclosure Rating	IP20
Ambient Operating Temperature	0–50°C (32–122°F)

Applications

The 25B-B5P0N104 PowerFlex 525 AC Drive is engineered for precise, reliable motor control in compact industrial automation systems. It is suitable for:

Conveyor and packaging systems in manufacturing
Pumps and fans in HVAC and process automation
Light material handling and assembly machinery
OEM equipment requiring flexible motor control
Retrofit upgrades replacing older variable frequency drives

Its compact size and efficient performance make it ideal for tight control cabinets and smart factory environments.

Advantages

Compact and Efficient: 172 × 72 × 152 mm footprint fits tight panels without sacrificing performance
Flexible Control: V/Hz and sensorless vector modes for precise speed and torque management
Energy Optimization: Reduces energy consumption while maintaining consistent output
Integrated Connectivity: Supports Modbus and other industrial communication standards for easy integration
Robust Industrial Design: Built for long-term reliability under standard factory conditions
User-Friendly Interface: Intuitive keypad allows fast configuration and real-time monitoring

Technical FAQs

Which motors can be controlled?
Compatible with three-phase AC induction motors within the drive’s current rating.
What voltage input is required?
200–240V AC, 3-phase input.
Does it support different control methods?
Yes, it supports V/Hz control and sensorless vector control.
Can it operate in standard industrial environments?
Yes, rated for ambient temperatures up to 50°C (122°F).
Is remote operation supported?
Yes, via external terminals and industrial communication networks.
Does it include protection features?
Yes, overcurrent, overload, and undervoltage protections are included.
Is installation flexible?
Yes, compact design allows side-by-side panel installation.
Can it be used in retrofit applications?
Yes, suitable for replacing older AC drives in existing panels.
Does it support monitoring and diagnostics?
Yes, the keypad provides real-time system status and fault indications.
Is maintenance required?
No routine maintenance is needed; designed for long-term operation.
