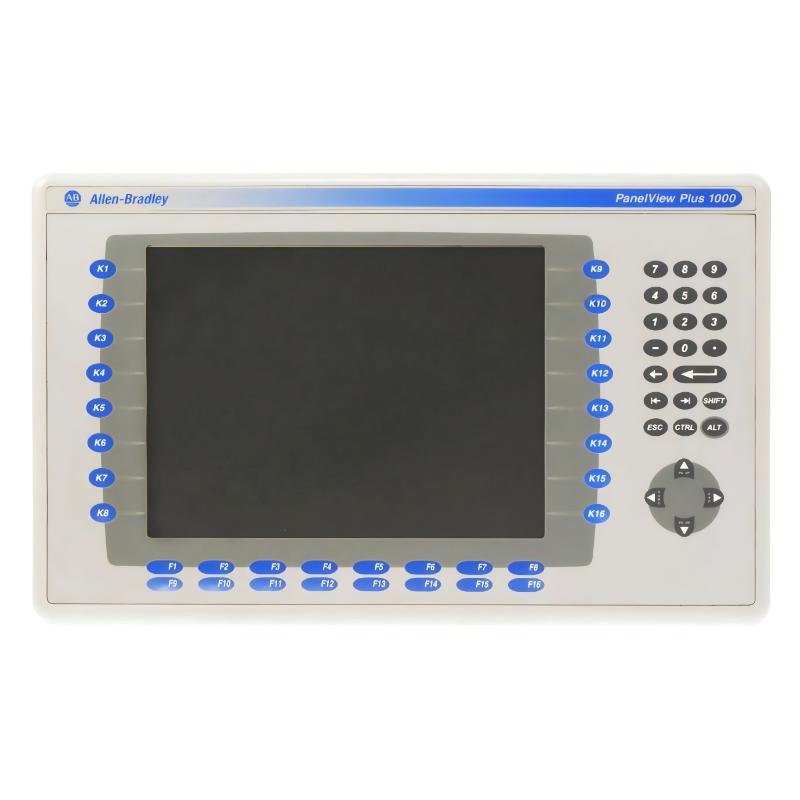

Allen Bradley 2711P-K10C4D8 PanelView Plus 6 1000 Operator Interface
Allen Bradley 2711P-K10C4D8 PanelView Plus 6 1000 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-K10C4D8 Product Origin:USA Product Dimensions:399 x 55 x 248 mm Product Weight:2.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711P-K10C4D8 PanelView Plus 6 1000 Operator Interface delivers a powerful and reliable HMI solution for industrial automation systems requiring clear visualization and efficient control. Its large display, dual-input operation, and strong integration with Rockwell Automation platforms make it a dependable choice for complex manufacturing environments. Designed for durability and long-term stability, it enhances operator efficiency while maintaining consistent system performance.
Technical Specifications
Technical Parameter
Specification
Product Model
2711P-K10C4D8
Product Series
PanelView Plus 6 1000
Display Size
10.4-inch TFT Color Display
Resolution
640 × 480 Pixels
Input Method
Touchscreen + Keypad
Dimensions (W × H × D)
399 × 248 × 55 mm
Weight
2.8 kg (6.17 lb)
Input Voltage
18–32 VDC
Power Consumption
Approx. 70 W
Communication Interfaces
Ethernet, RS-232, USB
Memory
512 MB RAM / 512 MB Flash
Operating Temperature
0°C to 50°C
Storage Temperature
-25°C to 70°C
Relative Humidity
5% to 95% Non-condensing
Mounting Method
Panel Mount
Protection Rating
IP65 / NEMA 4X (front)
Certifications
CE, UL, cUL
Applications
The Allen Bradley 2711P-K10C4D8 PanelView Plus 6 1000 is designed for industrial environments that require reliable high-resolution visualization, efficient operator interaction, and stable PLC communication in medium to large automation systems.
Typical applications include:
Automated production lines
Packaging and bottling systems
Material handling and conveyor control
Food and beverage manufacturing
Pharmaceutical processing systems
Water treatment and utility monitoring
Energy management systems
SCADA operator interface stations
Advantages
High-resolution 10.4-inch display: Enhances process visibility and operator awareness
Dual-input design: Supports both touchscreen and keypad operation for flexibility
Strong system compatibility: Integrates with ControlLogix, CompactLogix, and MicroLogix PLCs
Efficient alarm management: Real-time alarm display and acknowledgment
Robust industrial design: Built for continuous operation in harsh environments
Secure user access control: Supports multi-level operator permissions
Reliable communication architecture: Ethernet and serial connectivity for stable data exchange
Technical FAQs
Which PLC systems are compatible with this model?
It supports Allen Bradley ControlLogix, CompactLogix, and MicroLogix controllers via Ethernet and serial communication.
Does it support both touchscreen and keypad input?
Yes, it features a hybrid input system combining touchscreen and physical keypad controls.
Can it display real-time process data?
Yes, it supports dynamic tag-based visualization of live industrial data.
Is application memory retained after power loss?
Yes, all runtime applications are stored in non-volatile flash memory.
Can multiple screens be configured?
Yes, multiple operator screens, alarm pages, and trend displays can be configured.
How are alarms handled?
Alarms are displayed, logged, and can be acknowledged directly on the interface.
Does it support communication diagnostics?
Yes, built-in diagnostics provide Ethernet and controller communication status.
Can user access levels be configured?
Yes, multi-level security settings allow restriction of critical functions.
Is firmware upgrade supported?
Yes, firmware can be updated using Rockwell Automation maintenance tools.
Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial operation under recommended conditions.
