Schneider ATV650U30N4 Variable-Speed Drive

Industrial Motor Control Applications and Efficient Process Automation Performance

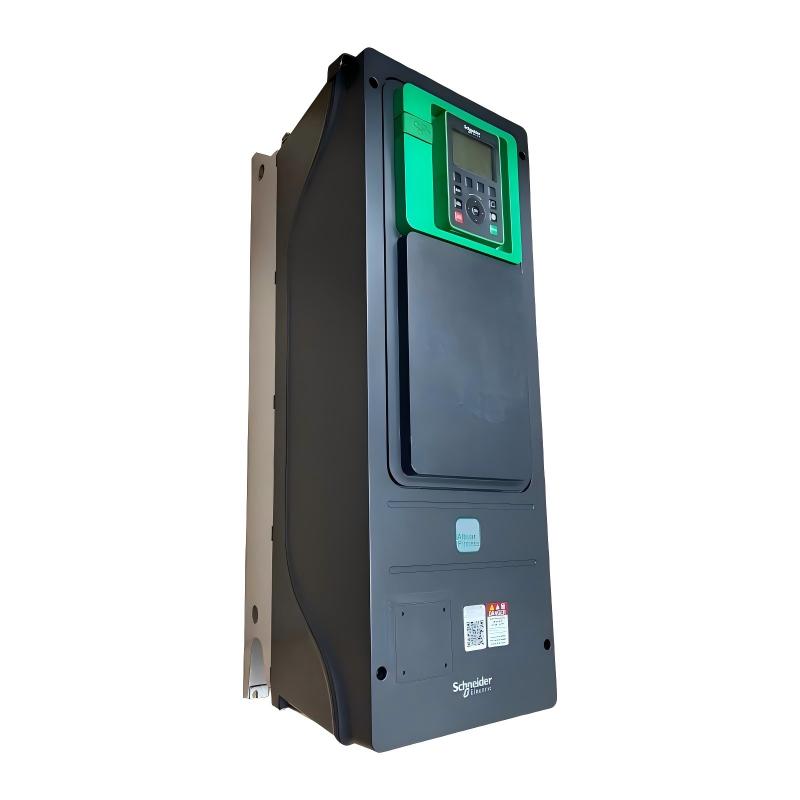

The Schneider ATV650U30N4 Variable-Speed Drive is a compact Altivar Process ATV650 AC drive designed for reliable speed regulation, energy optimization, and intelligent motor management in modern industrial environments. With a 3 kW power rating, this drive provides precise control for three-phase asynchronous and synchronous motors used in process equipment, automation systems, and industrial machinery.

Engineered for applications requiring stable operation and improved efficiency, the ATV650U30N4 supports 380 to 480 VAC three-phase power supply and features an IP55 industrial protection rating. Its compact wall-mounted structure allows flexible installation in machine systems, production lines, and industrial facilities where space efficiency and reliable motor control are important.

The drive belongs to Schneider Electric’s Altivar Process ATV650 family, integrating advanced motor control functions, process monitoring capability, and energy management features. It helps users reduce operating costs, improve equipment availability, and maintain consistent production performance.

Typical application areas include:

• Industrial pumping systems
• HVAC and ventilation equipment
• Water and wastewater treatment systems
• Conveyor and material handling machines
• Packaging and production automation lines
• Process manufacturing equipment
• Cooling and fluid control applications
• OEM machine automation solutions

The ATV650U30N4 is designed for engineers who need a dependable variable-speed solution that combines compact installation, intelligent diagnostics, and efficient motor operation.

Drive Advantages and Industrial Automation Benefits

Reliable 3 kW Motor Speed Control

The ATV650U30N4 provides accurate frequency conversion and torque management, allowing motors to operate according to actual process requirements. This improves system stability while reducing unnecessary energy consumption.

Advanced Altivar Process Technology

Built on the Altivar Process platform, the drive provides embedded monitoring and energy management functions that help operators understand equipment performance and optimize production processes.

Flexible Motor Compatibility

The drive supports both asynchronous and synchronous motors, giving engineers greater flexibility when selecting motors for different industrial applications.

Industrial IP55 Protection

The IP55 enclosure design improves resistance against dust and water exposure, allowing the drive to be installed closer to operating equipment without requiring additional protective cabinets.

Energy-Efficient Operation

By adjusting motor speed based on real-time process demand, the ATV650U30N4 helps reduce power consumption in variable-load applications such as pumps and fans.

Enhanced Communication Capability

The drive supports integration with automation systems through industrial communication interfaces, allowing connection with PLC, SCADA, and DCS platforms for monitoring and control.

Simplified Maintenance Management

Integrated diagnostic functions allow maintenance engineers to analyze operating conditions, review fault information, and improve troubleshooting efficiency.

Compact Installation Design

The optimized structure provides an efficient solution for applications where control panel space and installation flexibility are important considerations.

Technical FAQs – Schneider ATV650U30N4 Variable-Speed Drive

1. What is the main function of the Schneider ATV650U30N4?
The ATV650U30N4 controls AC motor speed and torque by regulating output frequency and voltage, providing efficient variable-speed operation.

2. What motor power rating does the ATV650U30N4 support?
The drive is designed for 3 kW motor applications with three-phase industrial power systems.

3. What voltage supply is required for the ATV650U30N4?
The drive operates with a three-phase power supply range of 380 to 480 VAC.

4. Which motor types are compatible with this variable-speed drive?
The ATV650U30N4 supports asynchronous motors and synchronous motors used in industrial automation systems.

5. What causes an overcurrent fault during operation?
Possible causes include excessive mechanical load, incorrect acceleration settings, motor cable problems, short circuits, or incorrect motor parameters.

6. How can a communication fault between PLC and drive be diagnosed?
Check communication parameters, network wiring, address configuration, controller settings, and drive communication status.

7. Why does the drive trip during acceleration?
Acceleration trips may occur due to insufficient ramp time, excessive starting torque requirements, incorrect motor data, or mechanical blockage.

8. Can the ATV650U30N4 be used for pump and fan applications?
Yes. The drive is suitable for variable-speed applications where energy savings and stable operation are required.

9. How can an undervoltage fault be resolved?
Inspect incoming power quality, electrical connections, protective devices, and supply voltage stability.

10. What maintenance checks should be performed on the ATV650U30N4?
Regular maintenance should include cooling inspection, terminal tightening, parameter backup, fault history review, and environmental checks.
