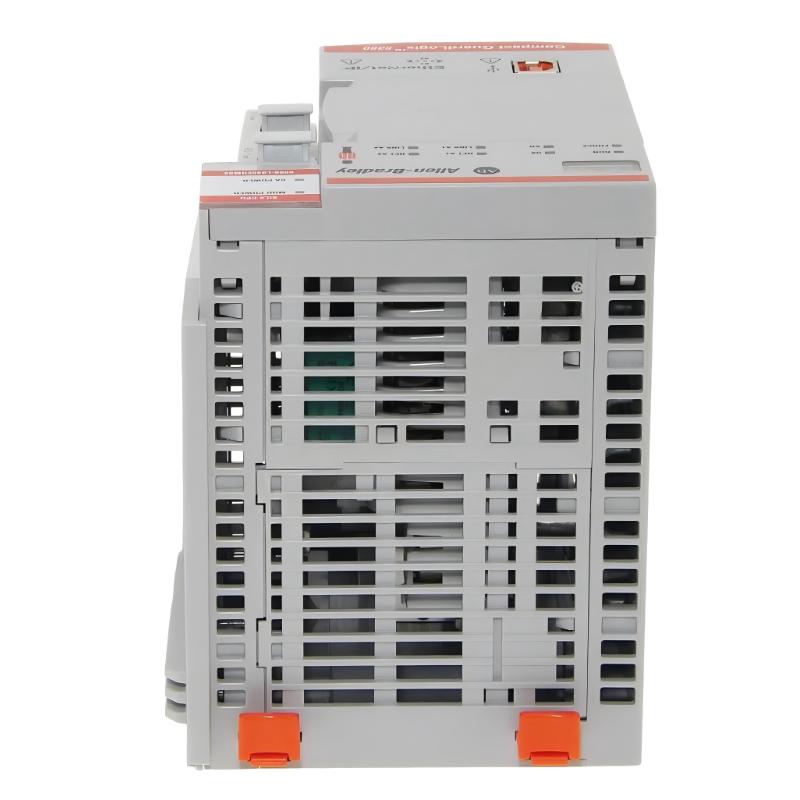

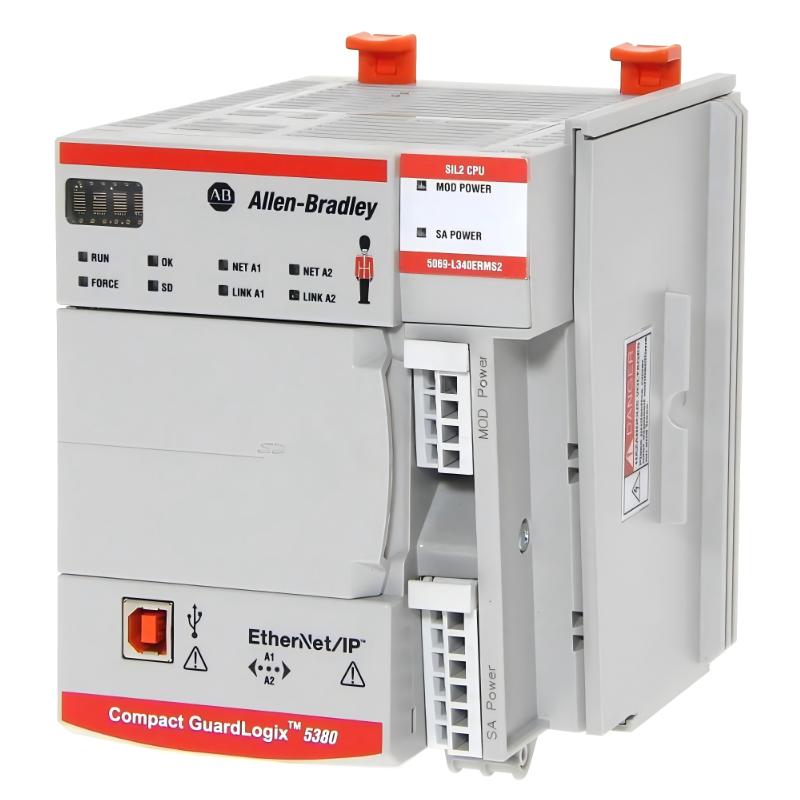

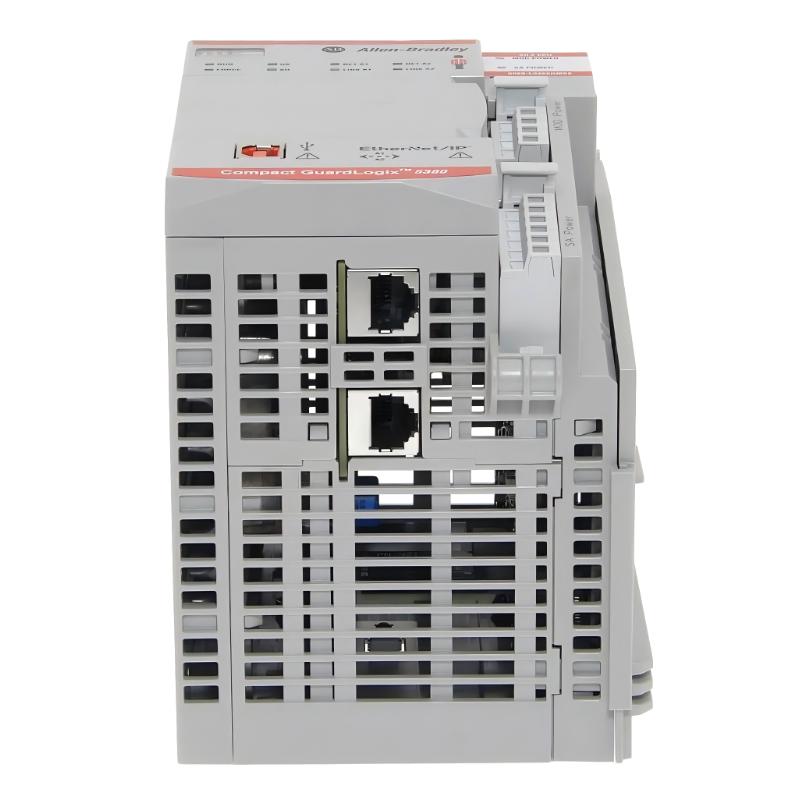

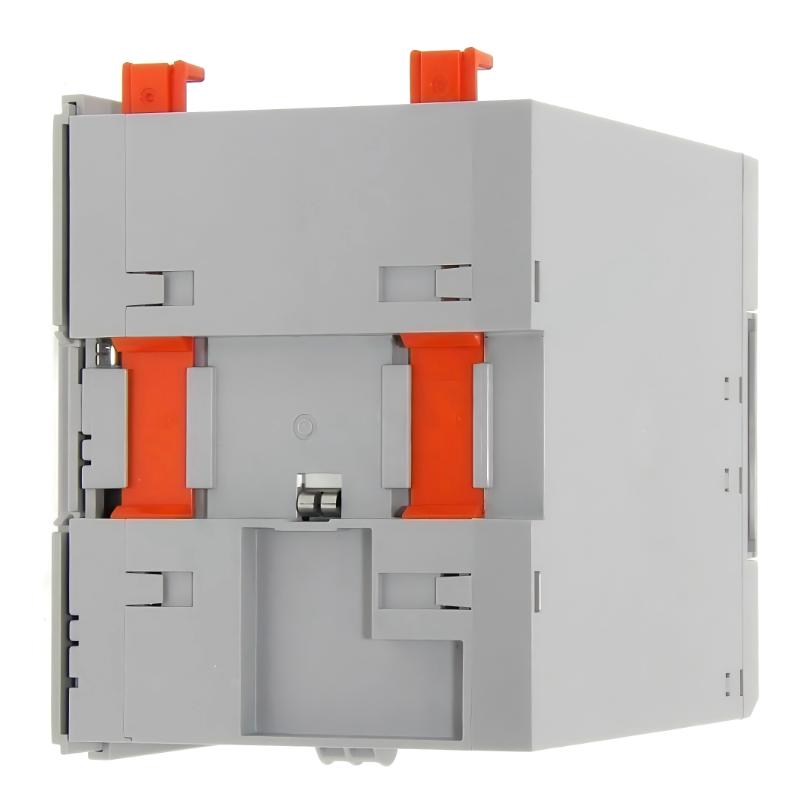

Allen Bradley 5069-L340ERMS2 Compact CompactLogix 5380 Safety Controller
Allen Bradley 5069-L340ERMS2 Compact CompactLogix 5380 Safety Controller
0.0
Points
Brand:Allen Bradley PLC Item No.:5069-L340ERMS2 Product Origin:USA Product Dimensions:143.97 x 101.7 x 136.81 mm Product Weight:0.768 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5069-L340ERMS2 CompactLogix 5380 Safety Controller is a high-performance industrial automation controller designed for applications requiring both advanced machine control and certified safety functionality. It integrates standard and safety logic within a compact architecture, enabling manufacturers to implement efficient, space-saving control systems without compromising on functional safety or performance. Its robust design and EtherNet/IP connectivity make it suitable for modern smart manufacturing environments.
Technical Specifications
Parameter
Specification
Product Model
5069-L340ERMS2
Series
Compact GuardLogix 5380
Controller Type
Safety Programmable Automation Controller
Safety Rating
SIL2 / PLd
Standard Memory
4 MB
Safety Memory
2 MB
Max I/O Modules
31 Compact 5000 I/O modules
Ethernet Nodes
Up to 90
Integrated Motion
Up to ~20 axes (system dependent)
Communication Ports
2 × EtherNet/IP, 1 × USB
Power Supply
18–32 VDC
Power Dissipation
~9 W
Operating Temperature
0°C to 60°C
Mounting Type
DIN rail
Dimensions
143.97 × 101.7 × 136.81 mm
Weight
0.768 kg
Recommended Related Models
Model
Product Name
5069-L320ERMS2
Allen-Bradley CompactLogix 5380 Safety Controller 4MB Standard
5069-L3100ERMS2
Allen-Bradley Compact GuardLogix 5380 High Memory Safety Controller
• Safety-rated machine automation and motion control systems
Used in high-performance machinery where integrated safety functions (SIL2 / PLd) are required alongside standard control logic.
• Industrial safety systems (SIS / machine guarding applications)
Supports safety interlocks, emergency stop logic, and protective stop functions in automated production environments.
• High-speed manufacturing and packaging lines
Manages synchronized machine sequences while maintaining integrated safety monitoring for operators and equipment.
• Oil & gas and energy infrastructure control systems
Deployed in compressors, pumping stations, and process units requiring certified safety control capability.
• Motion-enabled automated equipment systems
Handles coordinated motion control over EtherNet/IP for multi-axis industrial machines with safety supervision.
• Complex OEM machinery with integrated safety requirements
Used by machine builders to deliver compact, certified safety control solutions in packaged automation systems.
Key Advantages
• Integrated safety controller with SIL2 / PLd capability
Combines standard control and certified safety functions in a single CompactLogix 5380 platform.
• Dual memory architecture for standard and safety logic separation
Ensures deterministic execution of safety routines independent of standard program tasks.
• High-performance EtherNet/IP communication
Supports fast data exchange, Device Level Ring (DLR), and distributed safety integration.
• Compact GuardLogix architecture in space-saving form factor
Reduces cabinet space while maintaining advanced safety functionality.
• Integrated diagnostics and safety status monitoring
Provides real-time fault detection, safety task monitoring, and system health visibility.
• Certified for industrial safety compliance
Designed to meet functional safety standards for machine and process protection applications.
Technical FAQs
Q1: What is the main function of the 5069-L340ERMS2?
A1: It is a safety-rated programmable controller combining standard automation and SIL2 safety control functions.
Q2: What safety level does it support?
A2: It supports SIL2 / PLd safety integrity levels.
Q3: Does it support motion control?
A3: Yes, it supports integrated motion over EtherNet/IP depending on system configuration.
Q4: How many I/O modules can it support?
A4: It supports up to 31 Compact 5000 I/O modules.
Q5: What is the difference between standard and safety tasks?
A5: Safety tasks are isolated, certified logic executed independently from standard control tasks.
Q6: Is redundancy supported?
A6: It does not provide full controller redundancy like ControlLogix redundancy systems.
Q7: What programming software is used?
A7: Studio 5000 Logix Designer is used for both standard and safety programming.
Q8: What communication ports are available?
A8: Dual EtherNet/IP ports and a USB programming interface.
Q9: Which industries commonly use this controller?
A9: Manufacturing, oil & gas, packaging, energy, and OEM machinery sectors.
Q10: What makes it different from standard 5380 controllers?
A10: It includes integrated safety processing (SIL2/PLd) in addition to standard control capabilities.
