Introduction

The PW501-S1 is part of Yokogawa’s industrial power supply lineup, designed to deliver stable and regulated DC power for critical automation systems. It plays a foundational role in distributed control architectures by ensuring uninterrupted power delivery to system modules.

In industrial environments where stability and uptime are essential, this module supports continuous operation of control hardware under varying load and environmental conditions. Its robust design and compatibility with redundancy configurations make it a key component in high-availability control systems.

Technical Specifications

Parameter	Specification
Product Type	Power Module
Model	PW501-S1
System Compatibility	Yokogawa CENTUM CS/VP
Function	AC to DC power conversion
Output Voltage	Stable DC output (system dependent)
Input Voltage	Wide-range AC input (industrial standard)
Protection	Overvoltage, overcurrent, short circuit
Installation Type	Rack-mounted module
Redundancy Support	Yes
Application	Industrial automation systems
Operating Environment	Process control industries
Dimensions	137 × 80 × 55 mm
Weight	1.05 kg

Recommended Related Models

Model	Product Name
PW502	Yokogawa Next-Generation Power Module
PW301	Yokogawa Basic Power Supply Module
ADV551-P63	Yokogawa Digital Output Module
ALE111	Yokogawa Communication Module

Popular Related Models

Model	Product Name
Yokogawa CENTUM VP	Distributed Control System Platform
Yokogawa FIO Series	Field Input/Output Modules
Yokogawa AAI141	Analog Input Module
Yokogawa AAI543	Analog Output Module

Typical Industrial Applications

• Power supply for Yokogawa CENTUM CS/VP control systems

• Distributed control system (DCS) cabinet power distribution

• Powering I/O modules, communication modules, and controllers

• Industrial automation systems in oil & gas and petrochemical plants

• Power backup and redundancy configurations in control racks

Key Engineering Advantages

• Stable AC-to-DC conversion ensures consistent system power supply

• Designed for continuous 24/7 industrial operation

• Supports redundant configuration for higher system availability

• Compact rack-mounted design simplifies cabinet integration

• Built-in protection against overvoltage, overcurrent, and short circuits

• Optimized thermal design supports long-term reliability in control systems

Technical FAQs

1. What is the main function of this module?
It converts AC input power into stable DC power for control system components.

2. What systems is it used with?
It is mainly used in Yokogawa CENTUM CS/VP distributed control systems.

3. Does it support redundancy?
Yes, it can be used in redundant power configurations.

4. What devices does it power?
It powers I/O modules, controllers, and communication interfaces.

5. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.

6. Does it include protection functions?
Yes, it includes overvoltage, overcurrent, and short-circuit protection.

7. Is it a programmable module?
No, it is a fixed-function power supply module.

8. Can it be hot-swapped?
In redundant configurations, it supports replacement without full system shutdown.

9. What ensures stable output performance?
Industrial-grade regulation circuitry and thermal control design.

10. What is its role in a DCS system?
It serves as the core power backbone for system modules and controllers.

Look forward to your comments!Comment

Latest comments

Tags:	PW501-S1

Yokogawa Electric

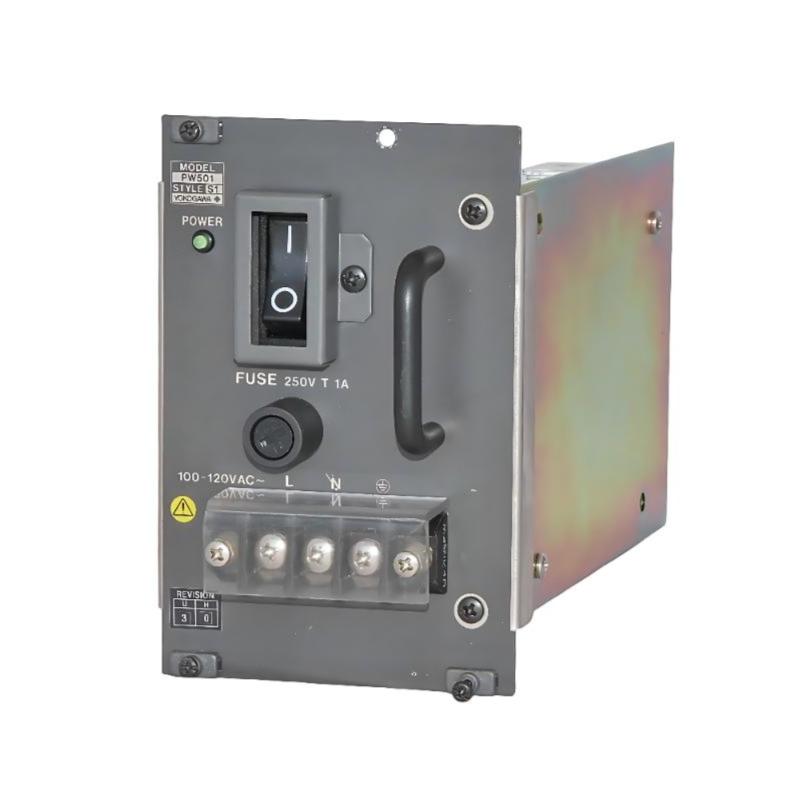

Yokogawa PW501-S1 Power Module
