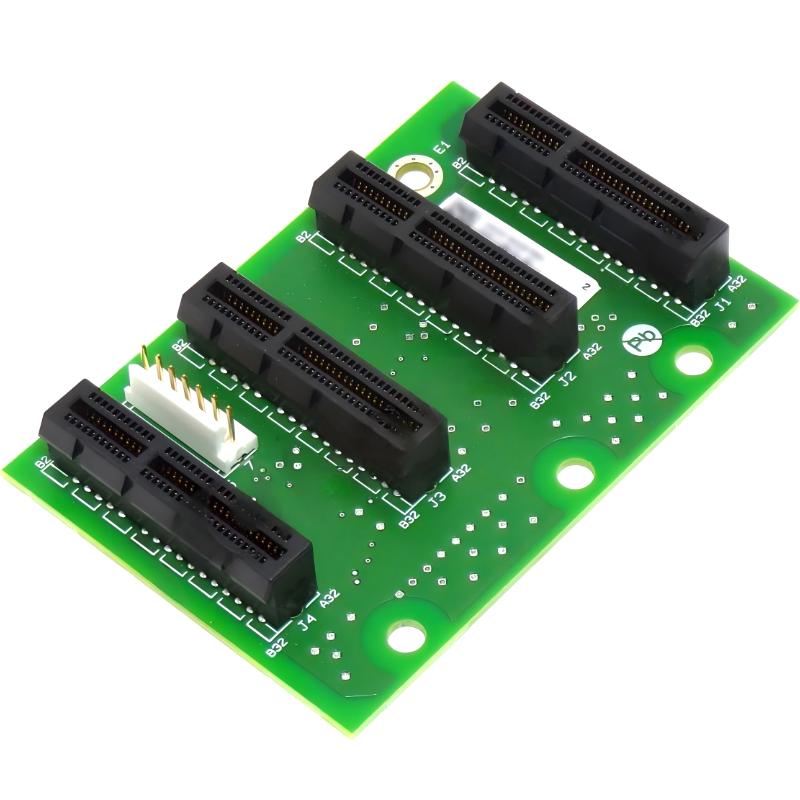

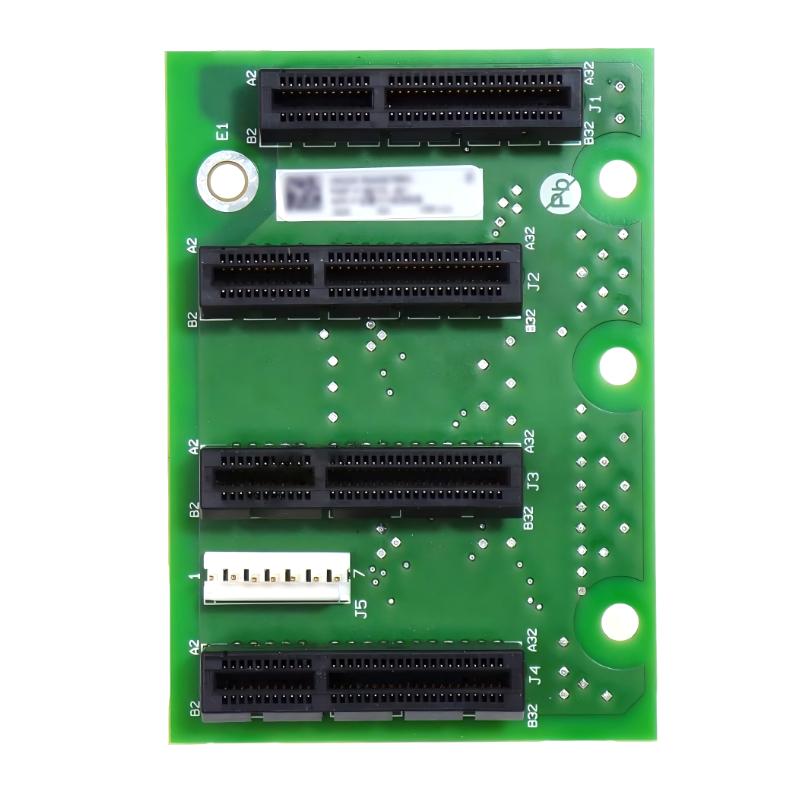

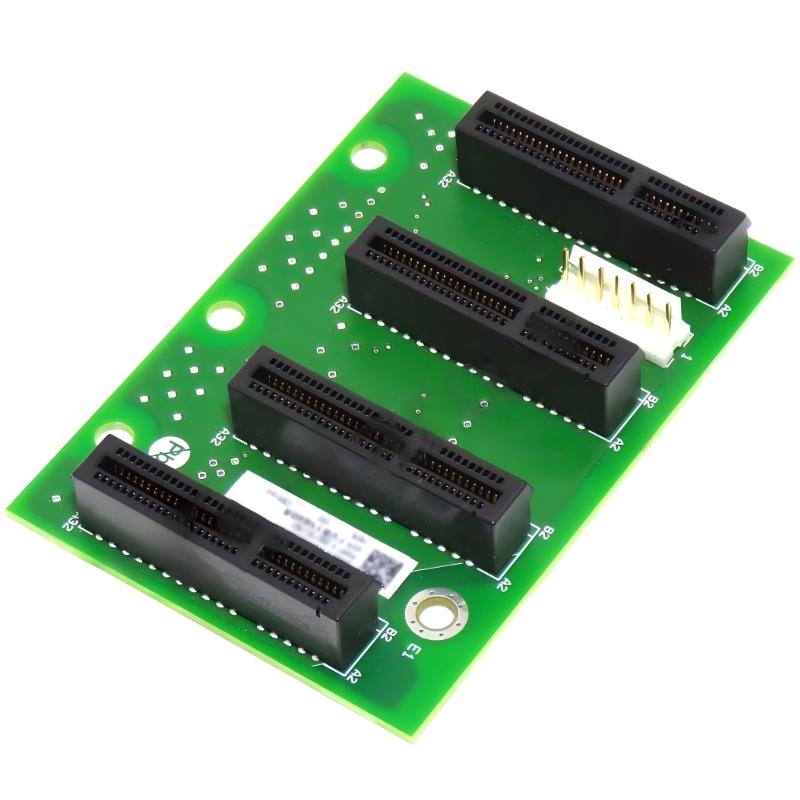

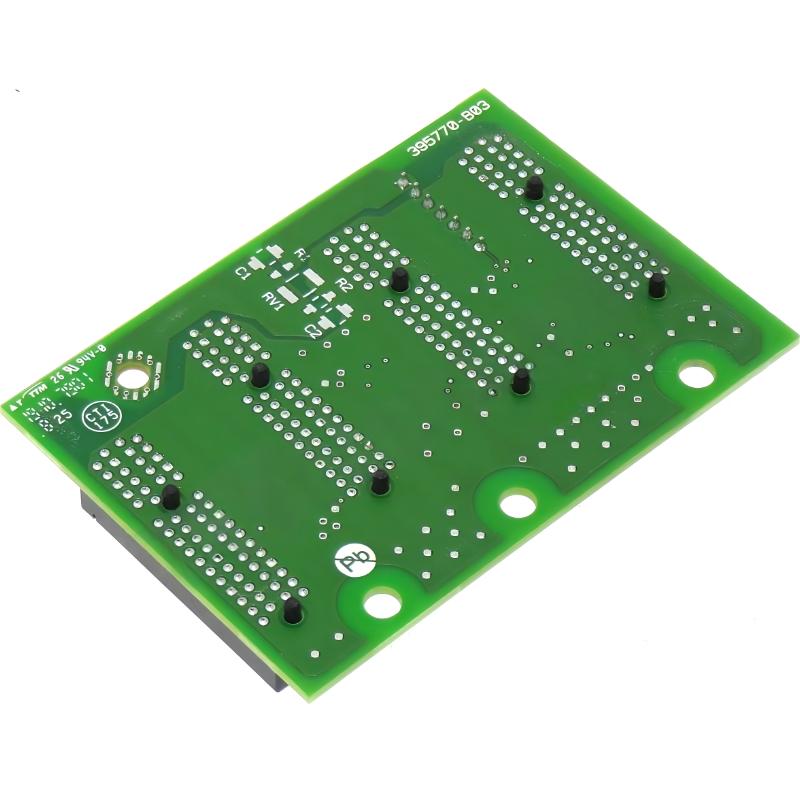

Allen Bradley SK-R1-BP1 PowerFlex 750 Backplane Interface Kit

Applications

• PowerFlex 750-series AC drive internal backplane communication setup
   Used to establish electrical and communication connection between control pod components and the drive backplane in PowerFlex 750 architectures.

• Drive control module replacement and maintenance
   Commonly installed during servicing or replacement of internal control boards in PowerFlex 753/755/750 drive systems.

• Industrial motor drive repair and retrofit operations
   Supports restoration of drive functionality in factory automation systems where internal interface boards are damaged or upgraded.

• OEM machine drive system configuration
   Used in packaged machinery where PowerFlex 750 drives are integrated as standard motion and speed control solutions.

• High-power industrial automation systems
   Ensures stable internal communication between power and control sections in heavy-duty variable frequency drive applications.

Key Advantages

• Reliable internal backplane communication interface
   Ensures stable data and control signal exchange between drive control components.

• Designed for PowerFlex 750 architecture compatibility
   Fully matched to Rockwell Automation 750-series drive mechanical and electrical design standards.

• Supports quick maintenance and module replacement
   Simplifies repair operations by enabling standardized internal interface replacement.

• Industrial-grade durability
   Built to withstand vibration, thermal cycling, and continuous-duty industrial environments.

• Compact and lightweight design
   Minimizes added mechanical load inside the drive assembly.

• Improves system uptime in drive service scenarios
   Reduces downtime by enabling fast restoration of internal drive communication pathways.

Technical FAQs

Q1: What is the main function of SK-R1-BP1?
A1: It is a backplane interface kit used inside PowerFlex 750 series drives to support internal communication between control components.

Q2: Which drives is it compatible with?
A2: It is used with PowerFlex 750-series drives such as PowerFlex 753 and PowerFlex 755 platforms.

Q3: Is it an external accessory?
A3: No, it is an internal drive component used inside the drive assembly.

Q4: Does it process control logic?
A4: No, it only supports internal communication between drive modules.

Q5: When is it typically replaced?
A5: During drive repair, maintenance, or internal board replacement procedures.

Q6: Does it require configuration?
A6: No software configuration is required; it is a passive hardware interface.

Q7: Is it compatible with other PowerFlex series?
A7: No, it is specifically designed for PowerFlex 750 architecture only.

Q8: What happens if it fails?
A8: The drive may lose internal communication and become non-operational.

Q9: Is it field-serviceable?
A9: Yes, but only by trained technicians following Rockwell service procedures.

Q10: Is it still actively produced?
A10: Yes, it remains an active Rockwell Automation component within the PowerFlex 750 platform.
