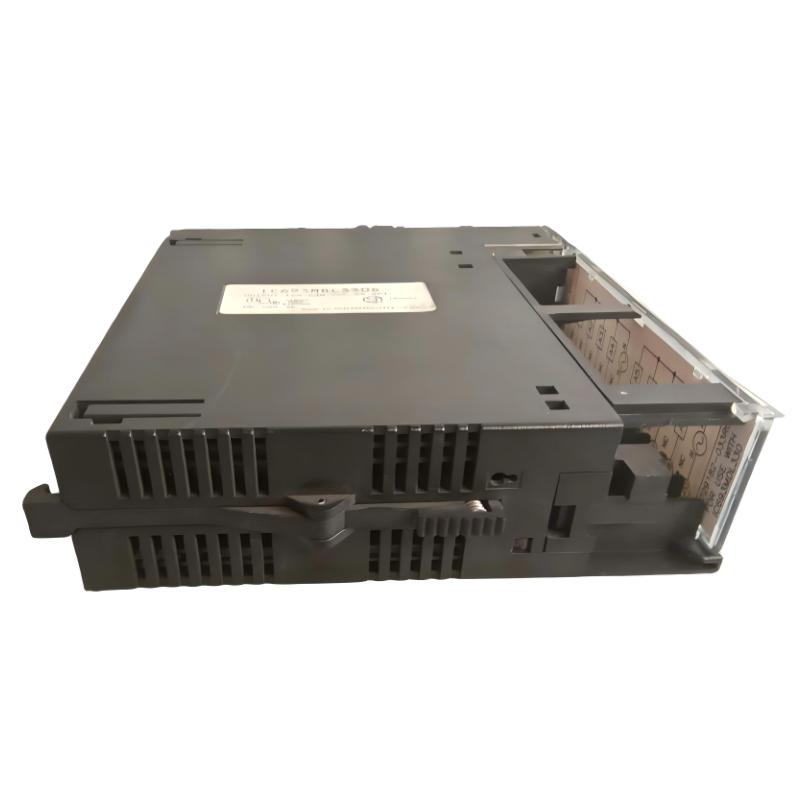

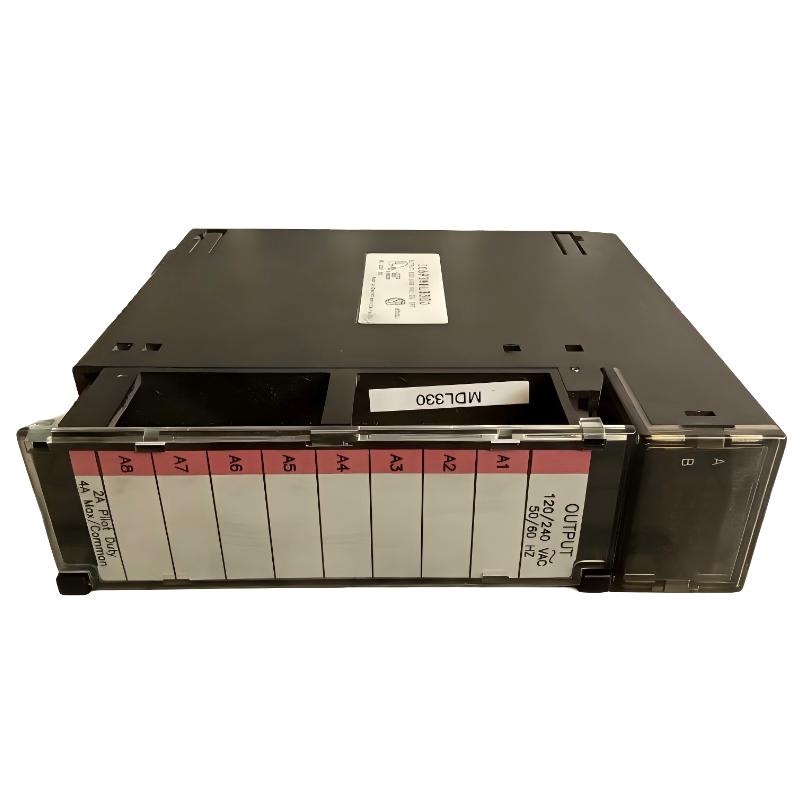

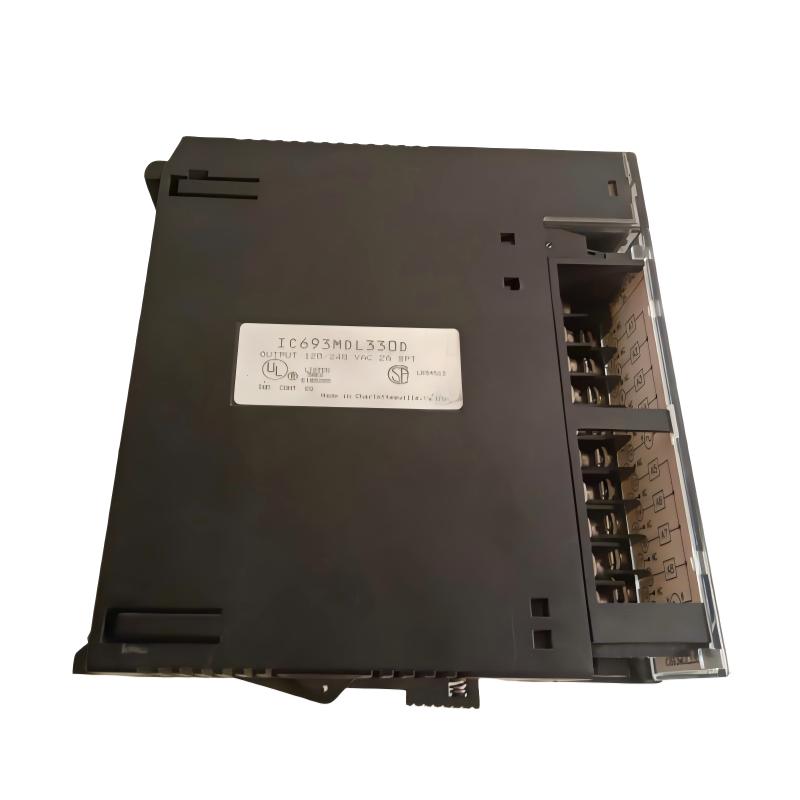

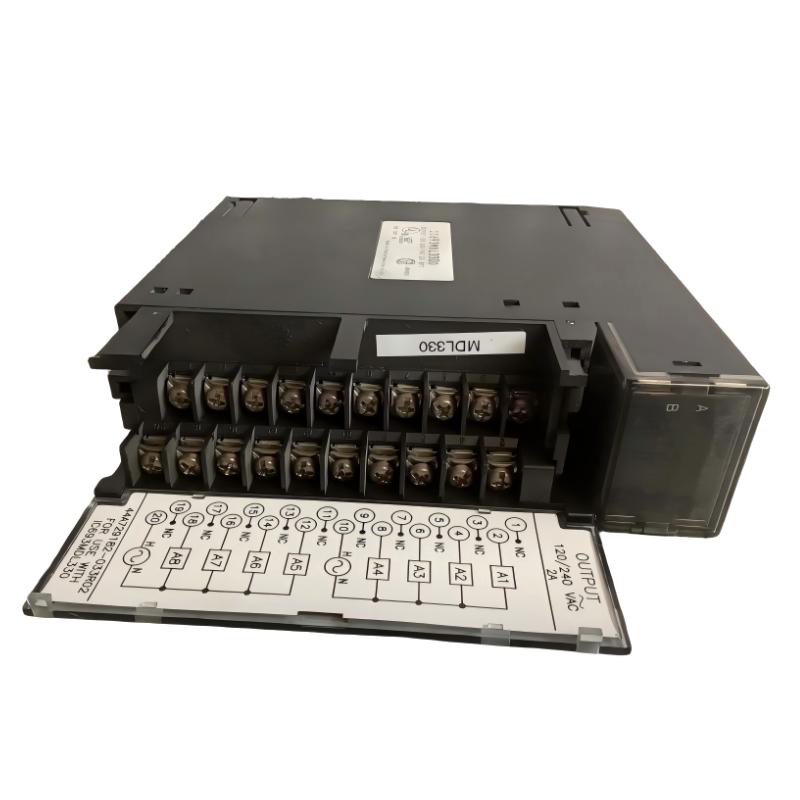

The GE IC694MDL330 is a discrete output module designed for GE Fanuc PACSystems RX3i PLC platforms. It provides high-density digital output capability, enabling precise control of field devices such as relays, solenoids, contactors, and indicator lamps.
Engineered for industrial-grade reliability, this module ensures stable switching performance and consistent output delivery in demanding automation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE Fanuc) |
| Model | IC694MDL330 |
| Series | PACSystems RX3i / Series 90-30 compatible |
| Module Type | Discrete Output Module |
| Output Channels | 32 channels |
| Output Type | TTL / 5 VDC logic-level outputs |
| Output Voltage | 5 VDC |
| Output Current | 25 mA per point (typical) |
| Output Configuration | Sourcing |
| Isolation | Group isolation |
| Backplane Current | ~0.3 A |
| Response Time | Fast switching (<1 ms typical) |
| Diagnostics | LED indicators per channel |
| Protection Features | Short-circuit protection (limited) |
| Mounting | Rack-mounted I/O module |
| Operating Temperature | 0°C to +60°C |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 131 × 35 × 140 mm |
| Weight | ~0.4 kg |
Its slim profile allows efficient use of rack space, making it ideal for high-density control systems.
System Role & Functional Behavior
The IC694MDL330 functions as a digital output interface between PLC logic and field devices:
- Converts PLC logic signals into physical output signals
- Controls relays, lamps, and low-power actuators
- Provides fast switching for time-critical applications
- Includes LED indicators for real-time output status monitoring
- Ensures reliable signal transmission in industrial environments
- Supports high-density output configurations within limited cabinet space
It plays a key role in executing control commands generated by the PLC CPU.
